Best Connectivit
y
www.LogiLink.

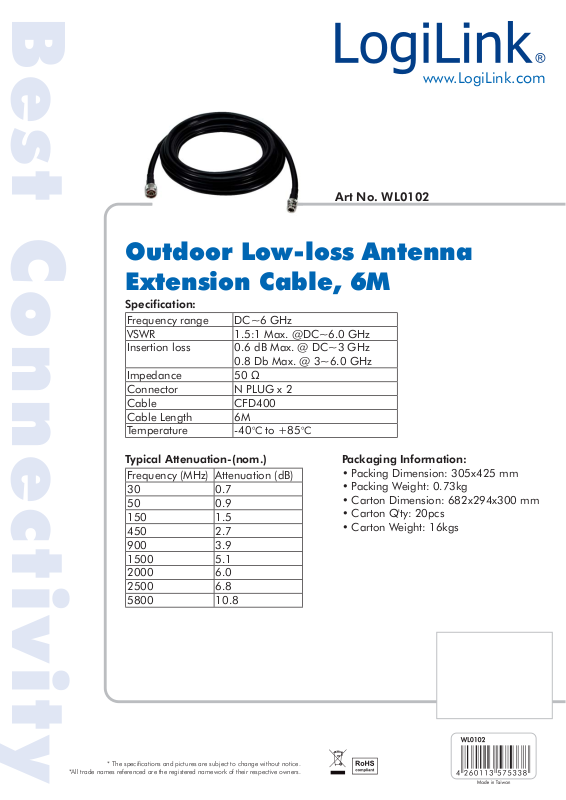

Art No. WL0102
Outdoor Low-loss Antenna
Extension Cable, 6M
Specification:
Frequency range DC~6 GHz
VSWR 1.5:1 Max. @DC~6.0 GHz
Insertion loss 0.6 dB Max. @ DC~3 GHz
0.8 Db Max. @ 3~6.0 GHz
Impedance 50 Ω
Connector N PLUG x 2
Cable CFD400
Cable Length 6M
Temperature -40
°C
to +85
°C
com
Typical Attenuation-(nom.)
Frequency (MHz) Attenuation (dB)
30 0.7
50 0.9
150 1.5
450 2.7
900 3.9
1500 5.1
2000 6.0
2500 6.8
5800 10.8
Packaging Information:
• Packing Dimension: 305x425 mm
• Packing Weight: 0.73kg
• Carton Dimension: 682x294x300 mm
• Carton Q'ty: 20pcs
• Carton Weight: 16kgs
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
