www.LogiLink.de

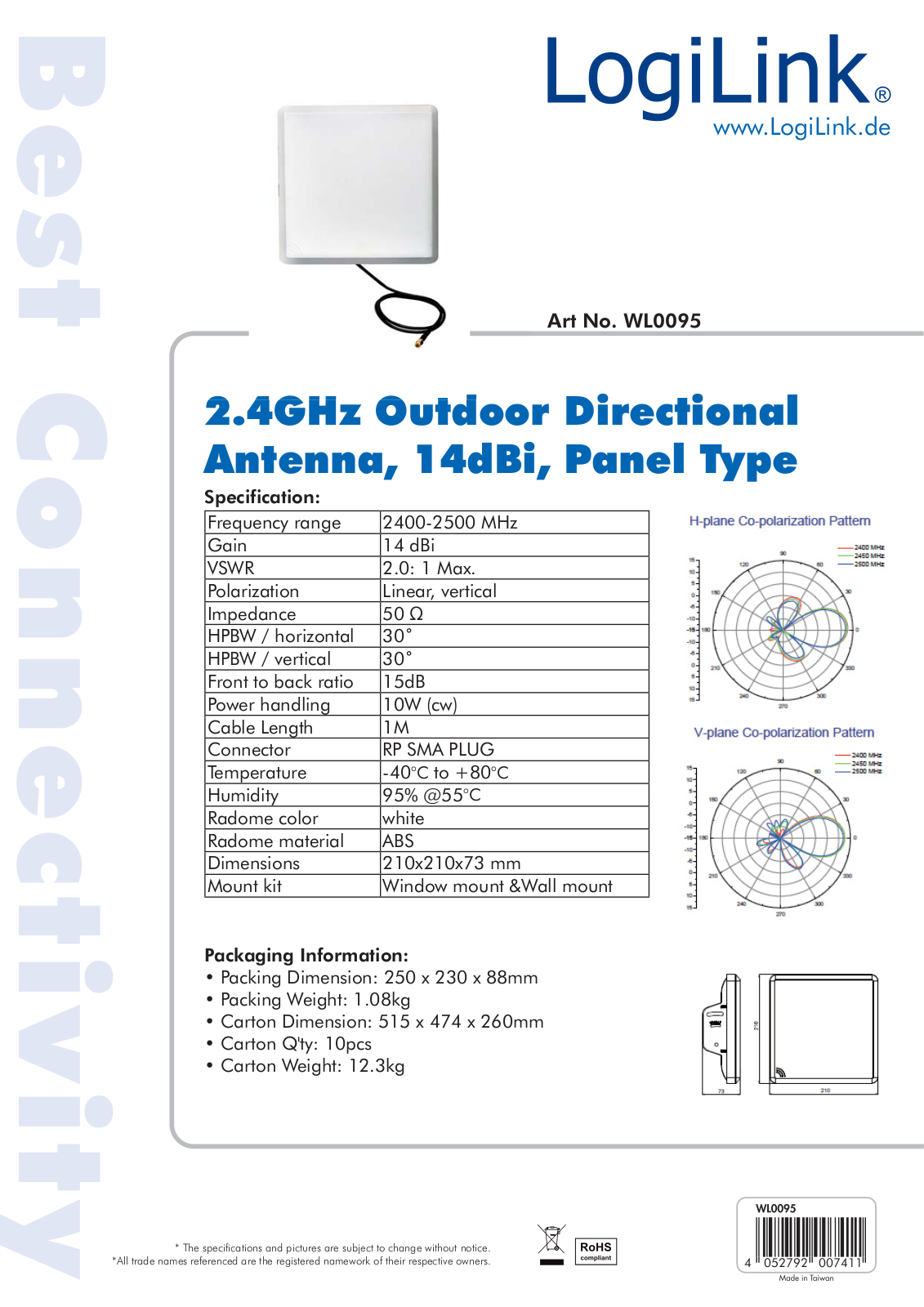

Art No. WL0095
2.4GHz Outdoor Directional
Antenna, 14dBi, Panel Type
Specification:
Frequency range 2400-2500 MHz
Gain 14 dBi
VSWR 2.0: 1 Max.
Polarization Linear, vertical
Impedance 50 Ω
HPBW / horizontal 30˚
HPBW / vertical 30˚
Front to back ratio 15dB
Power handling 10W (cw)
Cable Length 1M
Connector RP SMA PLUG
°C
Temperature -40
Humidity 95% @55
Radome color white
Radome material ABS
Dimensions 210x210x73 mm
Mount kit Window mount &Wall mount
to +80
°C
°C
Packaging Information:
• Packing Dimension: 250 x 230 x 88mm
• Packing Weight: 1.08kg
• Carton Dimension: 515 x 474 x 260mm
• Carton Q'ty: 10pcs
• Carton Weight: 12.3kg
* The specifications and pictures are subject to change without notice.
*All trade names referenced are the registered namework of their respective owners.
