Best Connectivit
y
www.LogiLink.de

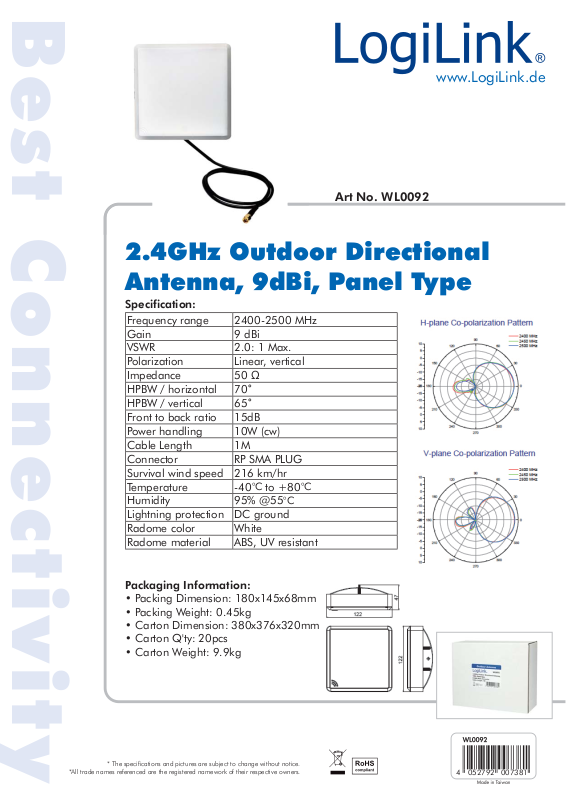

Art No. WL0092
2.4GHz Outdoor Directional
Antenna, 9dBi, Panel Type
Specification:
Frequency range 2400-2500 MHz
Gain 9 dBi
VSWR 2.0: 1 Max.
Polarization Linear, vertical
Impedance 50 Ω
HPBW / horizontal 70˚
HPBW / vertical 65˚
Front to back ratio 15dB
Power handling 10W (cw)
Cable Length 1M
Connector RP SMA PLUG
Survival wind speed 216 km/hr
°C
Temperature -40
Humidity 95% @55
Lightning protection DC ground
Radome color White
Radome material ABS, UV resistant
to +80
°C
°C
Packaging Information:
• Packing Dimension: 180x145x68mm
• Packing Weight: 0.45kg
• Carton Dimension: 380x376x320mm
• Carton Q'ty: 20pcs
• Carton Weight: 9.9kg
* The specifications and pictures are subject to change without notice.
*All trade names referenced are the registered namework of their respective owners.
