Art No. WL0036A
com

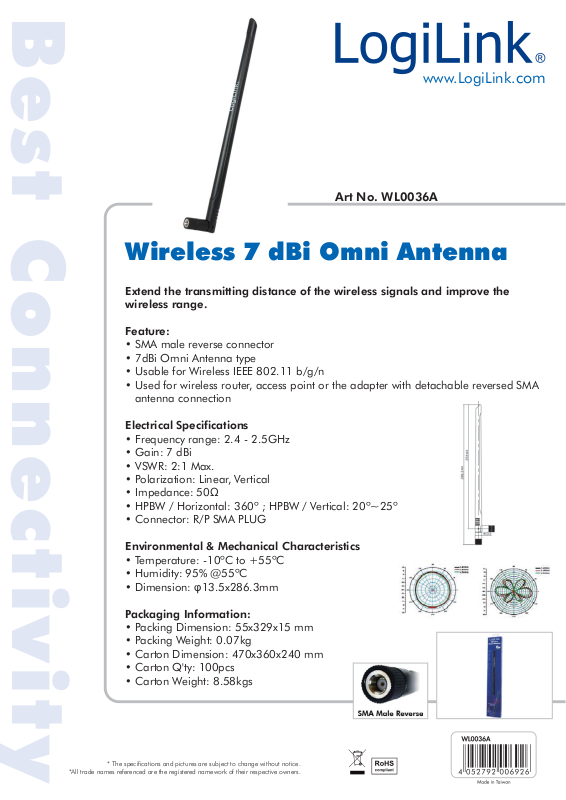

Wireless 7 dBi Omni Antenna
Extend the transmitting distance of the wireless signals and improve the
wireless range.
Feature:
• SMA male reverse connector
• 7dBi Omni Antenna type
• Usable for Wireless IEEE 802.11 b/g/n
• Used for wireless router, access point or the adapter with detachable reversed SMA
antenna connection
Electrical Specifications
• Frequency range: 2.4 - 2.5GHz
• Gain: 7 dBi
• VSWR: 2:1 Max.
• Polarization: Linear, Vertical
• Impedance: 50Ω
• HPBW / Horizontal: 360º ; HPBW / Vertical: 20º~25º
• Connector: R/P SMA PLUG
Environmental & Mechanical Characteristics
• Temperature: -10ºC to +55ºC
• Humidity: 95% @55ºC
• Dimension: φ13.5x286.3mm
Packaging Information:
• Packing Dimension: 55x329x15 mm
• Packing Weight: 0.07kg
• Carton Dimension: 470x360x240 mm
• Carton Q'ty: 100pcs
• Carton Weight: 8.58kgs
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
