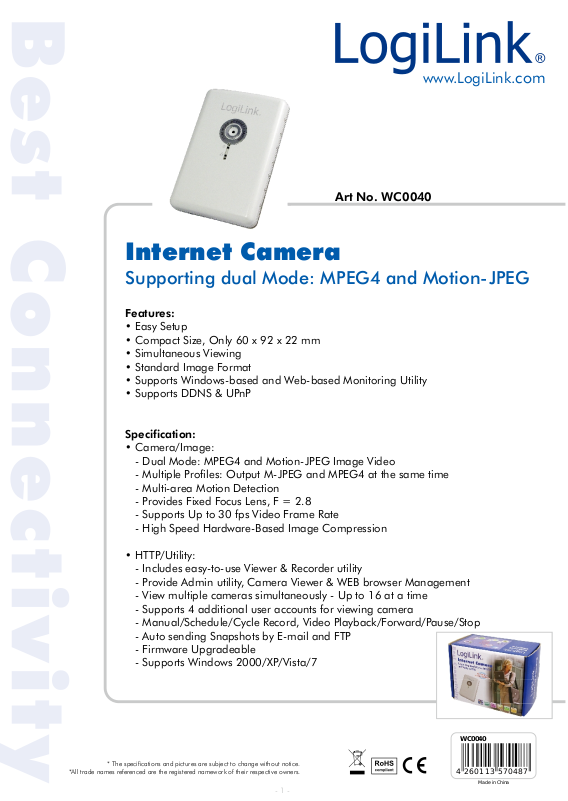

www.LogiLink.
com
Art No. WC0040
Internet Camera
Supporting dual Mode: MPEG4 and Motion-JPEG
Features:
• Easy Setup
• Compact Size, Only 60 x 92 x 22 mm
• Simultaneous Viewing
• Standard Image Format
• Supports Windows-based and Web-based Monitoring Utility
• Supports DDNS & UPnP
Specification:
• Camera/Image:
- Dual Mode: MPEG4 and Motion-JPEG Image Video
- Multiple Profiles: Output M-JPEG and MPEG4 at the same time
- Multi-area Motion Detection
- Provides Fixed Focus Lens, F = 2.8
- Supports Up to 30 fps Video Frame Rate
- High Speed Hardware-Based Image Compression
• HTTP/Utility:
- Includes easy-to-use Viewer & Recorder utility
- Provide Admin utility, Camera Viewer & WEB browser Management
- View multiple cameras simultaneously - Up to 16 at a time
- Supports 4 additional user accounts for viewing camera
- Manual/Schedule/Cycle Record, Video Playback/Forward/Pause/Stop
- Auto sending Snapshots by E-mail and FTP
- Firmware Upgradeable
- Supports Windows 2000/XP/Vista/7
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
- 1 -
WC0040
4 260113 570487
Made in China
www.LogiLink.
com
Art No. WC0040
Internet Camera
Supporting dual Mode: MPEG4 and Motion-JPEG
Hardware Specification
Flash 2MB Flash
RAM 16MB SDRAM
Image Sensor 0.3Mega pixel CMOS Sensor
Lens Fixed Focus, F=2.8
LAN Port 10/100M UTP Port x 1
Power 12V DC, 0.5A Power Adaptor
Dimension 92mm x 60mm x 22mm
Temperature 0~45°C
Humidity 10~90% (Non-Condensing)
Package Contents:
• 1 x IP Camera
• 1 x Power Adapter
• 1 x Camera Stand
• 1 x Cat5e Patch Cable
• 1 x Quick Installation Guide
• 1 x CD (Driver & Utility)
Packaging Information:
• Packing Dimension: 184x137x98 mm
• Packing Weight: 0.57kg
• Carton Dimension: 512x387x297 mm
• Carton Q'ty: 20pcs
• Carton Weight: 14.8kgs
WC0040
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
- 2 -
4 260113 570487
Made in China
