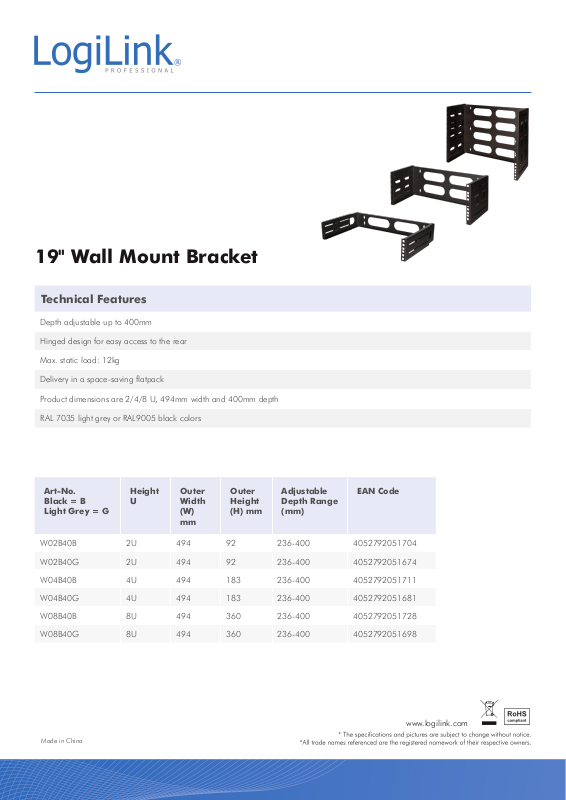

19" Wall Mount Bracket
Technical Features
Depth adjustable up to 400mm
Hinged design for easy access to the rear
Max. static load: 12kg
Delivery in a space-saving flatpack
Product dimensions are 2/4/8 U, 494mm width and 400mm depth
RAL 7035 light grey or RAL9005 black colors
Art-No.
Black = B
Light Grey = G
W02B40B 2U 494 92 236-400 4052792051704
W02B40G 2U 494 92 236-400 4052792051674
W04B40B 4U 494 183 236-400 4052792051711
W04B40G 4U 494 183 236-400 4052792051681
W08B40B 8U 494 360 236-400 4052792051728
W08B40G 8U 494 360 236-400 4052792051698
Made in China
Height UOuter
Width
(W)
mm
Outer
Height
(H) mm
Adjustable
Depth Range
(mm)
EAN Code
www.logilink.com
Technical Drawings
W02B40B/G
W04B40B/G
W08B40B/G
Made in China
www.logilink.com
Package Contents
19" Wall Mount Bracket x 1
M6 Mounting Set x 2 (W02B40B/G)
M6 Mounting Set x 4 (W04B40B/G)
M6 Mounting Set x 8 (W08B40B/G)
Packaging Information
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
510 x 100 x 44mm (W02B40B/G) / 510 x 188 x 44mm (W04B40B/G) / 510 x 368 x 44mm (W08B40B/G)
1.63kg (W02B40B/G) / 2.68kg (W04B40B/G) / 4.85kg (W08B40B/G)
520 x 215 x 250mm
10 pcs (W02B40B/G) / 5 pcs (W04B40B/G) / 2 pcs (W08B40B/G)
17.3kg (W02B40B/G) / 14.4kg (W04B40B/G) / 10.7kg (W08B40B/G)
Made in China
www.logilink.com
