Do not throw the appliance away with the normal
household waste at the end of its life, but hand it in
at an official collection point for recycling. By doing
this you will help to preserve the environment.
1.0 Safety Instructions
Put the Device always on a stable and straight Surface. In case
of falling it can be damaged.
Don’t place the Device into direct Sunlight or in Places with high
Temperature. This can damage the Device or shorten his
average useful Life.
Don’t place it in the near of Heat Sources, like Radiators or other
heat producing Devices.
Don’t expose the Device to Rain, Water, Wetness or high Humidity.
Don’t place it in the Bathroom or the Kitchen in the near of a Sink.
Avoid the direct Contact with Water.
Don’t try to open the Device.
Prior to the first use of our product make a backup of your data.
We are not liable for any loss of data, unless you can accuse us
intention or gross negligence.
In any case, liability for loss of data is limited to the effort that is
necessary to restore from existing backup copies.

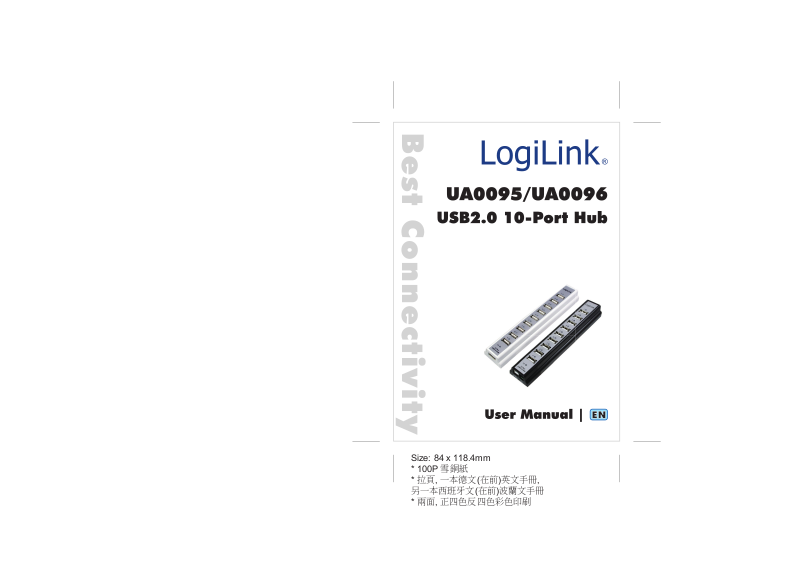

Congratulations to the Purchase of UA0095/UA0096 !
Please read the Manual and Safety Instructions before using the
product for the first time. Otherwise damage can be the result.
- 1 -
2.0 Introduction
2.1 Specification:
Compliant to USB1.1/2.0 Specification
Supports USB2.0 High-Speed up to 480Mbps
Supports 1 x Up-stream port and 10 x Down-stream ports
Equipped with over-current Detection & Protection
Connects up to 127 USB devices
LED status indicators
With external power adapter (5V, 3.5A)
Plug & Play
Supports Windows 98SE/ME/2000/XP/2003/Vista/7, and Mac
OS 10.x or above
2.2 Package Content:
1 x 10-Port USB Hub
1 x Power Adapter
1 x USB Cable
1 x User Manual
- 2 -
3.0 Connection
USB Installation
Simply plug the Hub into an available USB port.
The computer operating system will automatically detect the
new device and install the proper driver(s).
Operation
To connect with PC USB Port.
Diagram
The CE mark confirmed that this product meets the
main requirements of the Directive 2004/108/EC and
2006/95/EC of the European Parliament and the
Council of Europe concerning telecommunications
and terminals regarding the Safety and health of
users and of electro-magnetic interference
compliance. The CE has been demonstrated. These
statements are deposited by the manufacturer.
