Best Connectivit
y
UA
www.LogiLink.
Art No. UA0074Art No.
com

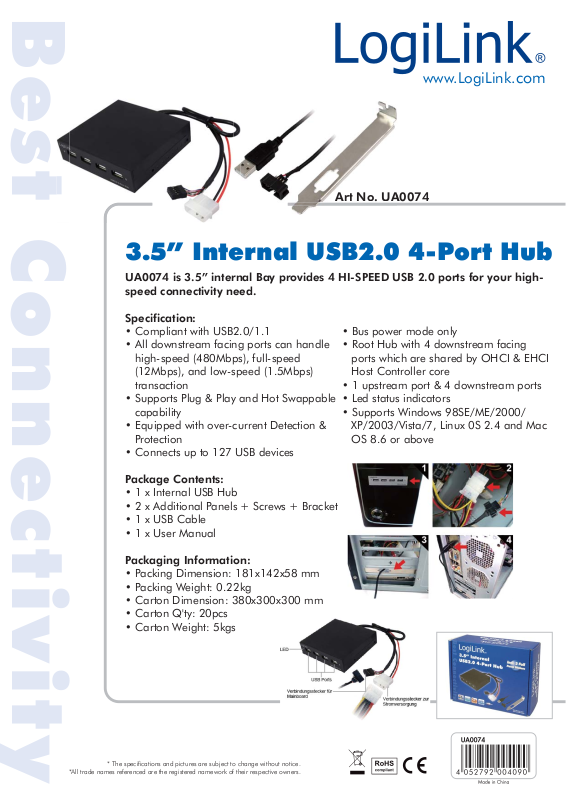

3.5” Internal USB2.0 4-Port Hub
UA0074 is 3.5” internal Bay provides 4 HI-SPEED USB 2.0 ports for your highspeed connectivity need.
Specification:
• Compliant with USB2.0/1.1
• All downstream facing ports can handle
high-speed (480Mbps), full-speed
(12Mbps), and low-speed (1.5Mbps)
transaction
• Supports Plug & Play and Hot Swappable
capability
• Equipped with over-current Detection &
Protection
• Connects up to 127 USB devices
• Bus power mode only
• Root Hub with 4 downstream facing
ports which are shared by OHCI & EHCI
Host Controller core
• 1 upstream port & 4 downstream ports
• Led status indicators
• Supports Windows 98SE/ME/2000/
XP/2003/Vista/7, Linux 0S 2.4 and Mac
OS 8.6 or above
Package Contents:
• 1 x Internal USB Hub
• 2 x Additional Panels + Screws + Bracket
• 1 x USB Cable
• 1 x User Manual
Packaging Information:
• Packing Dimension: 181x142x58 mm
• Packing Weight: 0.22kg
• Carton Dimension: 380x300x300 mm
• Carton Q'ty: 20pcs
• Carton Weight: 5kgs
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
