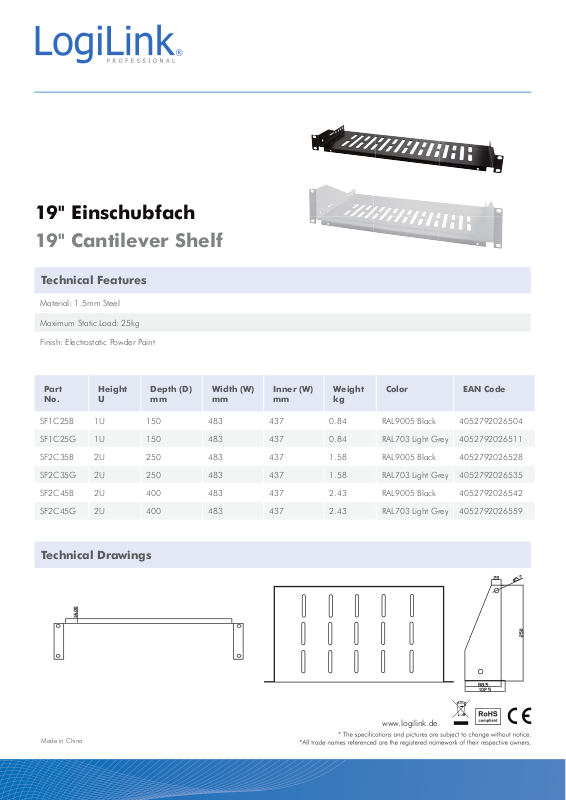

19" Einschubfach
19" Cantilever Shelf
Technical Features
Material: 1.5mm Steel
Maximum Static Load: 25kg
Finish: Electrostatic Powder Paint
Part
No.
SF1C25B 1U 150 483 437 0.84 RAL9005 Black 4052792026504
SF1C25G 1U 150 483 437 0.84 RAL703 Light Grey 4052792026511
SF2C35B 2U 250 483 437 1.58 RAL9005 Black 4052792026528
SF2C35G 2U 250 483 437 1.58 RAL703 Light Grey 4052792026535
SF2C45B 2U 400 483 437 2.43 RAL9005 Black 4052792026542
SF2C45G 2U 400 483 437 2.43 RAL703 Light Grey 4052792026559
Height
U
Depth (D) mmWidth (W) mmInner (W) mmWeight
kg
Color EAN Code
Technical Drawings
Made in China
www.logilink.de
Package Contents
1 x 19" Cantilever Shelf
Packaging Informations
530 x 80 x170mm (SF1C25G, SF1C25B)
Packing Dimension
Packing Weight
Carton Dimension
530 x 130 x 270mm (SF2C35G, SF2C35B)
530 x 130 x 430mm (SF2C45G, SF2C45B)
0.9kg (SF1C25G, SF1C25B)
1.3kg (SF2C35G, SF2C35B)
2.9kg (SF2C35G, SF2C35B)
460 x 545 x 190mm (SF1C25G, SF1C25B)
680 x 545 x 295mm (SF2C35G)
690 x 550 x 305mm (SF2C35B)
680 x 545 x 445mm (SF2C45G, SF2C45B)
Carton Q‘ty
Carton Weight
Made in China
5pcs
4.65kg (SF1C25G, SF1C25B)
6.56kg (SF2C35G, SF2C35B)
14.67kg (SF2C45G, SF2C45B)
www.logilink.de
