Print Server
User’s Manual
Version: 2.0
(January, 2006)
COPYRIGHT
Copyright ©2006/2007 by this company. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or by
any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of this company.
FCC COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
DISCLAIMER
This company makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties, merchantability or fitness for any particular purpose. Any software
described in this manual is sold or licensed "as is". Should the programs prove
defective following their purchase, the buyer (and not this company, its distributor,
or its dealer) assumes the entire cost of all necessary servicing, repair, and any
incidental or consequential damages resulting from any defect in the software.
Further, this company reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation to notify any
person of such revision or changes.
CONTENTS
1. INTRODUCTION.................................................................1
1.1 Product Introduction......................................................... 2
1.2 Product Package ............................................................. 3
1.3 Network Printing Architecture..........................................4
1.3.1 Print Server Network Functions..................................................... 5
1.3.2 Network Printing Functions for Clients................................ ... ...... 5
1.3.3 Network Printing Functions for Network Server........................... 8
1.4 Network Printing Environment......................................... 9
1.5 Contents of the User’s Manual ...................................... 11
1.6 Firmware & Printing Function ........................................ 13
2. HARDWARE INSTALLATION .........................................14
3. WINDOWS PEER-TO-PEER NETWORK ........................15
3.1 System Architecture....................................................... 16
3.2 Administrator Installation and Setup.............................. 18
3.3 Administrator Utilities..................................................... 25
3.4 Client Installation and Setup..........................................26
3.5 Client Utilities................................................................. 31
3.5.1 Network Ports Quick Setup .........................................................31
3.5.2 Remote Ports (Utility).................................................................. 33
3.6 Windows Add Printer Procedure.................................... 36
4. WINDOWS NT/2000/2003 NETWORK.............................40
4.1 System Architecture....................................................... 41
4.2 Windows NT/2000/2003 Server Installation and Setup .42
4.3 User Installation and Setup............................................ 44
5. NETWARE NETWORK ....................................................45
5.1 System Architecture....................................................... 46
5.2 NetWare 3.x/4.x/5.x Installation & Setup ....................... 48
5.2.1 Installation Using PCONSOLE...................................................48
6. UNIX SYSTEM NETWORK..............................................52
6.1 Introduction.................................................................... 53
6.2 Enable Print Server’s TCP/IP Support........................... 54
6.3 Setup Print Server’s IP Address.................................... 55
6.3.1 DHCP...........................................................................................55
6.3.2 BOOTP ........................................................................................55
6.4 Verify Print Server’s IP Address .................................... 58
6.5 Configure Remote LPD Printing on the Host................. 59
7. CONFIGURATION UTILITY.............................................62
7.1 Introduction.................................................................... 63
7.2 Search for All Available Print Server.............................. 65
7.3 Status of Print Server..................................................... 66
7.4 Setup the Print Server ................................................... 68
7.5 General Configuration.................................................... 70
7.6 TCP/IP Configuration..................................................... 71
7.7 Netware Print Server Configuration...............................73
7.8 AppleTalk Configuration ................................................ 74
7.9 SNMP Configuration...................................................... 75
7.10 SMB Configuration......................................................... 76
7.11 System Configuration .................................................... 77
7.12 Wizard............................................................................ 78
7.13 Report............................................................................ 82
8. WEB MANAGEMENT.......................................................83
8.1 Introduction.................................................................... 84
8.2 Login.............................................................................. 85
8.3 Device Status................................................................. 86
8.3.1 System.......................................................................................... 86
8.3.2 Printer........................................................................................... 87
8.3.3 TCP/IP.......................................................................................... 88
8.3.4 SMB.............................................................................................89
8.3.5 SNMP...........................................................................................90
8.3.6 NetWare.......................................................................................91
8.3.7 AppleTalk ....................................................................................92
8.4 Setup Wizard.................................................................93
8.4.1 System.......................................................................................... 93
8.4.1.1 Advanced Settings .................................................................94
8.4.2 TCP/IP.......................................................................................... 95
8.4.3 SMB.............................................................................................96
8.4.4 SNMP...........................................................................................97
8.4.5 NetWare.......................................................................................98
8.4.6 AppleTalk ....................................................................................99
8.4.7 Save Settings..............................................................................100
8.5 System Tools............................................................... 101
8.5.1 Load Default ..............................................................................101
8.5.2 Upgrade Firmware from Browser..............................................102
9. IPP PRINTING.................................................................103
9.1 Introduction.................................................................... 104
9.2 System Setup ................................................................ 105
9.2.1 Print Server Side........................................................................105
9.2.2 Client Side.................................................................................. 105
10. WINDOWS XP SP2 SETUP ..........................................110
1. Introduction
1
1.1 Product Introduction
Thank you for purchasing and using our print server.
This print server allows your printer to become a shared
device on the network. It offers printing flexibility and
manageability on your Local Area Network at an extremely
low cost and with an absolute minimum setup and
maintenance required.
This print server provides an Ethernet network port
(10/100Mbps Ethernet) and one print port for printer.
This print server supports IPX/SPX, NetBEUI, TCP/IP
and AppleTalk protocols. It is the best network printing
solutions for various common network operating systems
such as Windows 95/98SE/Me/NT/2000/XP/2003, NetWare,
Unix/Linux and MAC OS, etc.
With the help of Installation Wizard, you can easily
and instantly complete the settings for the printing
environment, and start enjoying the fantastic features
provided by the print server.
In the following chapters, we will introduce in detail
the printing features, installation methods, and system
configuration for different network environments.
If you would like to set up and install print server
quickly, please refer to the Quick Installation Guide that
comes along with this print server.
2
1.2 Product Package
This package contains the following components:
One Print Server
One Power Adapter
One Quick Installation Guide
One CD-ROM (Including all the software utilities,
drivers and User’s Manual)
3
1.3 Network Printing Architecture
This section illustrates how print server functions and
operates on the network. Before you install and use print
server, it is strongly recommended that you read this
section completely, and select only the chapters you need
according to your network operating system by “Contents
of the User’s Manual” in next section.

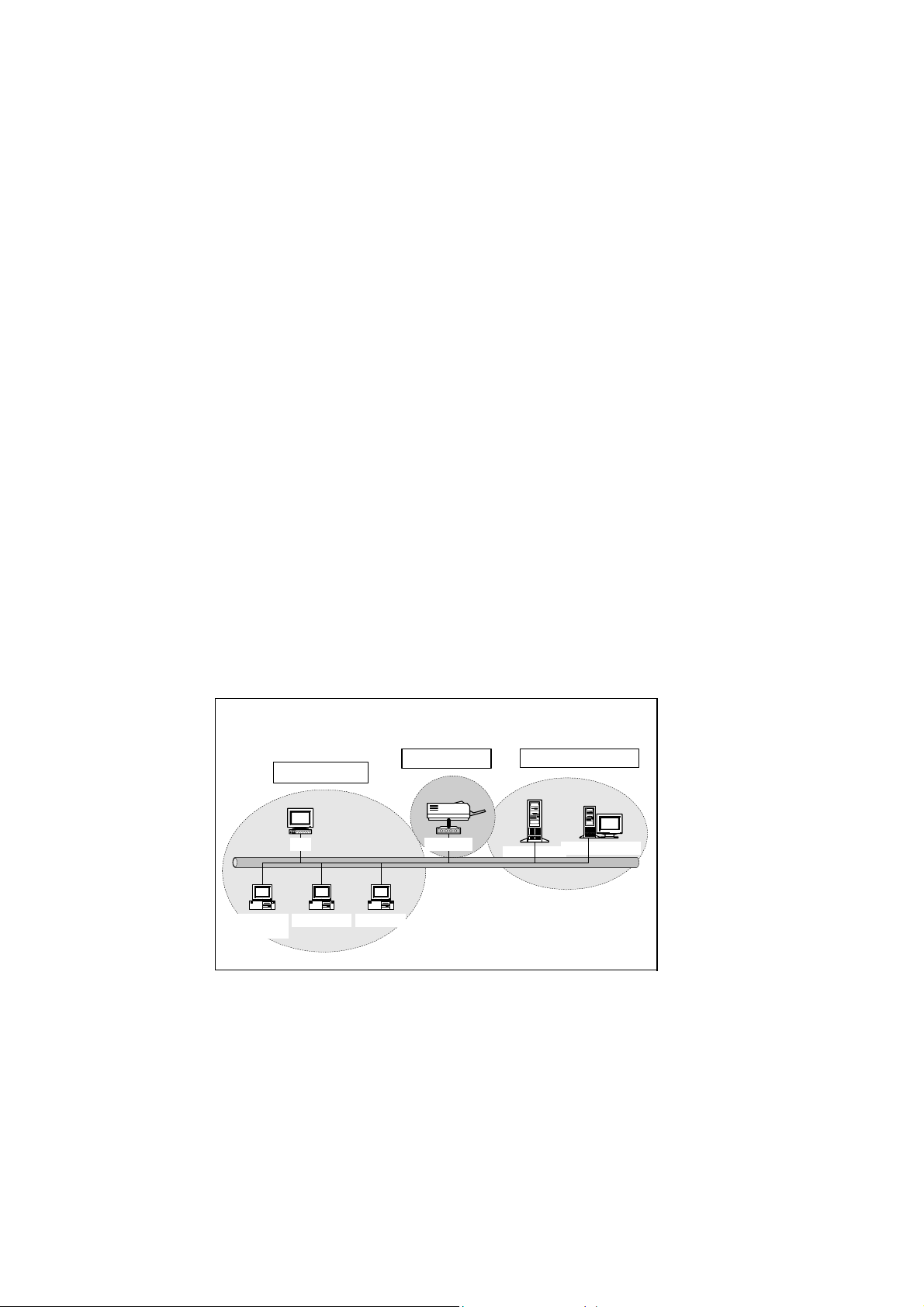

This section will first introduce the role every
component plays in the network-printing environment.
Print Server
Client User
Network Server (optional)
Network Printing Environment
Print Server
NetWare Server
Workstation
Client User
Unix Print Server
Windows 2000
Windows 98Windows NT
Network Server
Windows NT Server
4
1.3.1 Print Server Network Functions
Print Server
Unix Print Server
Windows 2000
Worksta tion
Windows 98Windows NT
NetWare Server
Windows NT Server
Because print server supports IPX/SPX, NetBEUI,
TCP/IP and AppleTalk network protocols, any networked
computer can directly print to the print server from any of
its installed protocol.
1.3.2 Network Printing Functions for Clients
Client User
Unix Print Server
Windows 98Windows NT
Windows 2000
Worksta tion
NetWare Server
Windows NT Server
5
Common operating systems for clients are classified as
following:
Windows 95/98SE/Me/NT/2000/XP/2003
Our print server system provides PTPP (Peer-to-Peer
Printing) driver and utilities for Windows
95/98SE/Me/NT/2000/XP/2003 users. PTPP (Peer-to-Peer
Printing) supports TCP/IP protocol.
In the client installation procedure, after PTPP (Peerto-Peer Printing Driver) is installed into Windows, the
system will automatically (manual configuration is also
allowed) search all the print servers on the network, and
then add their printing ports into Windows’ printing port
(see below).
6
PTPP
Windows 98
P1
Print Server
MIS-2
P1
P2
P3
Print Server
MIS-1
UNIX / Linux
UNIX (include HP/UX, SCO Unix, SunOS, Solaris,
Unixware DECUnix, IBM AIX and others) and Linux use
the system-standard LPR to print through print server.
MAC OS
MAC OS can use the system-standard AppleTalk
network to print through print server.
7
1.3.3 Network Printing Functions for Network Server
Network Server
Unix Print Server
Windows 2000
Worksta tion
Windows 98Windows NT
NetWare Server
Windows NT Server
Common network servers are classified as following:
Windows NT/2000/2003
Our print server system provides PTPP (Peer-to-Peer
Printing) driver and utilities for Windows NT/2000/2003.
After PTPP is installed, the server can directly print
through print server. Adding this printing function into
Windows NT/2000/2003 Server allows print queue, user
authority management, and many other advanced features to
be used.
NetWare 3.x/4.x/5.x
In NetWare environment, print server offers various
printing modes like print queue, remote printer, etc.
8
1.4 Network Printing Environment
Common network environment are classified as
following:
Windows Peer-to-Peer Network
The client’s PTPP driver will use TCP/IP protocol to
print through print server.
Windows NT/2000/2003 Network
Network printing function will become available after
PTPP driver is installed into Windows NT/2000/2003.
Adding this printing function into Windows NT/2000/2003
Server allows print queue, user authority management, and
many other advanced features to be used.
9
NetWare Network (see below)
10
1.5 Contents of the User’s Manual
Chapter 2 explains print server’s hardware installation
and configuration. It is strongly recommended for you to
read.
The following chapters introduce:
Chapter 3. Windows Peer-to-Peer Network
Chapter 4. Windows NT/2000/2003 Server-Based
Network
Chapter 5. NetWare Network
Chapter 6. UNIX System Network
You may select the appropriate chapters and sections
to read depending on your network printing’s requirement.
Chapter 7 and chapter 8 introduce print server’s
management and configuration utilities on Windows and
Web Browser’s environment respectively. You may select
the appropriate management utility according to the
administrator’s computer platform.
Chapter 9 introduces Print Server’s IPP Printing
function and setup procedure. The IPP Printing provides a
convenient way to print documents across the Internet by
the IPP protocol.
Chapter 10 introduces how to deal with the problem
that if you can’t find any print server listed on the
11
“Available Ports” in “Network Ports Quick Setup” in
Windows XP SP2.
12
1.6 Firmware & Printing Function
The print server provides a complete network printing
solution. The feature set is listed below:
PTPP (Peer-to-Peer-Printing)
TCP/IP (LPR)
IPP Printing
NetWare Bindery Printing
AppleTalk
SMB Printing
13
2. Hardware Installation
1. Unpack the print server package and verify that all
the items listed in the section 1.2 are provided.
2. Connect the print server to the printer you want to
share on the network.
3. Connect the print server to your network by attached
the network cable to the UTP port of the print server.
4. Connect the power adapter to the print server. The
print server will perform the Power-On-Self-Test (POST)
after it is powered on. During the POST, the Status and
Ready LEDs will be on. When the LEDs are unlighted, the
print server is ready.
NOTE1: MUST use the power adapter shipped with the print
server, do NOT use any other power adapter from any
sources.
NOTE2: To prevent the compatibility problem between print
server and a few printer, it is recommended that you
power on the print server before the printer.
14
3. Windows Peer-to-Peer
Network
15

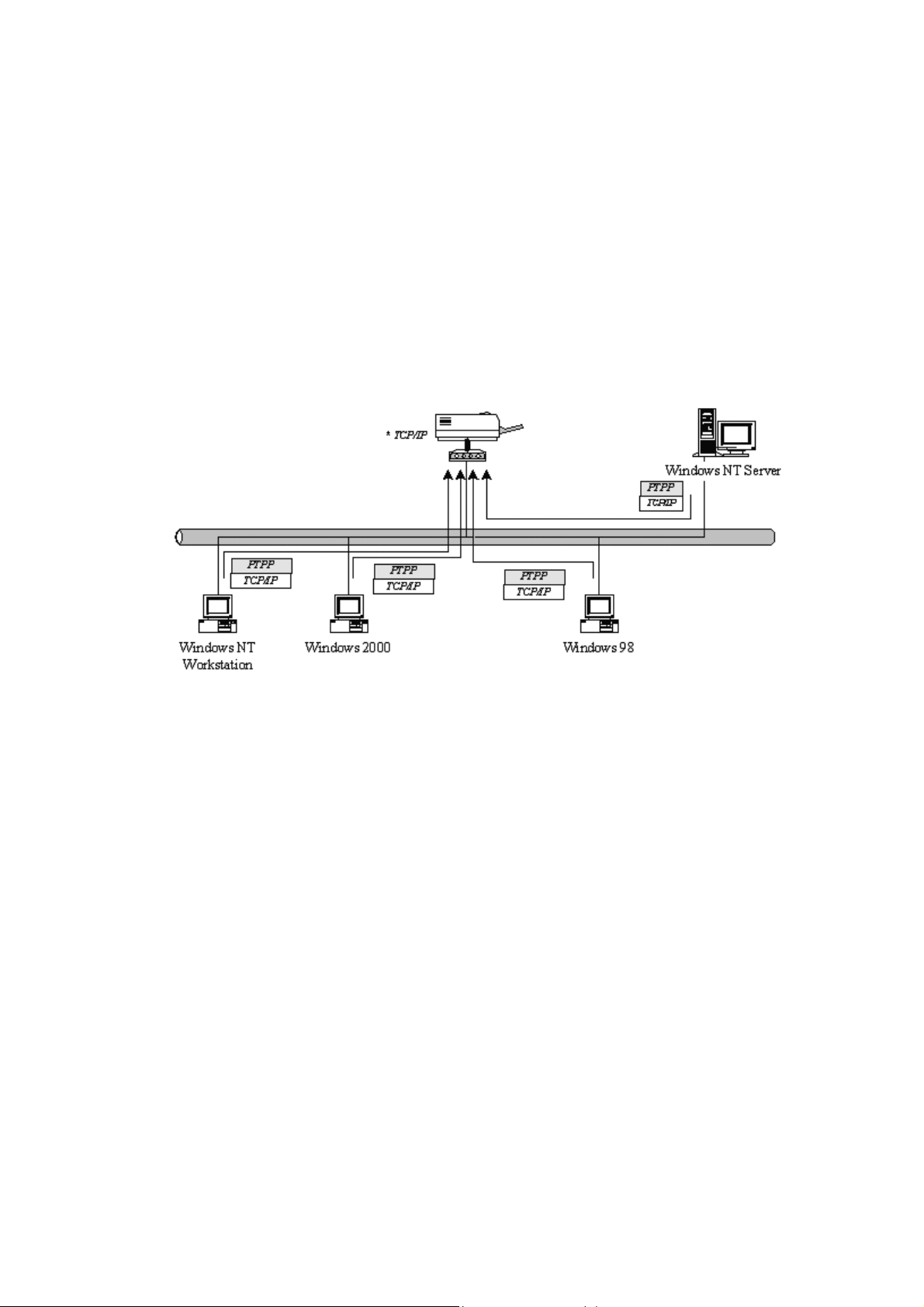

3.1 System Architecture
Print server supports Windows Peer-to-Peer network
printing mode, which is suitable for most medium and sma ll
network environments. Through quick and simple
installation procedure, users can immediately enjoy the
convenience of network printing.
Installation procedure is separated into following two
parts:
1. Administrator Installation and Setup (refer to
section 2 for more detailed information).
System administrators must:
Install administrator’s utilities into his/her
computer.
Configure print server from administrator’s
configuration utility.
16
2. Client Installation and Configuration (refer to
section 3 for more detailed information).
Client users must install Windows PTPP driver (Peerto-Peer Printing) for network printing.
In addition, after PTPP is installed, the system will
automatically search for all print servers on the network,
and add the printing port of the print servers into Windows’
printing port (refer to Network Printing Architecture in
section 1.4 for more detailed information).
17
3.2 Administrator Installation and Setup
The Administrator Installation can be performed on
Windows 95/98SE/Me/NT/2000/XP/2003 with the same
user interface. Before the installation, please verify that
your network protocol is installed on your PC (TCP/IP, IPX
and/or NetBEUI). It will be helpful in your installation
process.
1. Insert the CD shipped along with the print server
into your CD-ROM drive. The Autorun.exe program should
be executed automatically. If not, run Autorun.exe
manually from CD-ROM drive’s root directory.

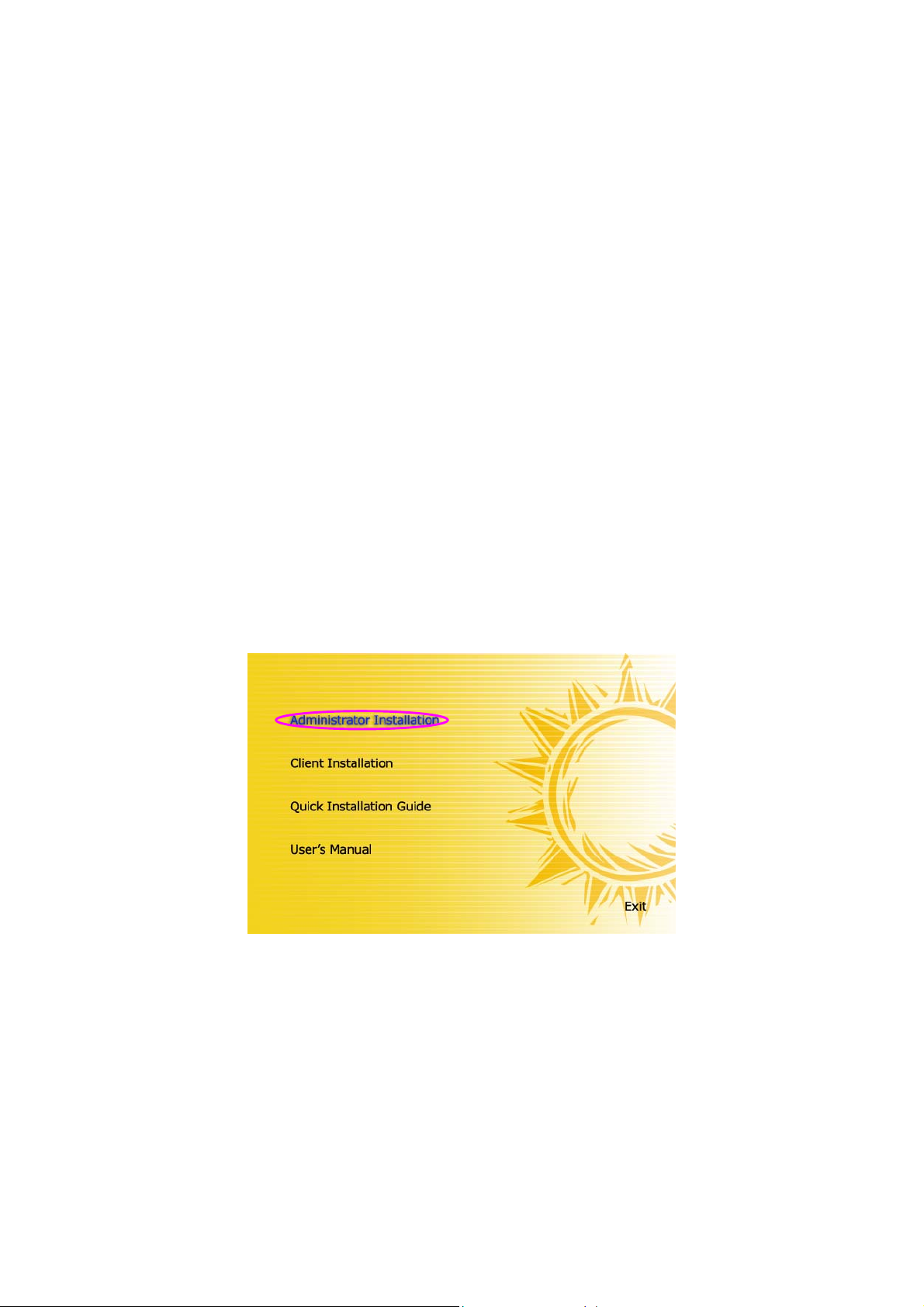

2. The “Installation Manager” will be displayed on the
screen as following. Click “Ad ministrator Installation”.
18
3. The “Utilities Setup” window will be displayed.
Click “Next”.
4. Click “Next” to install the utilities in the default
folder or click “Browse” to specify the destination folder
where you would like to install the utilities.
19
5. Select the components you want to install. It is
highly recommended to install all provided components.
Click “Next” to continue.
6. Specify the program folder where the program icons
will be added to, click “Next”.
20
7. The system will start to install the utilities
automatically.
8. You have completed the installation phase and
prepare to configure the Print Server. The “Choose Print
Server” will list all Print Servers within the network. Selec t
the Print Server you would like to configure and click
“Next”.
21
NOTE 1: If this is the first time you configure the Print Server,
NOTE 2: The list can only display the devices from the same
9. Specify a recognizable name for the Print Server
and click “Next”.
the “Print Server Name” is the last 6-digit of MAC ID
with prefix “PS”. Please check the MAC ID on the
print server.
manufacturer.
22

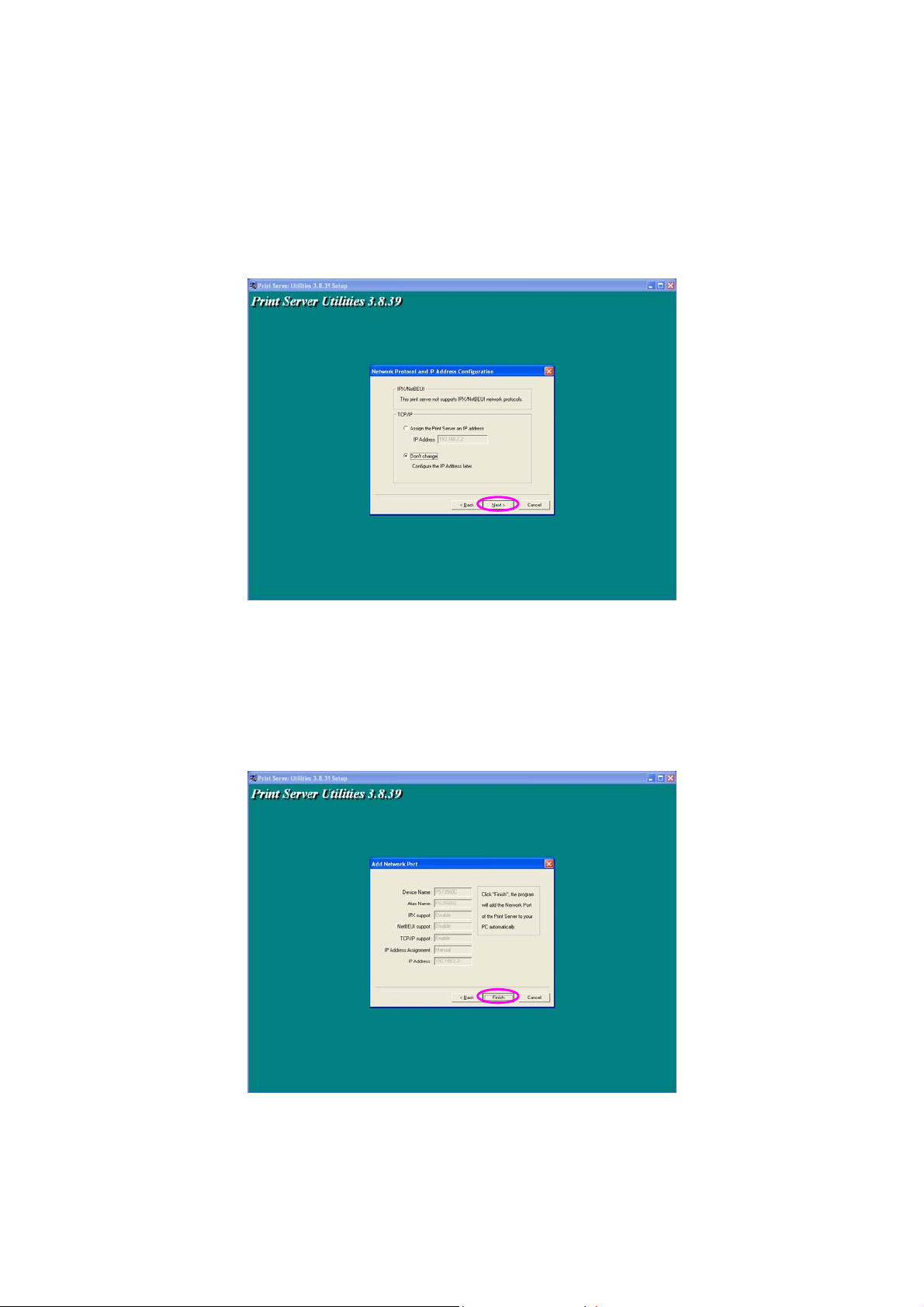

10. Specify the IP Address for the Print Server
manually or click “Next” to keep default IP Address, i.e.
192.168.2.2.
11. The configuration summary is displayed in the
window. Now, you have completed the “Print Server Setup”.
Click “Finish” and your system will add network port of the
Print Server to your PC automatically.
23

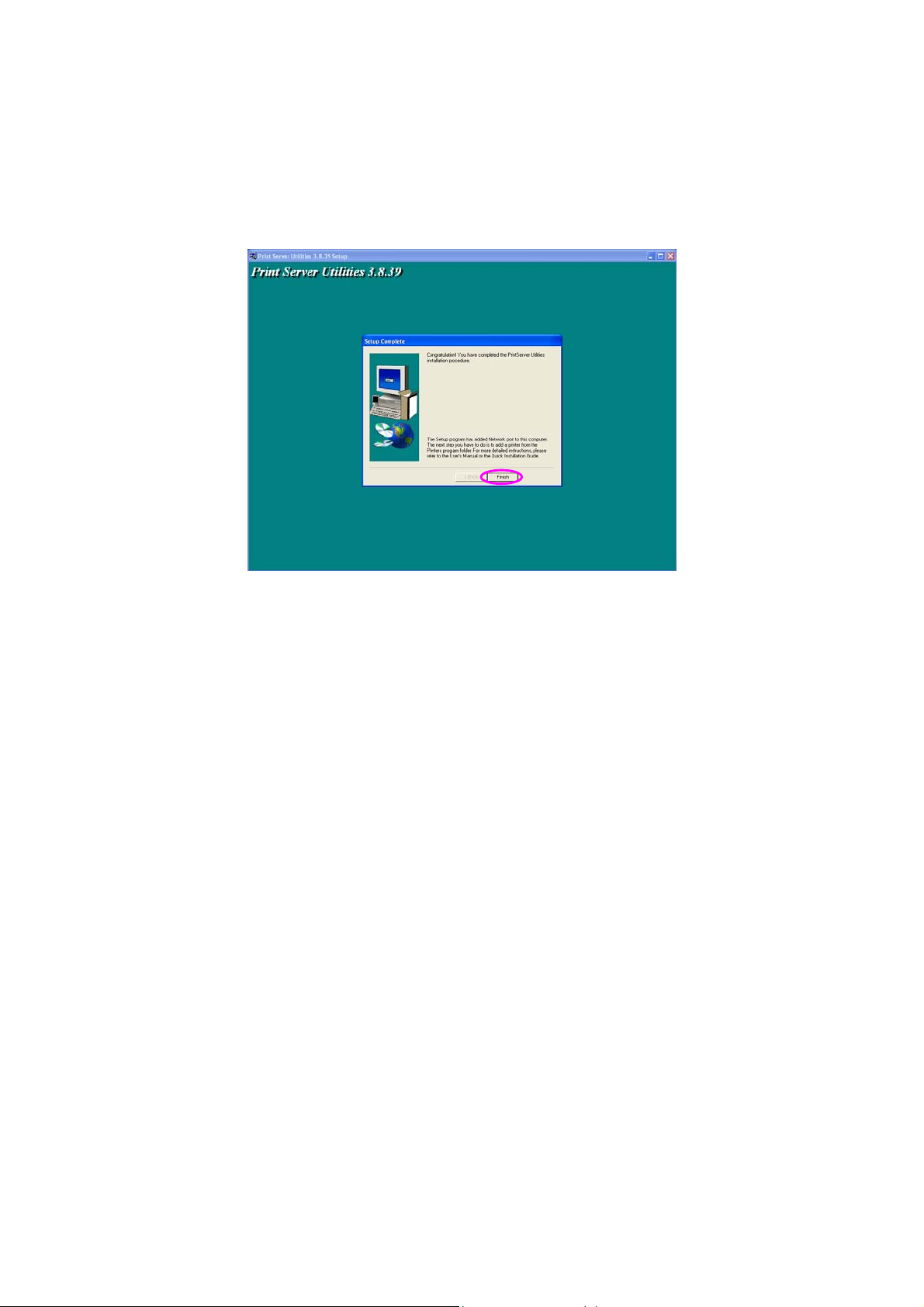

12. The Administrator Installation procedure is totally
completed. Click “Finish”.
The Administrator Installation Program have executed
the installation procedure that performs the following tasks:
Install all utilities and drivers to the
administrator’s PC.
Configure the print server (including the print
server name and network protocol)
Add the network port of the print server to the
administrator’s PC.
If you want to print from this admini strator’s PC to the
print server, all you need to do is to perform Windows’
standard “Add Printer” procedure (please refer to Section
3.6).
24

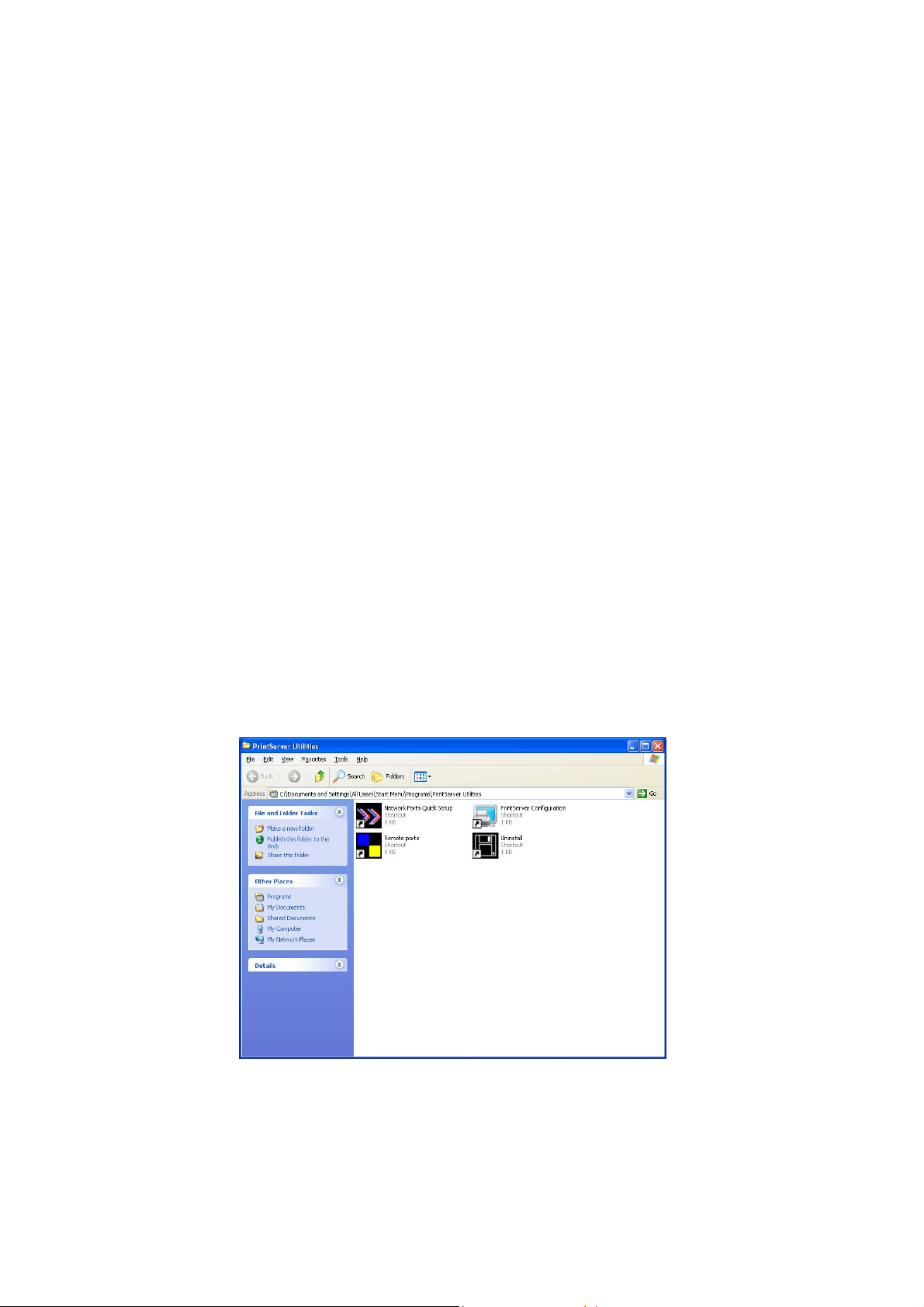

3.3 Administrator Utilities
After Administrator Installation is completed, there
will be four utilities in print server’s Program folder.
Network Ports Quick Setup – Add the network
ports of print servers within the network to your PC.
Print Server Configuration – Allows you to
configure the print server’s IP Address, network
protocols and other advanced functions. Please
refer to Chapter 7 for the detail instruction of the
configuration.
Remote Ports – Add the network port of remote
printer server to your PC.
Uninstall – Assistant for removing all installed
administrator software.
25
3.4 Client Installation and Setup
The Client Installation can be performed on Windows
95/98SE/Me/NT/2000/XP/2003 with the same user interface.
Before the installation procedure, please confirm that your
PC has connected to the network and installed at least one
network protocol.
1. Insert the CD shipped along with the print server
into your CD-ROM drive. The Autorun.exe program should
be executed automatically. If not, run Autorun.exe
manually from CD-ROM drive’s root directory.
2. The "Installation Manager" will be displayed on the
screen as follows. Click “Cl ient Installation”.
26
3. The “Utilities Setup” window will be displayed.
Click “Next”.
4. Click “Next” to install the utilities in the default
folder or click “Browse” to specify the destination folder
where you would like to install the utilities.
27
5. Specify the program folder where the program icons
will be added to, click “Next”.
6. The system will start to install the utilities
automatically.
28
7. Now, the installation procedure is completed, you
are ready to set up the client’s computer. All network ports
of the Print Servers detected on the network will be added
to your PC automatically, click “Continue”.
Note that if there are no print servers detected in the
network currently, please click “Continue” to finish the
installation. Please refer to Section 3.5.1 to add network
ports of print servers manually.
29
8. The Client Installation procedure is completed.
Click “Finish”.
After the installation, you have completed the
following tasks:
Install all utilities and drivers to the client’s PC.
Add all the print server’s network ports of the
network to the client’s PC.
You can then perform the Windows’ standard “Add
Printer” procedure to add network printers to your PC.
Please refer to Section 3.6.
30
3.5 Client Utilities
After Client Installation is completed, there will be
three tools in print server’s Pr ogram folder.
Network Ports Quick Setup
Remote Ports
Uninstall Network Driver
The Uninstall Network Driver will assist you in
removing all installed client software. The other two tools
are described as follows.
3.5.1 Network Ports Quick Setup
Network Ports Quick Setup Utility offers a very
simple method to add or remove print server’s printer port
from the client ’s computer.
31
During the client’s installation procedure, the system
will automatically search for all print servers on the
network, and add them into the printer ports of the client’s
computer (see below).
If you have just installed another new print server in
the network, you must run this program first. This program
will search for new print servers and allow you to add the
new network printer port into client’s computer
conveniently. Perform the standard Add Printer procedure,
then you can print directly to the printer through the newly
installed print server.
32
Please be aware that Network Ports Quick Setup Utility
can only detect and configure all print servers on the same
network, it cannot search and configure print servers on
other subnets across network segments. You must use
Remote Ports Utility described in the next section to
manage remote (across network segments) print servers.
Select the network ports in the “Available Ports” list
and click “>” to add ports. If you want to add all available
ports, please click “>>”. To cancel some of the network
ports or all ports from the “Chosen Ports” list, please click
“<” or “<<”.
3.5.2 Remote Ports (Utility)
Remote Ports Utility offers a convenient way for you
to manage and add printer port of the remote print server.
From the assistant of this utility, you can print to other
print servers outside the subnet across network segment.
However, please note that this function only supports
TCP/IP network protocol.
Please follow the procedures described below:
33
Step1. Run Remote Ports Utility. Clicks “Add” to
add a remote print port.
Step2. Enter print serve r’s name, IP address, select
used ports, and enter LPR queue name of each
port. Click “Ok”.
Step3. The new remote print port is displayed as
follows.
In order to use the remote printing function, you will
have to proceed with normal Add Printer procedure and
34
select your printer port as the newly added remote printer
port.
35
3.6 Windows Add Printer Procedure
After adding a “Network Port” of the print server to
your PC by Administrator or Client Installation Program,
you can follow the procedure described below to add
printer to the Windows. Note that following “Add Printer”
steps are running in Windows XP, the steps in other
Operating Systems are similar.
Step1. Click “Start”, choose “Settings” and select
“Printers and Faxes”.
Step2. Click “Add a Printer”.
Step3. The “Add Printer Wizard” is displayed. Click
“Next”.
36
Step4. Select “Local prin ter attached to this
computer” and make sure that “Automatically
detect and install my Plug and Play printer” is
not selected. Click “Next”.
Step5. Choose the suitable “Print Server Network
Port” which was created by the Administrator
Installation or Client Installation process and
click “Next”.
37
Step6. Select a suitable printer manufacturer and the
printer model and click “Next”. If your printer
is not in the list, click “Have Disk…” to inst all
the driver of the printer. After installation, the
printer model will be added to the list.
Step7. Name your printer and setup the default printer,
click “Next”.
38
Step8. Choose to print the test page or not. It is
recommended to print a test page. Click
“Next”.
Step9. You have added the printer to the PC
successfully. The information of the printer is
displayed in the windows. Click “Finish”.
39
4. Windows NT/2000/2003
Network
40
4.1 System Architecture
In Windows network environment, other than the Peerto-Peer network printing architecture described in the
previous chapter, we also offer the Server-Based Printing
architecture for Windows NT/2000/2003 server. Only one
Windows NT/2000/2003 is required to have Windows PTPP
(Peer-to-Peer Printing) driver installed and share the
printing service on the network. Other network users can
simply connect to the server and access the shared printer
(see below).
41
4.2 Windows NT/2000/2003 Server
Installation and Setup
Please follow the procedures described below for
installation and construct a peer-to-peer connection (PTPP)
between Windows NT/2000/2003 Server and Print Server.
Step1.
If this is your first time installing print server, please
install the administrator software on Windows
NT/2000/2003 server first. Refer to section 3.2 for
installation instructions.
If your network has already installed a working print
server and your Windows NT/2000/2003 server has not yet
installed the PTPP driver, please install the client software.
Refer to section 3.4 and 3.5 for installation instruction s.
Step2.
Please add/configure the Peer-to-Peer Printing of the
Windows NT/2000/2003 network printer and verify that you
can print from Windows NT/2000/2003 to the print server
by the installed PTPP driver.
42
Step3.
Share the above server’s printer to the network by
performing the standard Windows printer sharing process.
43
4.3 User Installation and Setup
After server side’s installation is completed, client side
will be able to find the server’s shared printer in Network
Neighborhood. You only need to perform Window’s
standard Add New Printer procedure, select “Network
Printer” shown in the screen below, and complete the
configurations afterwards to access the shared printer.
44
5. NetWare Network
45
5.1 System Architecture
We implement NetWare printer sharing functionality
into the print server itself, thus allowing one or more
printers attached by a print server to be connected to the
network. We have developed the print server to support
NetWare print server.
Embedded print server, which emulates the “queue
management functionality” of NetWare print server,
PSERVER program running on the NetWare server. A user
first prints a job at a workstation, the job is routed to a
NetWare server, the NetWare server stores the job in a
print queue and then the print server gets the print job from
the queue to printers.
Print Queue
Windows 98
Windows 2000
Netware Server
Print Server
Compare with NetWare printing functionality, the
advantages of embedding the NetWare network printing
functionality in the print server include:
Installation is easier and quicker.
Network management is easier.
46
Printing performance is enhanced.
Relieve NetWare file server’s burden.
Relieve the need of a workstation running the
remote printer utility.
Improve productivity by locating the printer near
the workgroup.
Each print server should log into a NetWare server
before servicing the print jobs. Each print server will
occupy a user account with which it can log into the
NetWare server.
47
5.2 NetWare 3.x/4.x/5.x Installation &
Setup
Once your print server is connected to your Ethernet
network, you can set it up for use with your networking
software.
5.2.1 Installation Using PCONSOLE
5.2.1.1 Configuring as Print Server Mode
1. Run the NetWare PCONSOLE program.
2. Change the current file server, if necessary, using
the Change Current File Server menu selection.
3. Choose the Print Queue Information menu selection.
4. Press the Insert key to add a new print queue.
5. Type in a print queue name, such as “PQ” or “Q1”.
6. You have now successfully created the print queue
that your print server will serve. Press the Escape
48
key until the Available Options main menu is
displayed.
7. Select Print Server Information.
8. Press the Insert key to add a new NetWare print
server object. The print server name can be
identical to the PSxxxxxx name printed on the
label of the print server.
9. Press Enter to select the newly created print server.
10. Select Print Server Configuration.
11. Select Printer Configuration.
12. Select Printer 0 (or Printer 1, Printer 2), and press
Enter, then select LPT1 (or LPT2, LPT3) in the
Type field. If your print server is with only one
port, you do not need to configure this Type field.
49
13. Press Escape, and answer Yes to the Save
Changes question.
14. Select Queues Serviced by Printer, then select
Printer 0 (or Printer 1, Printer 2) and press Enter.
15. Press Insert and add your newly created print
queue to the list of queues serviced by the printer.
Enter a priority number for the queue service, or
press Enter to accept the default.
16. Repeatedly press Escape to exit the PCONSOLE
program.
50
17. Reset the print server to have the changes take
effect.
NOTE: If the print server you have is with multiple
printer connectors, you may create multiple print queues
and printer objects.
Your print server should now be ready to use. You
should be able to redirect printing to your print server
using a CAPTURE command such as the one shown in the
previous section.
51
6. UNIX System Network
52
6.1 Introduction
The print server is available for TCP/IP printing by
Unix LPD (Line Printer Daemon) protocol. The LPD
protocol originated with Unix release is based on the BSD
version of Unix and supported under most versions of Uni x.
This chapter explains how to configure the print server
for TCP/IP operation, and how to modify configuration
files on your Unix system to allow printing to the print
server. The configuration examples in this manual follow
the syntax for BSD based Unix systems. Please refer to the
related system documentation for the correct syntax of your
systems.
To configure the print server for LPD printing, perform
the procedures below:
1. Enable Print Server’s TCP/IP Support.
2. Set up Print Server’s IP address.
3. Verify Print Server’s IP Address.
4. Configure remote LPD printing on the host.
5. Print a test page.
In the next sections, we will describe these five
procedures step by step.
53
6.2 Enable Print Server’s TCP/IP Support
The default configuration of the print server is with
TCP/IP support enabled. Anyway, you can configure the
print server to enable TCP/IP support using the
configuration program.
54
6.3 Setup Print Server’s IP Address
The print server must have a unique IP address in order
to be recognized by the network.
You can set up the IP address on the various Unix
systems using any one of the following methods:
1. DHCP (Dynamic Host Configuration Protocol)
2. BOOTP (Bootstrap Protocol)
The print server will use the last three methods to
obtain its IP address automatically if its IP address is
configured as Auto (0.0.0.0).
6.3.1 DHCP
There are many Unix systems that support DHCP
protocol, and the procedures to configure the DHCP server
database are different. This manual does not describe the
DHCP server configuration on the Unix systems. It is
highly recommended that the DHCP server should be
located on the same network as the print server.
6.3.2 BOOTP
If you have the BOOTP daemon, bootpd, running on
your UNIX system that is accessible by the print server,
you can use the BOOTP protocol to set up the IP address of
the print server. We recommend that the BOOTP server
should be located on the same subnet as the print server. If
you use Network Information Services (NIS) in your system,
you may need to rebuild the NIS map with the BOOTP
55
services before doing the following BOOTP configuration.
To rebuild the NIS map, please refer to your system
documentation.
To configure the IP address data for the BOOTP server,
you will need to log in the host of BOOTP server as the
superuser (root). Perform the following steps to add address
entries,
1. Optionally, assign a name corresponding to the
print server’s IP address. You can add this address to the
/etc/hosts file, by adding a line such as:
203.66.191.12 pserver
2. Add an entry to the host’s /etc/bootptab file, similar
to the following:
hostname:\
:ht=1:\
:ha=print_server_ethernet_address:\
:ip=print_server_ip_address:
Lines should be indented with tabs.
Where hostname is the device name of a print server,
the ht=1 tag specifies the hardware type is Ethernet, the
ha= tag specifies the Ethernet address of a print server,
which is the Node ID located on the print server. The ha tag
must be preceded by the ht tag. The ip= tag should
correspond to the IP address you want to assign to the print
server.
56
For example, a print server with the following
configuration:
Node ID: 0000B4010101 (this implies Ethernet
address is 0000B4010101),
IP address: 203.66.191.12
The entry for this print server in the /etc/bootptab file
should be:
PS010101:\
:ht=1:\
:ha=0000B4010101:\
:ip=203.66.191.12:
57
6.4 Verify Print Server’s IP Address
To verify that your print server is responding to the
newly assigned IP address using a PING command:
ping ip-address
58
6.5 Configure Remote LPD Printing on the
Host
The procedure you use to configure your Unix host(s)
to allow printing to your network remote print server varies
between different varieties of Unix. The procedure below
can be used for Unix variants that are related to BSD Unix,
such as SunOS or Linux. For other versions of Unix,
consult your system documentation, keeping in mind that:
1. The print server should be treated as a BSD
networked print server host.
2. The host name should be the name (or IP address)
that you have assigned to the print server.
3. The printer name (or queue name) on the remote
host should be lpt1, lpt2 or lpt3, the name of the printer
port on the print server.
You will need to perform the tasks below, logged in as
the superuser (root). To configure your Unix host for
printing,
1. Optionally, assign a name corresponding to the
print server’s IP address. You can add this address to the
/etc/hosts file, by adding a line such as:
203.66.191.186 pserver
2. Create a spool directory for the printer in the same
directory where spool directories are normally kept on the
machine, such as /var/spool or /var/spool/lpd:
59
mkdir /var/spool/lpd/pserverd
chown daemon /var/spool/lpd/pserverd
chgrp daemon /var/spool/lpd/pserverd
chmod 775 /var/spool/lpd/pserverd
3. Add an entry to the host’s /etc/printcap file, similar
to the following:
printer-name:\
:lp=:\
:rm=203.66.191.186:\
:rp=lpt1:\
:lf=/var/spool/lpd/pserverd.log:\
:sd=/var/spool/lpd/pserverd:\
:mx#0:
Lines should be indented with tabs. More than one
printer name can be used, with variants separated by
vertical bars (name1|name2).
The rm= entry should correspond to the IP address you
have assigned to the print server. You can also use a host
name if you have assigned one in the /etc/hos ts file.
The sd= entry should correspond to the spool directory
you created in the previous step.
The rp= entry should correspond to the port name of
the remote printer. The values should be one of lpt1, lpt2 or
lpt3 depends on the printer port.
60
The print server should now be available for printing
from your Unix host.
61
7. Configuration Utility
62
7.1 Introduction
This chapter introduces print server’s system
configuration utility in Windows environment. This utility
is automatically installed during Windows Administrator
Utility installation procedure - refer to section 3.2 and 3.3.
This utility provides the most complete management
and configuration functions on the print server side. This
utility only provides configuration functions for print
server itself; it does not include configuration functions for
client side or other file server or NetWare server in the
network environment.
The Configuration Utility provides the following
configuration and management functions:
Search Print Server: Search All Available Printer
Servers on the Network.
Print Server Status: Display Print Server Network
Status.
General Configuration: General Information of
print server.
TCP/IP Configuration: IP Address and DHCP
Server Configuration.
NetWare Configuration: NetWare Printing
Configuration.
AppleTalk Configuration: AppleTalk Protocol
Setting.
63
SNMP Configuration: SNMP Information
Configuration.
SMB: Configure the SMB Group Name.
System Configuration: Print Server Network
Ability Setting and Firmware Upgrade.
Setup Wizard: Guide You Through All the
Settings.
Report: List the Status of All Available Print
Servers on the Network.
We will explain each function separately in the
following section.
64
7.2 Search for All Available Print Server
Every time when you run print server’s configuration
utility, click the “Search” icon
on the tool bar. The
configuration utility will delay for several seconds because
the utility is using system’s available network protocols to
search for all print servers on the network. All available
print server s will be listed under “Server Group” on the left
side of the window.
You must select the print server you would like to
configure from the list. The system will, at the same time,
display the selected print server’s status on the right side of
the window.
65
7.3 Status of Print Server
Click “Status” icon on the tool bar, the status of th e
current selected print server will be showed on the right
side of the window.
The information of the print server displayed are MAC
ID, Model Type, Firmware Version, status of each printer
port, NetWare file server name, NetWare file server polling
interval, NetWare printer queue names, IP address, subnet
mask, default gateway, AppleTalk printer type, AppleTalk
zone and print server printing ability…etc.
You can refresh the print server’s status by pressing
the “Refresh” button
.
66
You can restart the print server by pressing the
“Reboot” button
.
67
7.4 Setup the Print Server
Click “Setup” icon on the tool bar, the setup items
of the current selected print server will be showed on the
right side of the window.
Double click one of the icons to set up the selected
print server. A screen will pop up to verify “User Name”
and “Password” of the print server. The default values are
as follows.
User Name: adm in
Password: 1234
68
69
7.5 General Configuration
Double Click “General” icon and the General
configuration window will pop-up.
You can see basic print server information in this page.
You also can configure the “Server Name”, “User Name”
and “Password” here.
Server Name, the name of the print server. You can
use this name to identify the print server when you are
searching for the print server by the administration and
client utilities.
User Name / Password is used to authenticate the
administrator by the Web administration tool.
70
7.6 TCP/IP Configuration
Double Click “TCP/IP” icon and the TCP/IP
configuration window will pop-up.
You can configure the print server to automatically get
IP from DHCP server or manually specify static IP. The
print server also has a built-in DHCP server. You can
enable this DHCP server and let it manages IP for you.
71
Click the “IP” button to enter the IP setting page. If
you need the print server to automatically get an IP from
DHCP server, select “Auto IP”. You also can select “Static
IP” to manually assign “IP Address”, “Subnet Mask” and
“Gateway” for the print server.
Click the “DHCP Server” button to enter the DHCP
server’s setting page. You can “Enable/Disable” the DHCP
server or set “Auto” and assign a range of IP addresses here.
The DHCP server is disabled by default. If Auto is selected,
the DHCP Server of print server will be enabled only when
there is no other DHCP Server within the network. When
“Enable” or “Auto” is selected, you have to configure
“Starting Address”, “Range”, “Subnet Mask”, “Gateway”
and “DNS”. The print server will assign a unique IP for
each client.
72
7.7 Netware Print Server Configuration
Double Click “NetWare” icon and the NetWare
configuration window will pop-up.
This print server supports NetWare Bindery Printing
method. The print server periodically polls the NetWare
server printer queues for printing jobs. You have to assign
the NetWare server name, print server polling interval and
the name of queue on the NetWare server for each printer
port.
Polling Time is the polling interval of the print server
for waiting printing jobs on the NetWare server.
NetWare Server is the name of the NetWare file
server that provides printer queue s.
73
7.8 AppleTalk Configuration
Double Click “AppleTalk” icon and the AppleTalk
configuration window will pop-up.
AppleTalk is a data communication protocol often used
by Macintoshes. The print server can use these parameters
to join the AppleTalk network and share the p rinter to other
AppleTalk workstations. You have to setup the “Zone
Name” and “Printer Type” for each printer port of this print
server.
Zone Name: Print server has to join zones of
AppleTalk before it can be shared to other workstations.
Only workstations in the sa me zone can share the printer. If
you want to share the printer to all workstations in all
Zones, you should enter only “*” in the “Zone Name” field.
Printer Type
, the type of printer attached to each
printer port. You can get the printer type from the
manufacturer of the printer.
74
7.9 SNMP Configuration
Double Click “SNMP” icon and the SNMP
configuration window will pop up.
Contact: You can ente r the print server administrator’s
contact information here. This information will be
displayed in the SNMP management tool.
Location: You can enter the installed location of the
print server here. This information will be displayed in the
SNMP management tool.
75
7.10 SMB Configuration
SMB Group Name, the name of SMB group that this
print server belongs to. All PC should join the same group
before they can use this print server by SMB protocol.
Pass Job when Error Occurred: When the printer is
interrupted because of paper out or off line while printing,
user can set the interval time to bypass the current printing
job. Or the printing document will not be printed
completely or with unformatted messages.
76
7.11 System Configuration
Double Click “System” icon and the System
configuration window will pop-up.
In the System configuration page, you can select to
enable/disable each printing or management protocol,
upgrade the new firmware for this print server, and load
factory defaults to the print server.
Upgrade Firmware: You can use this “Upgrade
Firmware” tool to update the newest firmware of the print
server. Click “
” button and select the correct firmware in
your PC. After selecting the firmware file, click the
“Upgrade” button to finish the firmware update process.
Load Default: If you want to reset the Print Server to
default factory settings, please click “Load Default”.
77
7.12 Wizard
Click “Wizard” icon on the tool bar, the setup
wizard item of the current selected print server will be
showed on the right side of the window.
Double click the “Print Server Setup Wizard” the setup
wizard will guide you through all the setup process.
78
Step 1: Set up the name of this print server.
Step 2: Select to enable required printing protocol.
Please refer to section 7.11 for detail information.
79
Step 3: Setup the IP of this print server and the DHCP
server. Please refer to section 7.6 for detail information.
Step 4: Setup the AppleTalk printing. Please refer to
section 7.8 for detail information.
80
Step 5: Setup the NetWare printing. Please refer to
section 7.7 for detail information.
Step 6: Click “Save” to finish setting. Please reboot
the print server to let these settings take effect.
81
7.13 Report
Click “Report” icon on the tool bar, the Report
window will pop up.
The report lists basic information of all available print
servers on the network. The information includes Device
Name, MAC ID, Model Type and Firmware Version of the
print server.
82
8. Web Management
83
8.1 Introduction
Print server can be configured and managed on the
Web. Through Local Area Network, or even Internet,
administrator can easily configure and manage print
server’s various main functions in browsers. Simply enter
print server’s IP address into your browser’s address field
to manage a print server by print server’s built-in Web
Server.
The default IP Address, User Name and Password
settings of the Print server are as follows.
IP Address: 192.168.2.2
User Name: Admin
Password: 1234
84
8.2 Login
You may use any Web Browser to review the status or
configure the settings of the print server. After entering the
IP address of the print server, a login page display. You
have to enter correct “User Name” and “Password” before
going to the Web Management pages.
Notes: Default User Name is “admin”, default
password is “1234”.
85
8.3 Device Status
8.3.1 System
System Information includes “Device Name”, “Print
Server Name”, “Model Type”, “Firmware Version”, “MAC
Address” and the protocols enabled status, etc.
86
8.3.2 Printer
This page lists information of printer connected to the
printer port.
87
8.3.3 TCP/IP
This page lists all TCP/IP settings of the print server
including “IP Address”, “Subnet Mask” and “Gateway”. It
also lists DHCP server sett ing.
88
8.3.4 SMB
This page lists the SMB group and the pass job interval
time settings of the print server.
89
8.3.5 SNMP
This page lists the SNMP settings of the print server. It
includes the settings of “SNMP System Contact” and
“SNMP System Location”.
90
8.3.6 NetWare
This page lists NetWare settings, including “Polling
Time”, “Use Bindery Mode”, “Name of the File Server” and
“Port Attached Queue”.
91
8.3.7 AppleTalk
This page lists AppleTalk settings, including
“AppleTalk Zone Name” and “Printer Type” of the printer
connected to the print port.
92
8.4 Setup Wizard
8.4.1 System
You can change the print server name and password of
the print server from here.
Print Server Name, the name of the print server. You
can use this name to identify the print server when you are
searching for the print server by the administration and
client utilities.
Password,
enter the password you want to change to
the print server. The password can be up to 7-digit
alphanumeric format. The default password is “1234”.
Re-type Password, enter the password you want to
change to the print server again.
93
8.4.1.1 Advanced Settings
You can enable/disable the printing protocols from the
screen. To enable the function, please select “Enable”; to
disable the function, please select “Disable”.
94
8.4.2 TCP/IP
You can configure the print server to automatically get
IP from DHCP server or manually specify static IP. The
print server also has a built-in DHCP server. You can
enable this DHCP server and let it manages IP for you.
If you need the print server to automatically get an IP
from DHCP server, select “Enable Obtain TCP/IP Settings
Automatically (Use DHCP/ BOOTP)”. You also can select
“Disable Use the following TCP/IP Settings” to manually
assign “IP Address”, “Subnet Mask” and “Gateway” for the
print server.
You can enable/disable or set auto for the print
server’s DHCP server. The DHCP server is disabled by
default. If the DHCP Server is enabled or set Auto, you
have to assign a range of IP addresses here. Fill in the
95
Loading...
