According to the European WEEE directive, electrical and
electronic equipment must not be disposed with consumers waste.
Its components must be recycled or disposed apart from each other.
Otherwise contaminative and hazardous substances can pollute
our environment.
You as a consumer are committed by law to dispose electrical and electronic
devices to the producer, the dealer, or public collecting points at the end of the
devices lifetime for free. Particulars are regulated in national right. The symbol
on the product, in the user's manual, or at the packaging alludes to these
terms. With this kind of waste separation, application, and waste disposal of
used devices you achieve an important share to environmental protection.
1.0 Safety Instruction
Unplug the AC coupler from the wall outlet before cleaning. Use a
damp cloth for cleaning. DO NOT use liquid cleaners or aerosol
cleaners.
This product should never be placed near or over a radiator, or
heat register.
This product relies on the building’s electrical installation for
short-circuit (over current) protection.
DO NOT allow anything to rest on the product interconnect cords.
DO NOT locate this product where people may walk on the cords.
Because the 500Mbps PLC Ethernet Bridge product sends data
over the powerline, it is recommended that you plug directly into a
power outlet. Do not plug the device into a UPS or power strip
with surge protection. The 500Mbps PLC Ethernet Bridge product
has its own power filter for protection against surges.
Congratulations to the Purchase of PL0008 !
Please read the Manual and Safety Instructions before using the
product for the first time. Otherwise damage can be the result.
-1-
2.0 Introduction
HD entertainment and fast home network in one: with speeds of
500 Mbps, the Powerline PL0008 is powerful enough to transmit
even 3D movies to every room of your home. Without routing
cables or WLAN picture stutter - simply over the electrical wiring.
Connect computers, laptops, game consoles as well as Internet
TVs and hard drive recorders to each other and to the Internet.

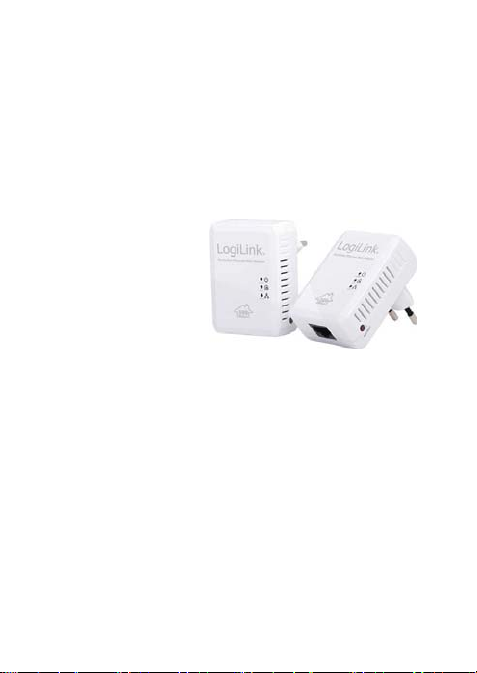

The first powerline adapter of the latest generation is fully
compatible with all 200 AV adapters, is extremely energy saving
and, thanks to its flat,
inconspicuous design,
can be positioned
anywhere.
2.1 Feature:
x IEEE1901 and HomePlug AV Compliant
x Co-existence with HomePlug 1.01
x Up to 500 Mbps PHY rate
x High Definition (HD) and Standard Definition (SD) video
distribution
x Internet Protocol Television (IPTV) distribution
x Home networking backbone for Wi-Fi, and Wireless USB
x High speed broadband sharing
x Audio and video streaming and internet downloading
x PC files and applications sharing
x Printer and peripheral sharing
x Network and interactive online gaming
x Security cameras
x Supports low power “Sta ndby” mode for 2013 E uP Standard
x Full compatibility with all 200 and 500 HomePlug AV adapters
-2-
2.2 Specification
PHY Rate 500Mbps(IEEE 1901 and HomePlug® AV
Effect Data Rate TCP: Up to 97 Mbps effective throughput
Frequency Band 2~68 MHz (With Mask)
Access Methods Priority-based CSMA/CA channel access schemes
Qos Integrated Quality of Service (QoS) Enhancements
Modulation OFDM (QAM 8/16/64/256/1024/4096, QPSK,
Standards IEEE 802.3, HomePlug AV Protocol Compliance
Operating
System
(for utility-program
only)
Nodes Up to 15 slaves with 1 master, 16 total devices
IGMP IGMP Supports IGMP managed multicast sessions
Encryption 128-bit AES Link Encryption with key management
Push Button NID/RST button
Port One 100M Ethernet port
Distance AC Wire: 200 meters
LEDs PWR (Green) PLC(Green/Orange/Red throughput
Temperatu re Operating: 0~40 ºC, Storage:-20~60 ºC
Relative
Humidity
Power Source 100 ~ 240 VAC 50/60Hz
Power
Consumption
compliant)
UDP: Up to 97 Mbps effective throughput
maximize efficiency and throughput
Hardware Packet Classifiers for T oS, CoS and IP
Port Number
Supports IGMP managed multicast sessions
BPSK, ROBO)
with HomePlug 1.0 coexistence capability
Microsoft Windows® 2000, XP , Vista ,Windows 7/8
It supports max. 8 nodes at home
indicator) ETH (Green)
Storage: 5~90% Non-Condensing
Operating : 10~85% Non-Condensing
4W Max. (Normal mode) Below 0.5W (Standby
mode)
-3-
2.3 System Requirements
x Microsoft Windows® 98SE, ME, 2000, XP, Vista, Windows 7/8,
Mac OS or Linux OS
x Pentium® III or better, clock rate faster than 2.0GHz
recommended
x At least one free Ethernet port for 500Mbps PLC-Ethernet
Bridge
2.4 Package Contents
x 2 x 500Mbps Powerline Ethernet Adapters
x 2 x CAT5e Cables, 1.2M
x 1 x Quick Installation Guide
x 1 x CD (Software & Manual)
3.0 Installation
3.1 Notice before installation
Your PC mu s t not be c onfigured for another network. This
means:
1. No network clients except for Microsoft Network*, Client for
Netware* Networks, or Microsoft Family Logon* are installed.
2. No network services except file and printer sharing for
Microsoft Networks or Personal Web Server* are installed
3. No network protocols except Microsoft’s TCP/IP, IPX/SPX,
NetBEUI, or Net BIOS support for IPX/SPX are installed
Network installation requires two steps:
1. Install the 500Mbps PLC Ethernet Bridge
2. For each PC to be added to the network, repeat the process
Check that you have the following parts for each PC on the
network:
1. 500Mbps PLC Ethernet Bridge
2. Ethernet Cable (CAT 5)
-4-
Familiarize yourself with the Powerline device
connections:
There is only one Ethernet port. This is used for the connection
with PC, xDSL/Router, Cable Modem, or Wireless AP.
Limitation of the PLC device:
To meet the safety regulation, the longest distance between
powerline carrier devices will be limited at 200 meter and for
in-house use only. More than 200 meter will cause the signal
reduction or data loss.
3.2 Installing
Do not plug the device into a power strip or surge protector
because these devices may consist of filter and impair signal.
Also avoid plugging the device right next to noisy sources such as
cell phone charger, Halogen light, Energy saving bulb, noisy
desktop computer, vacuum cleaner, etc. Both cases result in poor
transmission speed.
To install for the PC local Powerline network
1. Use the supplied Category 5 Ethernet cable to connect
Ethernet Bridge and your PC’s Ethernet port.
2. Plug the Ethernet Bridge to outlet.
3. The PWR LED indicator will light on after plugging.
4. You can repeat steps 1 and 2 for connecting the others.
5. The PL-ACT LED indicator starts blinking when the data
communication proceeds on Powerline.
6. The ETH-ACT LED indicator starts blinking when the data
communication proceeds on Ethernet.
To share a xDSL or cable modem with Internet access
service
1. Connect one Ethernet Bridge to the broadband router
a. Plug the Ethernet Bridge into an AC outlet.
b. Plug the provided Ethernet cable into the RJ45 connector
of the Bridge and plug the other end of the cable into an
available Ethernet port of the Router.
-5-
2. Connect the other Ethernet Bridge(s) to the PC(s) to share
the Internet access
a. Plug the Bridge into an AC outlet.
b. Plug the provided Ethernet cable into the RJ45 connector
of the Bridge and plug the other end of the cable into
Ethernet port on the PC.
As wireless AP (Access Point) Extender
1. Connect one Ethernet Bridge to the broadband router
a. Plug the Bridge into an AC outlet.
b. Plug the provided Ethernet cable into the RJ45 connector
of the Bridge and plug the other end of the cable into an
available Ethernet port of the broadband router.
2. Connect the other Ethernet Bridge to the wireless AP
a. Plug the Bridge into an AC outlet.
b. Plug the provided Ethernet cable into the RJ45 connector
of the Bridge and plug the other end of the cable into the
Ethernet port on the wireless AP.
LEDs
PWR
(Red)
PLC
(Green /Orange
/Red)
ETH
(Green)
*1 : The “PWR“ LED indicator will blink in standby mode. It will
automatically get into standby mode, if the Ethernet-link is lost for
60 seconds. If you unplug the Ethernet cable, it will get into
standby mode after 60 seconds. Under standby mode, PLC and
ETH LEDs will both be off.
On: Power on
Blinking: Standby mode (*1)
Off: Power off
On: Powerline Link detected and no traffic
Blinking: Powerline traffic detected
Green: The Powerline connection quality is good
Orange: The Powerline connection quality is fair
Red: The Powerline connection quality is bad
Off: No Powerline Link detected
On: Ethernet Link detected
Blinking: Ethernet traffic detected
Off: No Ethernet Link detected
-6-
Push Buttons
Push button functions are disabled under Standby mode.
NID/RST Button Usage:
1. Set 2 device into same group (private network):
Step 1. Press and hold the device’s “NID/RST” button for less
3 seconds at same time. You canrelease the button this
device would into same private network.
2. Add a new device to the existing private network:
Step 1. Plug the new device and one grouped device. Press
and hold its “NID/RST ” button less 3 seconds at same time.
Step 2. The new device starts to communicate with the device
from existing private network, and tries to join this existing
private network.
Step 3. If failed, please repeat Step 1 to Step 2 again.
3. Leave the private network:
Step 1. If the device wants to leave the private network, press
and hold the device’s “NID/ RST” button for 5-10 seconds to
randomize the network encryption setting. This device will
leave the private network.
4. Reset the device to the factory default setting:
Push the device’s “NID/RST” button for 10-15 sec seconds.
You will see the device’s all LEDs are off and restart. The
device’s setting resets to the “factory defaults”.
