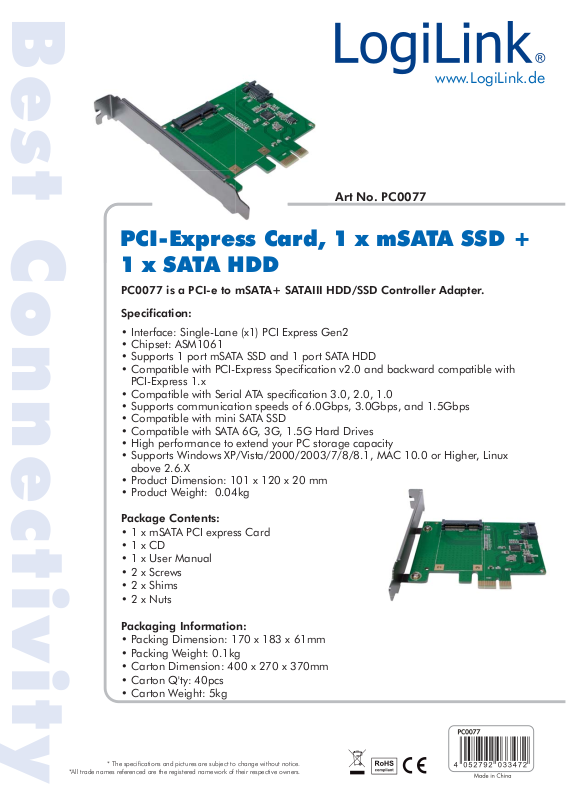

Art No. PC0077
PCI-Express Card, 1 x mSATA SSD +
CI-Express Card,
1 x SATA HDD
PC0077 is a PCI-e to mSATA+ SATAIII HDD/SSD Controller Adapter.
Specification:
• Interface: Single-Lane (x1) PCI Express Gen2
• Chipset: ASM1061
• Supports 1 port mSATA SSD and 1 port SATA HDD
• Compatible with PCI-Express Specification v2.0 and backward compatible with
PCI-Express 1.x
• Compatible with Serial ATA specification 3.0, 2.0, 1.0
• Supports communication speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps
• Compatible with mini SATA SSD
• Compatible with SATA 6G, 3G, 1.5G Hard Drives
• High performance to extend your PC storage capacity
• Supports Windows XP/Vista/2000/2003/7/8/8.1, MAC 10.0 or Higher, Linux
above 2.6.X
• Product Dimension: 101 x 120 x 20 mm
• Product Weight: 0.04kg
de
Package Contents:
• 1 x mSATA PCI express Card
• 1 x CD
• 1 x User Manual
• 2 x Screws
• 2 x Shims
• 2 x Nuts
Packaging Information:
• Packing Dimension: 170 x 183 x 61mm
• Packing Weight: 0.1kg
• Carton Dimension: 400 x 270 x 370mm
• Carton Q'ty: 40pcs
• Carton Weight: 5kg
* The specifications and pictures are subject to change without notice.
*All trade names referenced are the registered namework of their respective owners.
