Best Connectivit
y
www.LogiLink.
Art No. PC0054
com

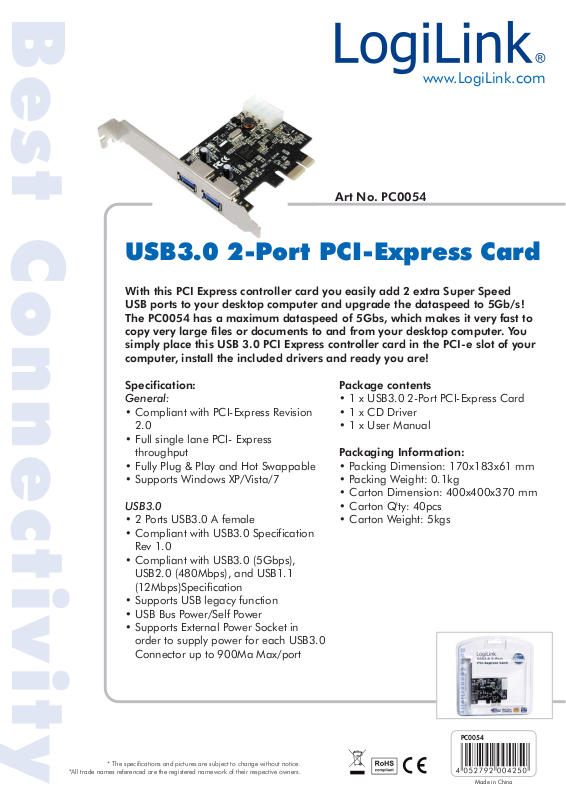

USB3.0 2-Port PCI-Express Card
With this PCI Express controller card you easily add 2 extra Super Speed
USB ports to your desktop computer and upgrade the dataspeed to 5Gb/s!
The PC0054 has a maximum dataspeed of 5Gbs, which makes it very fast to
copy very large files or documents to and from your desktop computer. You
simply place this USB 3.0 PCI Express controller card in the PCI-e slot of your
computer, install the included drivers and ready you are!
Specification:
General:
• Compliant with PCI-Express Revision
2.0
• Full single lane PCI- Express
throughput
• Fully Plug & Play and Hot Swappable
• Supports Windows XP/Vista/7
USB3.0
• 2 Ports USB3.0 A female
• Compliant with USB3.0 Specification
Rev 1.0
• Compliant with USB3.0 (5Gbps),
USB2.0 (480Mbps), and USB1.1
(12Mbps)Specification
• Supports USB legacy function
• USB Bus Power/Self Power
• Supports External Power Socket in
order to supply power for each USB3.0
Connector up to 900Ma Max/port
Package contents
• 1 x USB3.0 2-Port PCI-Express Card
• 1 x CD Driver
• 1 x User Manual
Packaging Information:
• Packing Dimension: 170x183x61 mm
• Packing Weight: 0.1kg
• Carton Dimension: 400x400x370 mm
• Carton Q'ty: 40pcs
• Carton Weight: 5kgs
PC0054
* The specifications and pictures are subject to change without notice.
*All trade names referenced are the registered namework of their respective owners.
Made in China
