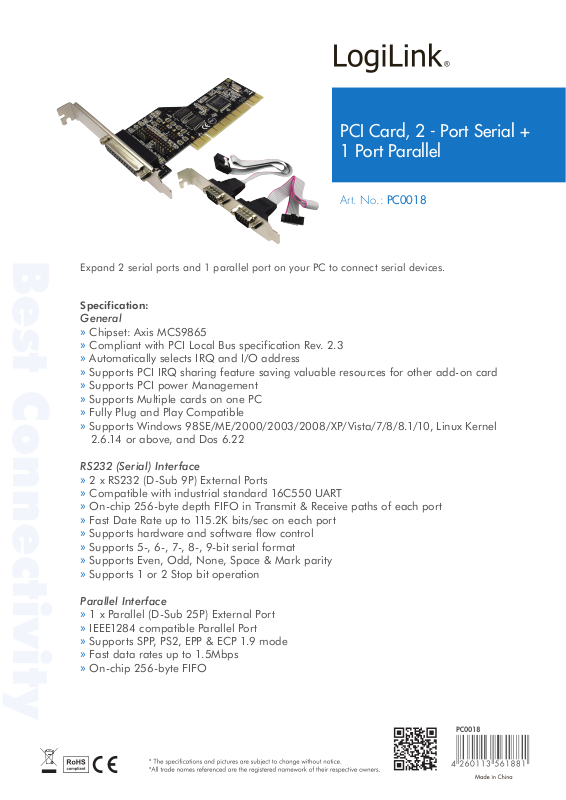

PCI Card, 2 - Port Serial +
1 Port Parallel
Art. No.: PC0018
Best Connectivity
Expand 2 serial ports and 1 parallel port on your PC to connect serial devices.
Specification:
General
» Chipset: Axis MCS9865
» Compliant with PCI Local Bus specification Rev. 2.3
» Automatically selects IRQ and I/O address
» Supports PCI IRQ sharing feature saving valuable resources for other add-on card
» Supports PCI power Management
» Supports Multiple cards on one PC
» Fully Plug and Play Compatible
» Supports Windows 98SE/ME/2000/2003/2008/XP/Vista/7/8/8.1/10, Linux Kernel
2.6.14 or above, and Dos 6.22
RS232 (Serial) Interface
» 2 x RS232 (D-Sub 9P) External Ports
» Compatible with industrial standard 16C550 UART
» On-chip 256-byte depth FIFO in Transmit & Receive paths of each port
» Fast Date Rate up to 115.2K bits/sec on each port
» Supports hardware and software flow control
» Supports 5-, 6-, 7-, 8-, 9-bit serial format
» Supports Even, Odd, None, Space & Mark parity
» Supports 1 or 2 Stop bit operation
Parallel Interface
» 1 x Parallel (D-Sub 25P) External Port
» IEEE1284 compatible Parallel Port
» Supports SPP, PS2, EPP & ECP 1.9 mode
» Fast data rates up to 1.5Mbps
» On-chip 256-byte FIFO
PCI Card, 2 - Port Serial +
1 Port Parallel
Art. No.: PC0018
Best Connectivity
Linux
10
Package Contents:
» 1 x PCI Card, 1 Port Parallel
» 1 x 2-Port Serial Bracket Cable
» 1 x CD
» 1 x Usre Manaul
Package Informations:
» Packing Dimension: 173 x 163 x 25mm
» Packing Weight: kg
» Carton Dimension: 520 x 366 x185mm
» Carton Q'ty: 40pcs
» Carton Weight: kg
