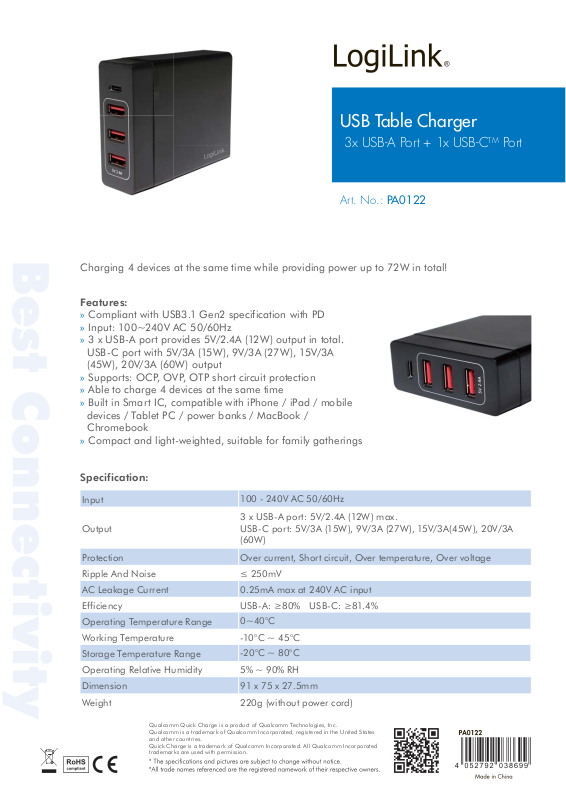

USB Table Charger
3x USB-A Port + 1x USB-CTM Por t
Art. No.: PA0122
Best Connectivity
Charging 4 devices at the same time while providing power up to 72W in total!
Features:
» Compliant with USB3.1 Gen2 specification with PD
» Input: 100~240V AC 50/60Hz
» 3 x USB-A port provides 5V/2.4A (12W) output in total.
USB-C port with 5V/3A (15W), 9V/3A (27W), 15V/3A
(45W), 20V/3A (60W) output
» Supports: OCP, OVP, OTP short circuit protection
» Able to charge 4 devices at the same time
» Built in Smart IC, compatible with iPhone / iPad / mobile
devices / Tablet PC / power banks / MacBook /
Chromebook
» Compact and light-weighted, suitable for family gatherings
Specification:
Input
Output
Protection Over current, Short circuit, Over temperature, Over voltage
Ripple And Noise ≤ 250mV
AC Leakage Current 0.25mA max at 240V AC input
Efficiency USB-A: ≥80% USB-C: ≥81.4%
Operating Temperature Range
Working Temperature -10°C ~ 45°C
Storage Temperature Range
Operating Relative Humidity
Dimension
Weight 220g (without power cord)
Qualcomm Quick Charge is a produc t of Qual comm Technologies, Inc.
Qualcomm is a trademark of Qualcomm Inco rporated, registered in the United States
and other count ries.
Quick Ch arge is a tradema rk of Qualcomm In corporated. A ll Qualcomm Inc orporated
trademarks are used wi th permission.
100 - 240V AC 50/60Hz
3 x USB-A port: 5V/2.4A (12W) max.
USB-C port: 5V/3A (15W), 9V/3A (27W), 15V/3A(45W), 20V/3A
(60W)
0~40°C
-20°C ~ 80°C
5% ~ 90% RH
91 x 75 x 27.5mm
USB Table Charger
3x USB-A Port + 1x USB-CTM Por t
Art. No.: PA0122
Best Connectivity
*Built-in Smart IC to auto detect the output requirements of the device
Package Contents:
» 1 x USB Table Charger
» 1 x Power Cord
» 1 x User Manual
Package Informations:
» Packing Dimension: 180 x 140 x 35mm
» Packing Weight: kg
» Carton Dimension: 380 x 370 x 300mm
» Carton Q‘ty: 40pcs
» Carton Weight: kg
Qualcomm Quick Charge is a produc t of Qual comm Technologies, Inc.
Qualcomm is a trademark of Qualcomm Inco rporated, registered in the United States
and other count ries.
Quick Ch arge is a tradema rk of Qualcomm In corporated. A ll Qual comm Inc orporated
trademarks are used wi th permission.
