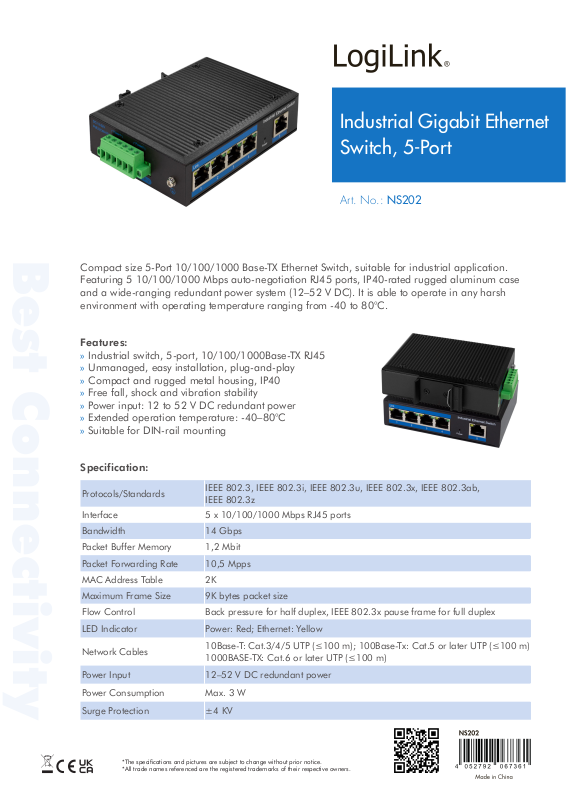

Industrial Gigabit Ethernet
Switch, 5-Port
Art. No.: NS202
Best Connectivity
Compact size 5-Port 10/100/1000 Base-TX Ethernet Switch, suitable for industrial application.
Featuring 5 10/100/1000 Mbps auto-negotiation RJ45 ports, IP40-rated rugged aluminum case
and a wide-ranging redundant power system (12–52 V DC). It is able to operate in any harsh
environment with operating temperature ranging from -40 to 80°C.
Features:
» Industrial switch, 5-port, 10/100/1000Base-TX RJ45
» Unmanaged, easy installation, plug-and-play
» Compact and rugged metal housing, IP40
» Free fall, shock and vibration stability
» Power input: 12 to 52 V DC redundant power
» Extended operation temperature: -40–80°C
» Suitable for DIN-rail mounting
Specification:
Protocols/Standards
Interface 5 x 10/100/1000 Mbps RJ45 ports
Bandwidth 14 Gbps
Packet Buffer Memory 1,2 Mbit
Packet Forwarding Rate 10,5 Mpps
MAC Address Table 2K
Maximum Frame Size 9K bytes packet size
Flow Control Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
LED Indicator Power: Red; Ethernet: Yellow
Network Cables
Power Input 12–52 V DC redundant power
Power Consumption Max. 3 W
Surge Protection ±4 KV
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab,
IEEE 802.3z
10Base-T: Cat.3/4/5 UTP (≤100 m); 100Base-Tx: Cat.5 or later UTP (≤100 m)
1000BASE-TX: Cat.6 or later UTP (≤100 m)
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Industrial Gigabit Ethernet
Switch, 5-Port
Art. No.: NS202
Best Connectivity
Installation DIN rail
Enclosure IP40 aluminum housing
MTBF >300.000 hours
Operating Temperature -40–80°C
Storage Temperature -40–80°C
Storage Humidity 5–95% RH non-condensing
Dimension 11,8 x 8,6 x 3,35 cm
Weight 0,36 kg
Package Contents:
» 1 x 5-Port Gigabit Ethernet Switch
» 1 x User Manual
Package Information:
» Packing Dimension: 165 x 135 x 54 mm
» Packing Weight: 0,41 kg
» Carton Dimension: 445 x 350 x 343 mm
» Carton Q‘ty: 36 pcs
» Carton Weight: 15,5 kg
