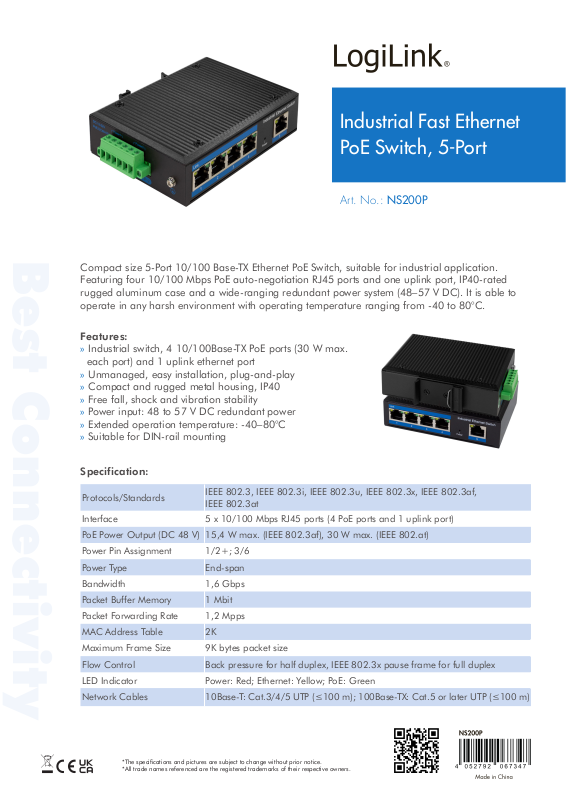

Industrial Fast Ethernet
PoE Switch, 5-Port
Art. No.: NS200P
Best Connectivity
Compact size 5-Port 10/100 Base-TX Ethernet PoE Switch, suitable for industrial application.
Featuring four 10/100 Mbps PoE auto-negotiation RJ45 ports and one uplink port, IP40-rated
rugged aluminum case and a wide-ranging redundant power system (48–57 V DC). It is able to
operate in any harsh environment with operating temperature ranging from -40 to 80°C.
Features:
» Industrial switch, 4 10/100Base-TX PoE ports (30 W max.
each port) and 1 uplink ethernet port
» Unmanaged, easy installation, plug-and-play
» Compact and rugged metal housing, IP40
» Free fall, shock and vibration stability
» Power input: 48 to 57 V DC redundant power
» Extended operation temperature: -40–80°C
» Suitable for DIN-rail mounting
Specification:
Protocols/Standards
Interface 5 x 10/100 Mbps RJ45 ports (4 PoE ports and 1 uplink port)
PoE Power Output (DC 48 V) 15,4 W max. (IEEE 802.3af), 30 W max. (IEEE 802.at)
Power Pin Assignment 1/2+; 3/6
Power Type End-span
Bandwidth 1,6 Gbps
Packet Buffer Memory 1 Mbit
Packet Forwarding Rate 1,2 Mpps
MAC Address Table 2K
Maximum Frame Size 9K bytes packet size
Flow Control Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
LED Indicator Power: Red; Ethernet: Yellow; PoE: Green
Network Cables 10Base-T: Cat.3/4/5 UTP (≤100 m); 100Base-TX: Cat.5 or later UTP (≤100 m)
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af,
IEEE 802.3at
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Industrial Fast Ethernet
PoE Switch, 5-Port
Art. No.: NS200P
Best Connectivity
Power Input 48–57 V DC redundant power
Surge Protection ±4 KV
Power Consumption 3 W
Installation DIN rail
Enclosure IP40 aluminum housing
MTBF >300.000 hours
Operating Temperature -40–80°C
Storage Temperature -40–80°C
Storage Humidity 5–95% RH non-condensing
Dimension 11,8 x 8,6 x 3,35 cm
Weight 0,36 kg
Package Contents:
» 1 x 5-Port Fast Ethernet PoE Switch
» 1 x User Manual
Package Information:
» Packing Dimension: 165 x 135 x 54 mm
» Packing Weight: 0,42 kg
» Carton Dimension: 445 x 350 x 343 mm
» Carton Q‘ty: 36 pcs
» Carton Weight: 15,8 kg
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
