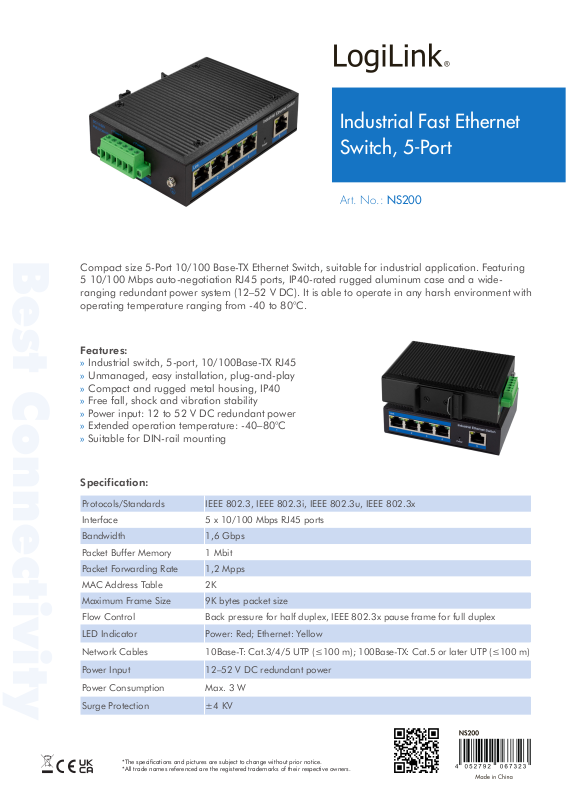

Industrial Fast Ethernet
Switch, 5-Port
Art. No.: NS200
Best Connectivity
Compact size 5-Port 10/100 Base-TX Ethernet Switch, suitable for industrial application. Featuring
5 10/100 Mbps auto-negotiation RJ45 ports, IP40-rated rugged aluminum case and a wideranging redundant power system (12–52 V DC). It is able to operate in any harsh environment with
operating temperature ranging from -40 to 80°C.
Features:
» Industrial switch, 5-port, 10/100Base-TX RJ45
» Unmanaged, easy installation, plug-and-play
» Compact and rugged metal housing, IP40
» Free fall, shock and vibration stability
» Power input: 12 to 52 V DC redundant power
» Extended operation temperature: -40–80°C
» Suitable for DIN-rail mounting
Specification:
Protocols/Standards IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface 5 x 10/100 Mbps RJ45 ports
Bandwidth 1,6 Gbps
Packet Buffer Memory 1 Mbit
Packet Forwarding Rate 1,2 Mpps
MAC Address Table 2K
Maximum Frame Size 9K bytes packet size
Flow Control Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
LED Indicator Power: Red; Ethernet: Yellow
Network Cables 10Base-T: Cat.3/4/5 UTP (≤100 m); 100Base-TX: Cat.5 or later UTP (≤100 m)
Power Input 12–52 V DC redundant power
Power Consumption Max. 3 W
Surge Protection ±4 KV
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Industrial Fast Ethernet
Switch, 5-Port
Art. No.: NS200
Best Connectivity
Installation DIN rail
Enclosure IP40 aluminum housing
MTBF >300.000 hours
Operating Temperature -40–80°C
Storage Temperature -40–80°C
Storage Humidity 5–95% RH non-condensing
Dimension 11,8 x 8,6 x 3,35 cm
Weight 0,36 kg
Package Contents:
» 1 x 5-Port Fast Ethernet Switch
» 1 x User Manual
Package Information:
» Packing Dimension: 165 x 135 x 54 mm
» Packing Weight: 0,41 kg
» Carton Dimension: 445 x 350 x 343 mm
» Carton Q‘ty: 36 pcs
» Carton Weight: 15,5 kg
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
