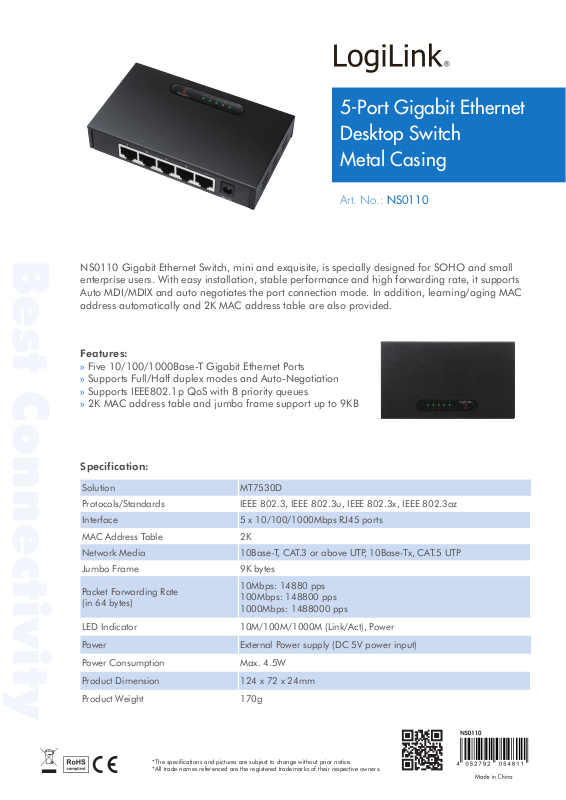

5-Port Gigabit Ethernet
Desktop Switch
Metal Casing
Art. No.: NS0110
Best Connectivity
NS0110 Gigabit Ethernet Switch, mini and exquisite, is specially designed for SOHO and small
enterprise users. With easy installation, stable performance and high forwarding rate, it supports
Auto MDI/MDIX and auto negotiates the port connection mode. In addition, learning/aging MAC
address automatically and 2K MAC address table are also provided.
Features:
» Five 10/100/1000Base-T Gigabit Ethernet Ports
» Supports Full/Half duplex modes and Auto-Negotiation
» Supports IEEE802.1p QoS with 8 priority queues
» 2K MAC address table and jumbo frame support up to 9KB
Specification:
Solution MT7530D
Protocols/Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Interface 5 x 10/100/1000Mbps RJ45 ports
MAC Address Table 2K
Network Media 10Base-T, CAT.3 or above UTP, 10Base-Tx, CAT.5 UTP
Jumbo Frame 9K bytes
Packet Forwarding Rate
(in 64 bytes)
LED Indicator 10M/100M/1000M (Link/Act), Power
Power External Power supply (DC 5V power input)
Power Consumption Max. 4.5W
Product Dimension 124 x 72 x 24mm
Product Weight 170g
10Mbps: 14880 pps
100Mbps: 148800 pps
1000Mbps: 1488000 pps
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.

5-Port Gigabit Ethernet
Desktop Switch
Metal Casing
Art. No.: NS0110
Best Connectivity
Operating Temperature 0°C ~ 50°C
Operating Humidity 10% ~ 90% RH, non-condensing
Storage Temperature -40°C ~ 70°C
Storage Humidity 5% ~ 90% RH, non-condensing
Features
Port Mirroring, Redirect, Dropping, Priority adjustment,
Traffic policing
Management
QoS IEEE802.1p QoS, 8 Priority Queues, scheduling algorithm
Security Storm control, Access control
Cable diagnostics
Package Contents:
» 1 x 5-Port Gigabit Ethernet
Desktop Switch
» 1 x Power Adapter 5V/1A (5W)
» 1 x User Manual
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Package Information:
» Packing Dimension: 180 x 140 x 35mm
» Packing Weight: 0.32kg
» Carton Dimension: 580 x 200 x 390mm
» Carton Q‘ty: 40pcs
» Carton Weight: 13.3kg
