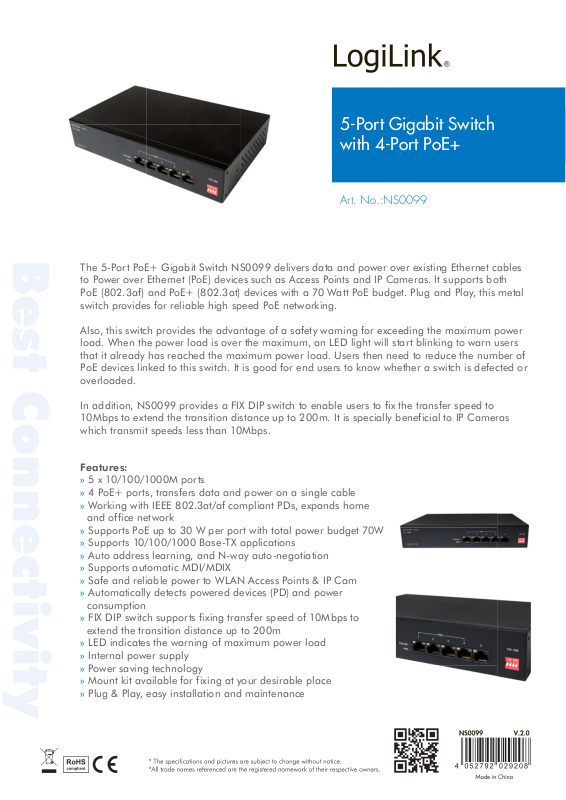

5-Port Gigabit Switch
with 4-Port PoE+
Art. No.:NS0099
Best Connectivity
The 5-Port PoE+ Gigabit Switch NS0099 delivers data and power over existing Ethernet cables
to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supports both
PoE (802.3af) and PoE+ (802.3at) devices with a 70 Watt PoE budget. Plug and Play, this metal
switch provides for reliable high speed PoE networking.
Also, this switch provides the advantage of a safety warning for exceeding the maximum power
load. When the power load is over the maximum, an LED light will start blinking to warn users
that it already has reached the maximum power load. Users then need to reduce the number of
PoE devices linked to this switch. It is good for end users to know whether a switch is defected or
overloaded.
In addition, NS0099 provides a FIX DIP switch to enable users to fix the transfer speed to
10Mbps to extend the transition distance up to 200m. It is specially beneficial to IP Cameras
which transmit speeds less than 10Mbps.
Features:
» 5 x 10/100/1000M ports
» 4 PoE+ ports, transfers data and power on a single cable
» Working with IEEE 802.3at/af compliant PDs, expands home
and office network
» Supports PoE up to 30 W per port with total power budget 70W
» Supports 10/100/1000 Base-TX applications
» Auto address learning, and N-way auto-negotiation
» Supports automatic MDI/MDIX
» Safe and reliable power to WLAN Access Points & IP Cam
» Automatically detects powered devices (PD) and power
consumption
» FIX DIP switch supports fixing transfer speed of 10Mbps to
extend the transition distance up to 200m
» LED indicates the warning of maximum power load
» Internal power supply
» Power saving technology
» Mount kit available for fixing at your desirable place
» Plug & Play, easy installation and maintenance
5-Port Gigabit Switch
with 4-Port PoE+
Art. No.:NS0099
Best Connectivity
Specification:
Hardware Specification
Network Connector 5-Port RJ-45 for 10/100/1000Base-TX
PoE Inject Port
Chipset RTL8367N-VB and IP + IP804
Switch Architecture
Power Saving Link-on cable length and link-down power saving
Switch Fabric
4-Port with PoE Injector function, Port 1 to Port 4
Store-and-Forward switch architecture
1Gbps
Throughput 6.547Mpps @64 Bytes, 1488095x5=7.44Mpps
Mac Address Table
Memory Buffer 128K Bytes
Jumbo Frame 9K Bytes
Flow Control
LED Display
Case Type Metal
2K
Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex
Power: Green LED
• Light off: power off
• Light on: power on
PoE Alert: Green LED (Port1~Port4)
• Light on: over 70% of POE power budget
• Light off: below 70% of POE power budget
LEDs on RJ45 LAN jack - Right: PoE LED (green)
• Light off: PoE/PoE + function not active
• Light on: feeding power at PoE/PoE +
LEDs on RJ45 LAN jack - Left: Port LED (green/amber)
• Green on: 1000m Link/Activity
• Amber on: 10/100m Link/Activity
• Blinking: sending or receiving data
Dimension (W x D x H) 215,5x 133 x 42 mm, 1U height
Product Weight 900g
5-Port Gigabit Switch
with 4-Port PoE+
Art. No.:NS0099
Best Connectivity
FIX DIP Switch Supports 10Mbps/200m transition function for PoE ports
Power Requirement 100~240V AC, 50-60 Hz, Internal Power 53V/1.5A
Power Consumption/Dissipation
Power over Ethernet
PoE Standard
PoE Power Supply Type End-Span
PoE Power Output
PoE Power Budget Max. 70 Watts
Max. number of Class 3 PD
80 Watts maximum/hour maximum
IEEE 802.3at/af Power over Ethernet / PSE
Per Port 52V DC, 600mA, Max. 30 Watts
4
Standards Conformance
Standards Compliance
Environmental
Operating
Storage
IEEE 802.3: 10Base-T
IEEE 802.3u: 100Base-TX
IEEE 802.3ab: 1000Base-T
IEEE 802.3x: Flow Control
IEEE 802.3at/af: Power over Ethernet
Temperature 0°C ~ 40°C
Relative Humidity 10 ~ 90%
Temperature -40°C ~ 70°C
Relative Humidity 10 ~ 90% (non-condensing)
5-Port Gigabit Switch
with 4-Port PoE+
Art. No.:NS0099
Best Connectivity
Package Contents:
» 1 x 5-port Gigabit Switch with 4-Port PoE
» 1 x Power cord
» 1 x Mount Kit
» 1 x User Manual
Package Informations:
» Packing Dimension: mm
» Packing Weight: kg
» Carton Dimension: mm
» Carton Q‘ty: pcs
» Carton Weight: kg
