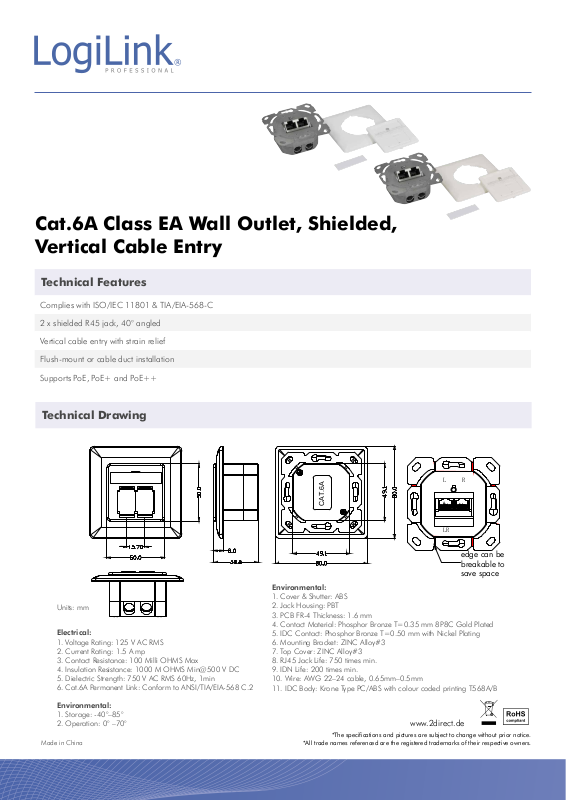

Cat.6A Class EA Wall Outlet, Shielded,
Vertical Cable Entry
Technical Features
Complies with ISO/IEC 11801 & TIA/EIA-568-C
2 x shielded R45 jack, 40° angled
Vertical cable entry with strain relief
Flush-mount or cable duct installation
Supports PoE, PoE+ and PoE++
Technical Drawing
L R
Units: mm
Electrical:
1. Voltage Rating: 125 V AC RMS
2. Current Rating: 1.5 A mp
3. Contact Resistance: 100 Milli OHMS Max
4. Insulation Resistance: 1000 M OHMS Min@500 V DC
5. Dielectric Strength: 750 V AC RMS 60Hz, 1min
6. Cat.6A Permanent Link: Conform to ANSI/TIA/EIA-568 C.2
Environmental:
1. Storage: -40°–85°
2. Operation: 0° –70°
Made in China
CAT.6A
LR
edge can be
breakable to
save space
Environmental:
1. Cover & Shutter: ABS
2. Jack Housing: PBT
3. PCB FR-4 Thickness: 1.6 mm
4. Contact Material: Phosphor Bronze T=0.35 mm 8P8C Gold Plated
5. IDC Contact: Phosphor Bronze T=0.50 mm with Nickel Plating
6. Mounting Bracket: ZINC Alloy#3
7. Top Cover: ZINC Alloy#3
8. RJ45 Jack Life: 750 times min.
9. IDN Life: 200 times min.
10. Wire: AWG 22–24 cable, 0.65mm–0.5mm
11. IDC Body: Krone Type PC/ABS with colour coded printing T568A/B
www.2direct.de
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
Art no. Color Suitable Surface Back Box EAN Code
NP0127 Signal White RAL 9003 NP0223 4052792028607
NP0128 Pure White RAL 9010 NP0221 4052792028591
Package Content
1x Cat.6A Wall Outlet
Packaging Information
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
85x85x60 mm
0.25 kg
360x360x260 mm
64 pcs
16.9 kg
Made in China
