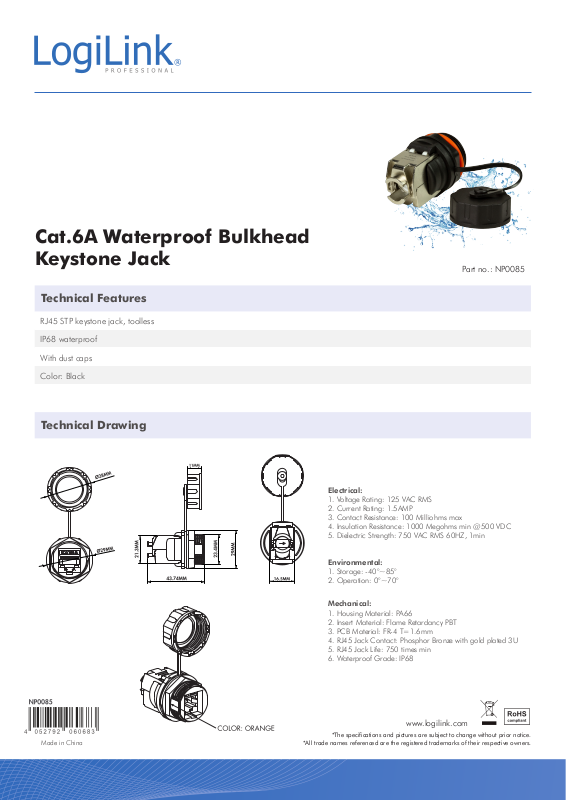

Cat.6A Waterproof Bulkhead
Keystone Jack
Technical Features
RJ45 STP keystone jack, toolless
IP68 waterproof
With dust caps
Color: Black
Technical Drawing
Part no.: NP0085
Electrical:
1. Voltage Rating: 125 VAC RMS
2. Current Rating: 1.5AMP
3. Contact Resistance: 100 Milliohms max
4. Insulation Resistance: 1000 Megohms min @500 VDC
5. Dielectric Strength: 750 VAC RMS 60HZ, 1min
Made in China
Environmental:
1. Storage: -40°~85°
2. Operation: 0°~70°
Mechanical:
1. Housing Material: PA66
2. Insert Material: Flame Retardancy PBT
3. PCB Material: FR-4 T=1.6mm
4. RJ45 Jack Contact: Phosphor Bronze with gold plated 3U
5. RJ45 Jack Life: 750 times min
6. Waterproof Grade: IP68
www.logilink.com
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
Package Content
Cat.6A Waterproof Bulkhead Keystone Jack x 1
Packaging Information
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
mm
kg
mm
pcs
kg
