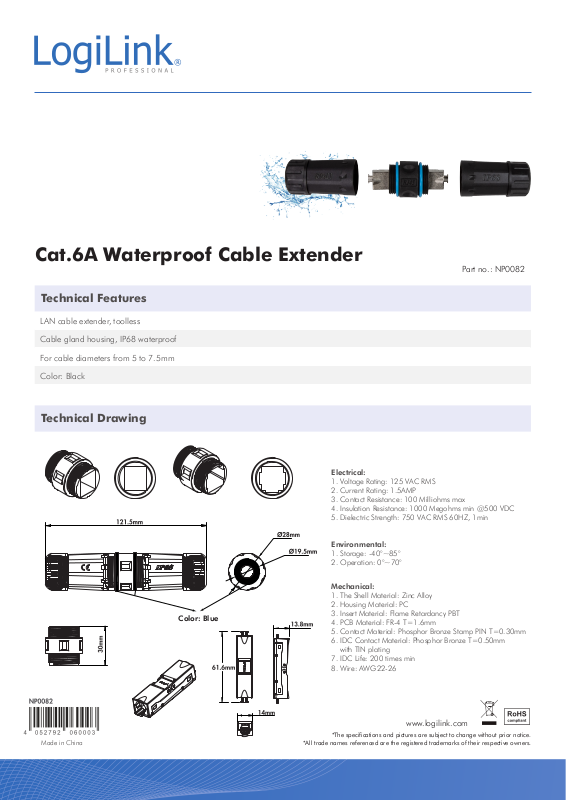

Cat.6A Waterproof Cable Extender
Technical Features
LAN cable extender, toolless
Cable gland housing, IP68 waterproof
For cable diameters from 5 to 7.5mm
Color: Black
Technical Drawing
Electrical:
1. Voltage Rating: 125 VAC RMS
2. Current Rating: 1.5AMP
3. Contact Resistance: 100 Milliohms max
4. Insulation Resistance: 1000 Megohms min @500 VDC
5. Dielectric Strength: 750 VAC RMS 60HZ, 1min
Part no.: NP0082
Made in China
Color: Blue
Environmental:
1. Storage: -40°~85°
2. Operation: 0°~70°
Mechanical:
1. The Shell Material: Zinc Alloy
2. Housing Material: PC
3. Insert Material: Flame Retardancy PBT
4. PCB Material: FR-4 T=1.6mm
5. Contact Material: Phosphor Bronze Stamp PIN T=0.30mm
6. IDC Contact Material: Phosphor Bronze T=0.50mm
with TIN plating
7. IDC Life: 200 times min
8. Wire: AWG22-26
www.logilink.com
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
Long Tube
O-shape Sealing Ring
Central Tuber
End Cover
Package Content
Waterproof
Sealing Plug
Modular
Cat.6A Waterproof Cable Extender x 1
Packaging Information
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
Made in China
mm
kg
mm
pcs
kg
www.logilink.com
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
