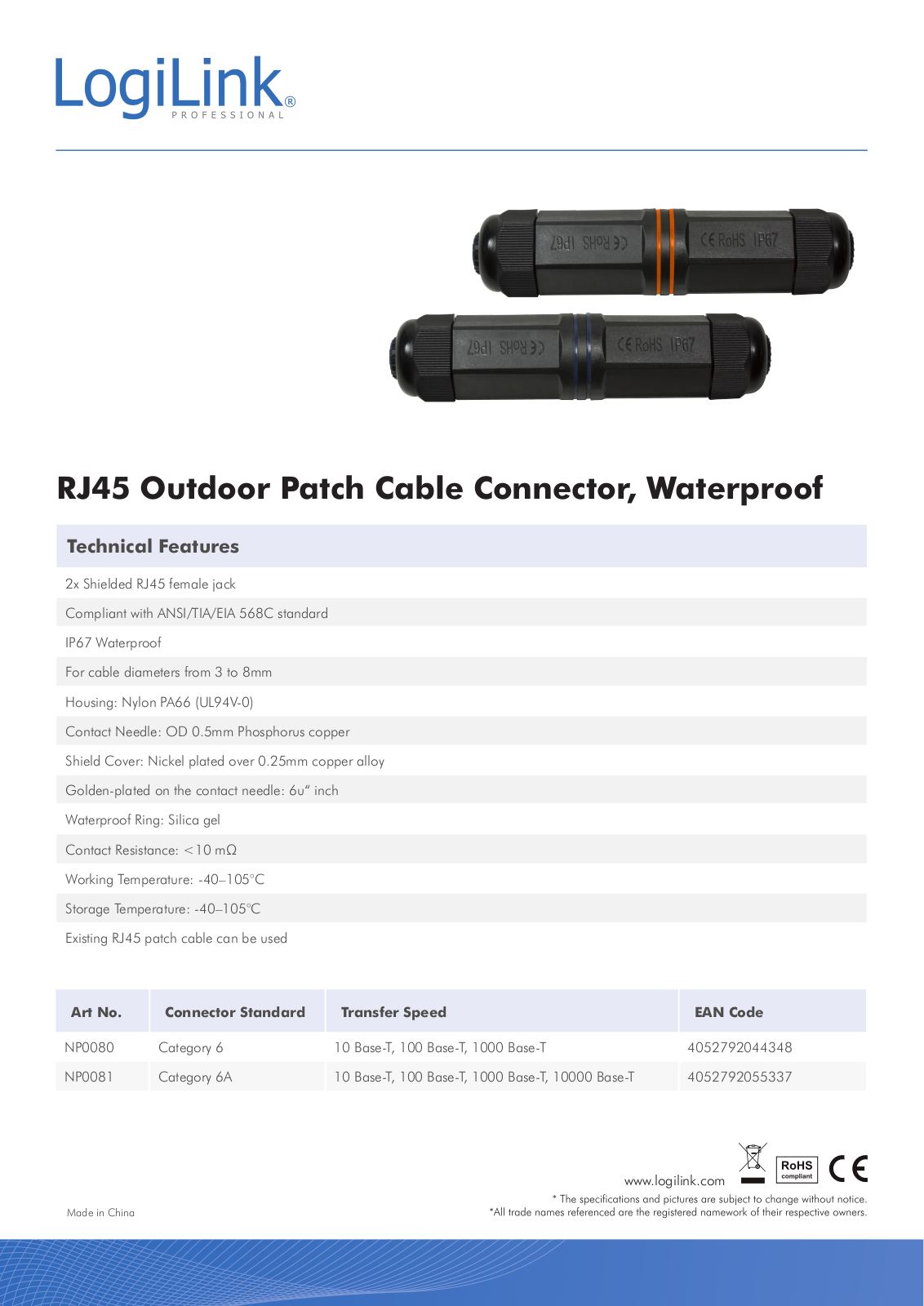

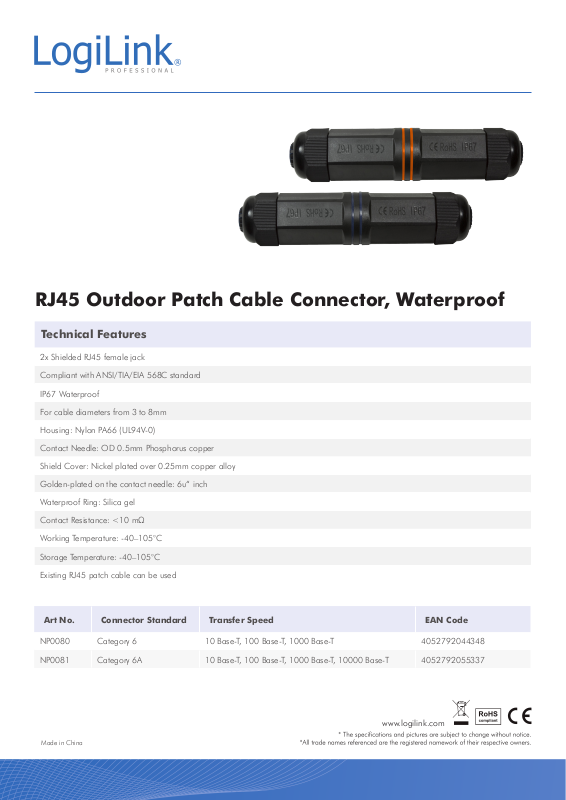

RJ45 Outdoor Patch Cable Connector, Waterproof
Technical Features
2x Shielded RJ45 female jack
Compliant with ANSI/TIA/EIA 568C standard
IP67 Waterproof
For cable diameters from 3 to 8mm
Housing: Nylon PA66 (UL94V-0)
Contact Needle: OD 0.5mm Phosphorus copper
Shield Cover: Nickel plated over 0.25mm copper alloy
Golden-plated on the contact needle: 6u“ inch
Waterproof Ring: Silica gel
Contact Resistance: <10 mΩ
Working Temperature: -40–105°C
Storage Temperature: -40–105°C
Existing RJ45 patch cable can be used
Art No. Connector Standard Transfer Speed EAN Code
NP0080 Category 6 10 Base-T, 100 Base-T, 1000 Base-T 4052792044348
NP0081 Category 6A 10 Base-T, 100 Base-T, 1000 Base-T, 10000 Base-T 4052792055337
www.logilink.com
Made in China

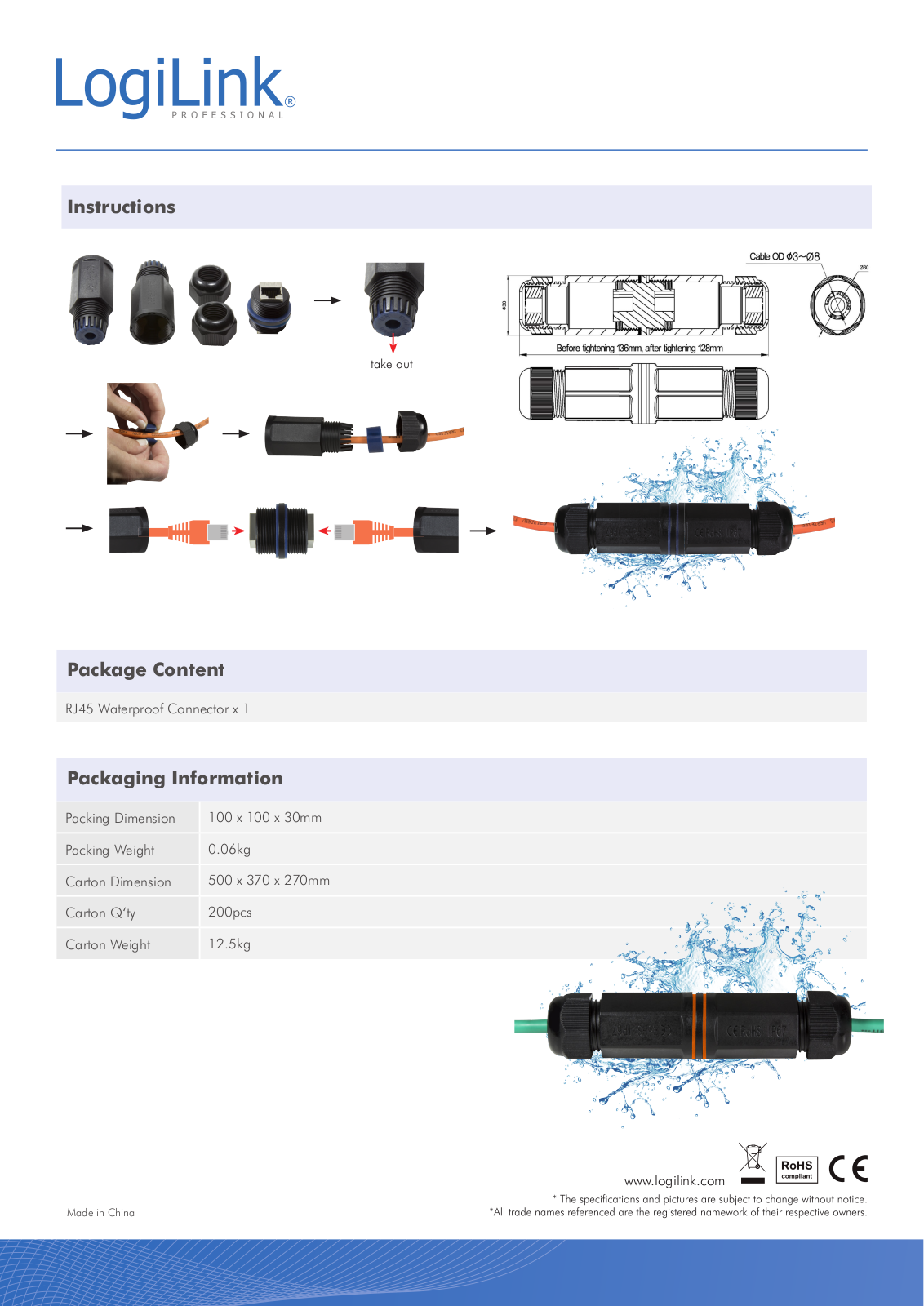

Instructions
take out
Package Content
RJ45 Waterproof Connector x 1
Packaging Information
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
100 x 100 x 30mm
0.06kg
500 x 370 x 270mm
200pcs
12.5kg
Made in China
www.logilink.com
