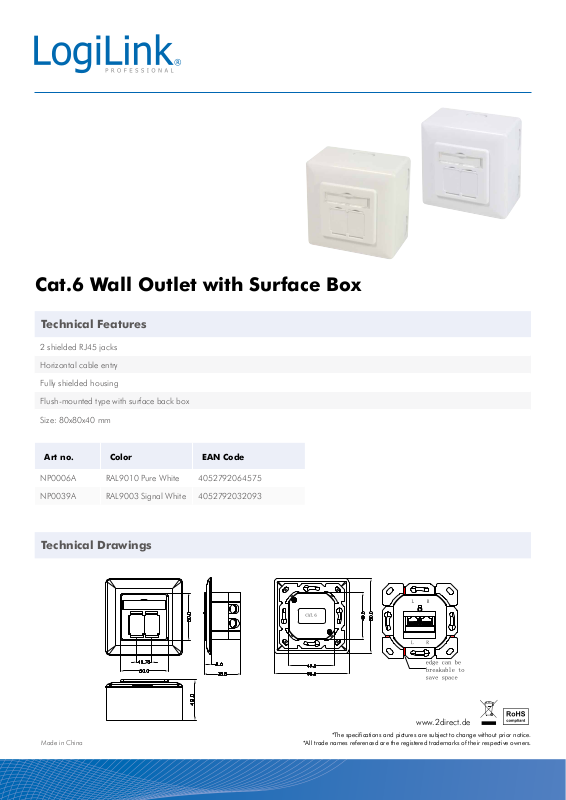

Cat.6 Wall Outlet with Surface Box
Technical Features
2 shielded RJ45 jacks
Horizontal cable entry
Fully shielded housing
Flush-mounted type with surface back box
Size: 80x80x40 mm
Art no. Color EAN Code
NP0006A RAL9010 Pure White 4052792064575
NP0039A RAL9003 Signal White 4052792032093
Technical Drawings
Made in China
www.2direct.de
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
Package Contents
1x Cat.6 Wall Outlet with Surface Box
Electrical:
1. Voltage Rating: 125V AC RMS
2. Current Rating: 1.5A mp
3. Contact Resistance: 100 milli ohms max.
4. Insulation Resistance: 1000m ohms min. @500V DC
5. Dielectric Strength: 750V AC RMS 60Hz, 1min.
Cat.6 Permanent Link: Conform to ANSI/TIA/EIA-568 C.2
IEC 11801 PL Class E
Mechanical:
1. Cover & Shutter: Flame Retardant ABS
2. Jack Housing: PBT + 15% GF UL94V0
3. Contact Material: Phosphor Bronze T=0.35mm 8P8C 3u" Golded Plate
4. IDC Contact: Phosphor Bronze T=0.50mm with Nickel Plating
5. Mounting Bracket: Zinc Alloy#3
6. Top Cover: Zinc Alloy#3
7. Rj45 Jack Life: 750 times min.
8. IDN Life: 200 times min.
9. Wire: AWG 22–24 cable conductor OD: 0.65mm–0.5mm
10. IDC Body: Krone type fireproof PC/ABS with colour coded printing T568A/B
11. Retentiveness of Insertion Structure: 50N 60±5s
12. PoE per IEEE802.3af, PoE+ per IEEE 802.3at, PoE++ per IEEE 802.3bt
Packaging Informations
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
85x85x55 mm
0.260 kg
360x360x260 mm
64 pcs
15.4 kg
Made in China
www.2direct.de
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
