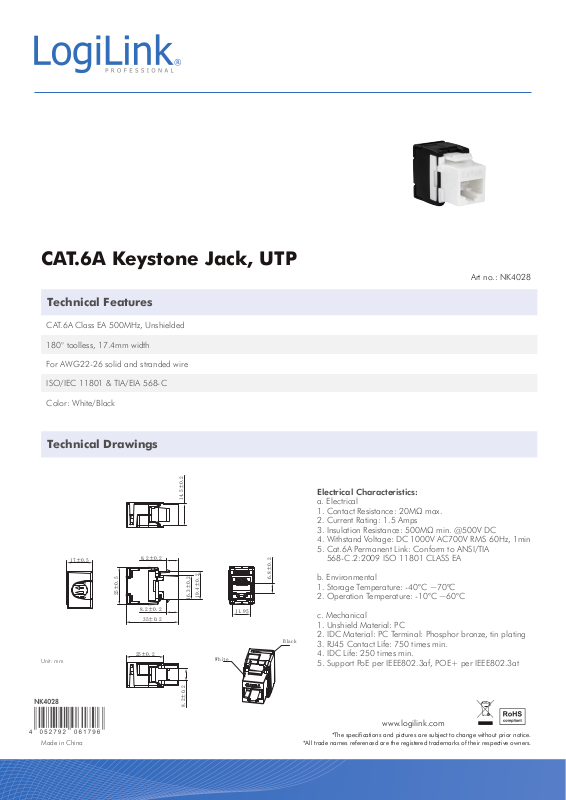

CAT.6A Keystone Jack, UTP
Technical Features
CAT.6A Class EA 500MHz, Unshielded
180° toolless, 17.4mm width
For AWG22-26 solid and stranded wire
ISO/IEC 11801 & TIA/EIA 568-C
Color: White/Black
Technical Drawings
Art no.: NK4028
17±0.5
Unit: mm
Made in China
25±0.5
8.2±0.2
8.2±0.2
35±0.2
25±0.2
14.5±0.2
19.4±0.2
16.3±0.2
8.2±0.2
White
11.95
6.8±0.2
Black
Electrical Characteristics:
a. Electrical
1. Contact Resistance: 20MΩ max.
2. Current Rating: 1.5 Amps
3. Insulation Resistance: 500MΩ min. @500V DC
4. Withstand Voltage: DC 1000V AC700V RMS 60Hz, 1min
5. Cat.6A Permanent Link: Conform to ANSI/TIA
568-C.2:2009 ISO 11801 CLASS EA
b. Environmental
1. Storage Temperature: -40°C ~70°C
2. Operation Temperature: -10°C ~60°C
c. Mechanical
1. Unshield Material: PC
2. IDC Material: PC Terminal: Phosphor bronze, tin plating
3. RJ45 Contact Life: 750 times min.
4. IDC Life: 250 times min.
5. Support PoE per IEEE802.3af, POE+ per IEEE802.3at
www.logilink.com
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
Package Contents
1 x CAT.6A Keystone Jack, UTP
Packaging Informations
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
mm
kg
mm
pcs
kg
Made in China
