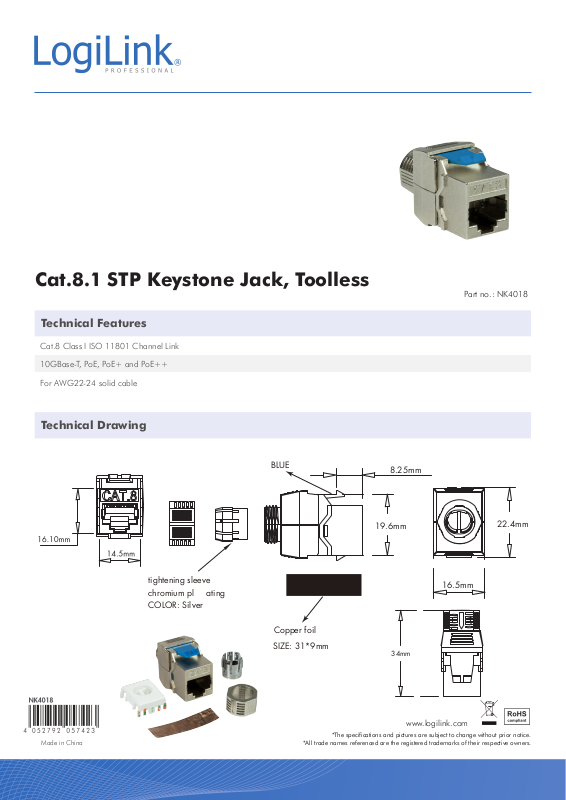

Cat.8.1 STP Keystone Jack, Toolless
Technical Features
Cat.8 Class I ISO 11801 Channel Link
10GBase-T, PoE, PoE+ and PoE++
For AWG22-24 solid cable
Technical Drawing
Part no.: NK4018
Made in China
tightening sleeve
chromium pl ating
COLOR: Silver
BLUE
Copper foil
SIZE: 31*9mm
*All trade names referenced are the registered trademarks of their respective owners.
8.25mm
19.6mm
16.5mm
34mm
www.logilink.com
*The specifications and pictures are subject to change without prior notice.
22.4mm
Installation
Insert cable into strain relief boot, strip off
1
30mm of the cable jacket. Turn back the outer
shielding layer and put a locking cap on it.
Notice the arrow of the locking cap, it needs to
be pointing forward.
Cut off the shield layer of each pair of lines.
2
If the diameter is less than 6.5mm, a tightening
sleeve should be added.
In order to thread easily, cut the length of the
3
four pairs lines as the picture on the right.
If the diameter of the wire is greater than
4
6.5mm, copper foil should be wrapped around
the shielding wire.
Align the slots of the wire cap, cover the wire
5
cap, and prepress it.
Close the back cover and assemble it.
6
Put on the locking cap and lock it clockwise.
7
Package Content
Cat.8.1 STP Keystone Jack, Toolless x 1
Packaging Information
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
Made in China
mm
kg
mm
pcs
kg
