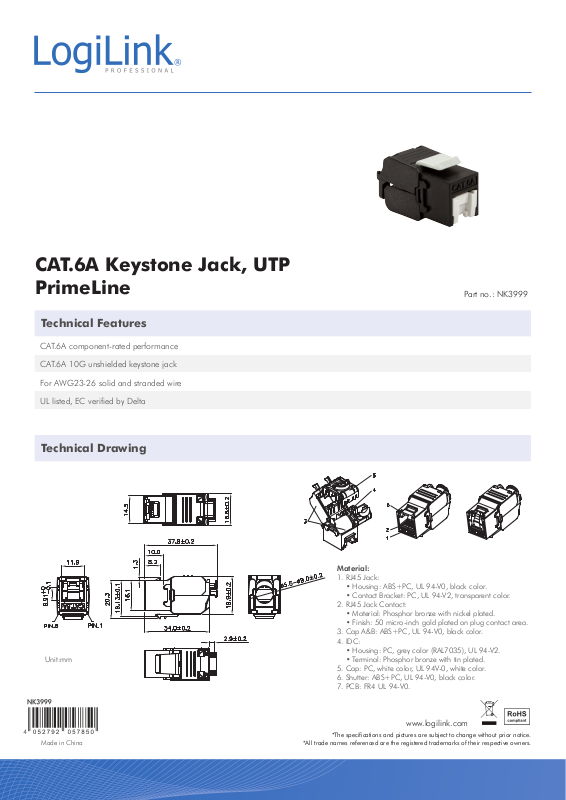

CAT.6A Keystone Jack, UTP
PrimeLine
Technical Features
CAT.6A component-rated performance
CAT.6A 10G unshielded keystone jack
For AWG23-26 solid and stranded wire
UL listed, EC verified by Delta
Technical Drawing
Part no.: NK3999
Unit:mm
Made in China
Material:
1. RJ45 Jack:
• Housing: ABS+PC, UL 94-V0, black color.
• Contact Bracket: PC, UL 94-V2, transparent color.
2. RJ45 Jack Contact:
• Material: Phosphor bronze with nickel plated.
• Finish: 50 micro-inch gold plated on plug contact area.
3. Cap A&B: ABS+PC, UL 94-V0, black color.
4. IDC:
• Housing: PC, grey color (RAL7035), UL 94-V2.
• Terminal: Phosphor bronze with tin plated.
5. Cap: PC, white color, UL 94V-0, white color.
6. Shutter: ABS+PC, UL 94-V0, black color.
7. PCB: FR4 UL 94-V0.
www.logilink.com
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
Package Content
CAT.6A Keystone Jack, UTP x 1
Packaging Information
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
mm
kg
mm
pcs
kg
Made in China
www.logilink.com
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
