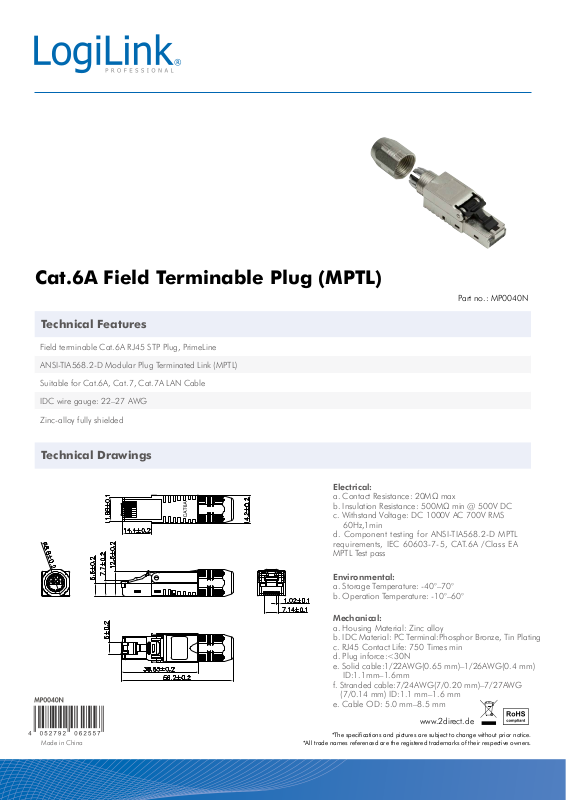

Cat.6A Field Terminable Plug (MPTL)
Technical Features
Field terminable Cat.6A RJ45 STP Plug, PrimeLine
ANSI-TIA568.2-D Modular Plug Terminated Link (MPTL)
Suitable for Cat.6A, Cat.7, Cat.7A LAN Cable
IDC wire gauge: 22–27 AWG
Zinc-alloy fully shielded

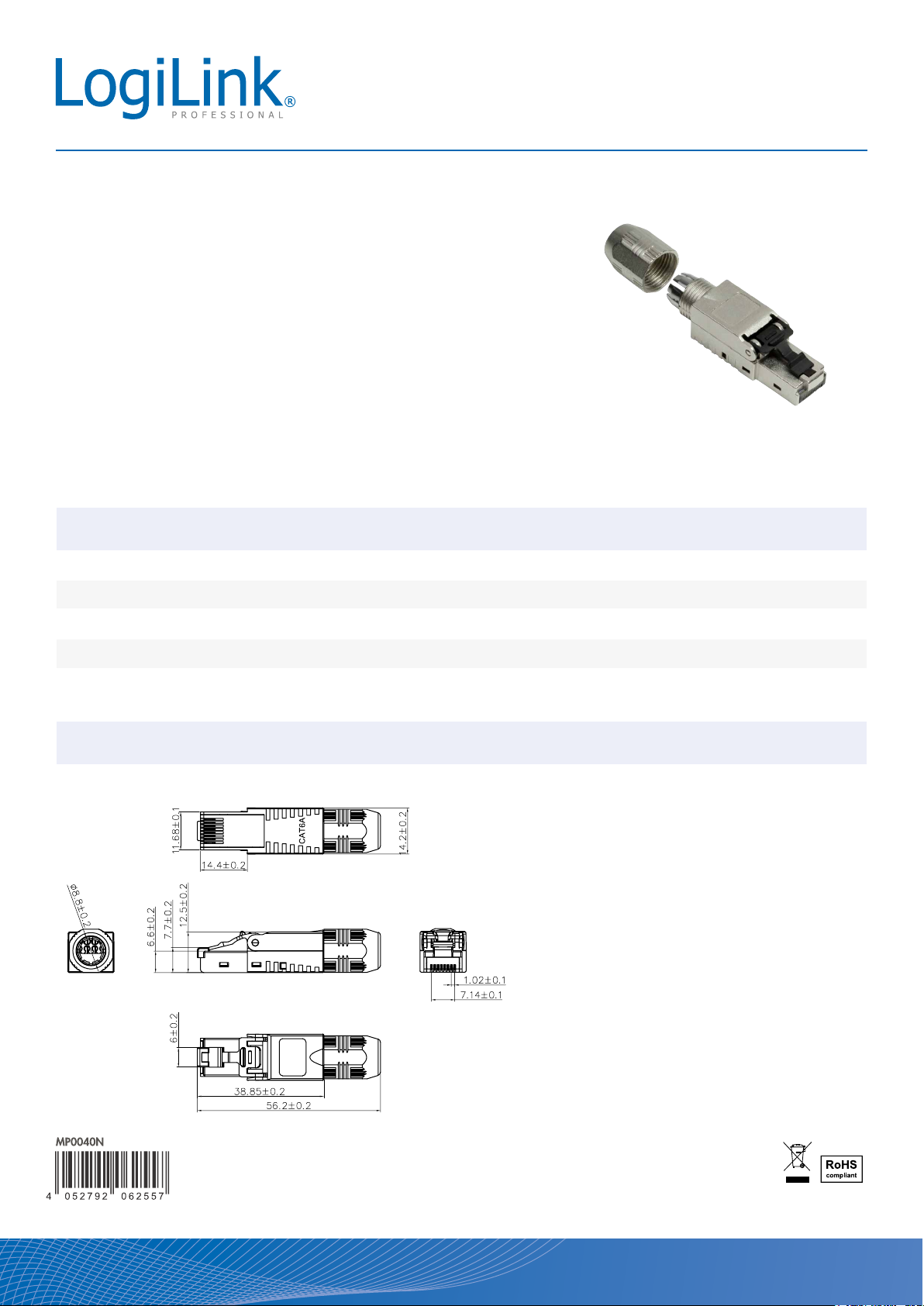

Technical Drawings
Electrical:
a. Contact Resistance: 20MΩ max
b. Insulation Resistance: 500MΩ min @ 500V DC
c. Withstand Voltage: DC 1000V AC 700V RMS
60Hz,1min
d. Component testing for ANSI-TIA568.2-D MPTL
requirements, IEC 60603-7-5, CAT.6A /Class EA
MPTL Test pass
Part no.: MP0040N
Made in China
Environmental:
a. Storage Temperature: -40°–70°
b. Operation Temperature: -10°–60°
Mechanical:
a. Housing Material: Zinc alloy
b. IDC Material: PC Terminal:Phosphor Bronze, Tin Plating
c. RJ45 Contact Life: 750 Times min
d. Plug inforce:<30N
e. Solid cable:1/22AWG(0.65 mm)–1/26AWG(0.4 mm)
ID:1.1mm–1.6mm
f. Stranded cable:7/24AWG(7/0.20 mm)–7/27AWG
(7/0.14 mm) ID:1.1 mm–1.6 mm
e. Cable OD: 5.0 mm–8.5 mm
www.2direct.de
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
