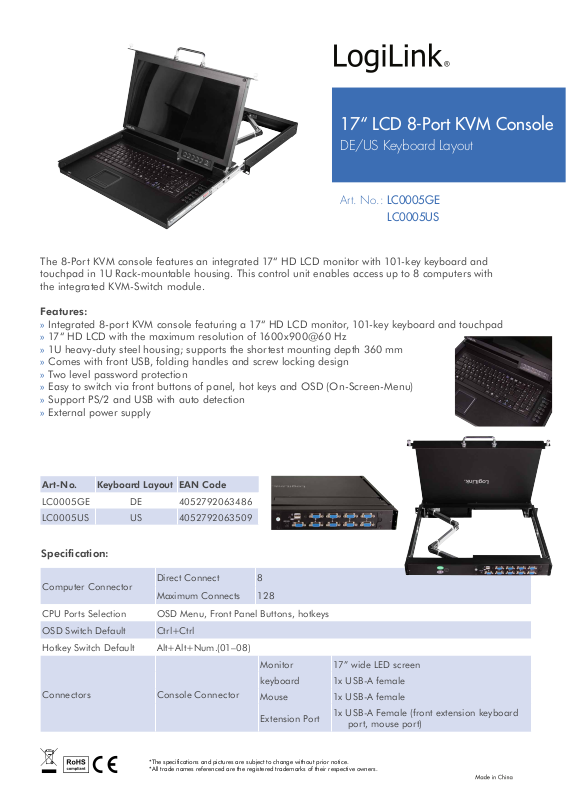

17“ LCD 8-Port KVM Console
DE/US Keyboard Layout
Art. No.: LC0005GE
LC0005US
The 8-Port KVM console features an integrated 17“ HD LCD monitor with 101-key keyboard and
touchpad in 1U Rack-mountable housing. This control unit enables access up to 8 computers with
the integrated KVM-Switch module.
Features:
» Integrated 8-port KVM console featuring a 17“ HD LCD monitor, 101-key keyboard and touchpad
» 17“ HD LCD with the maximum resolution of 1600x900@60 Hz
» 1U heavy-duty steel housing; supports the shortest mounting depth 360 mm
» Comes with front USB, folding handles and screw locking design
» Two level password protection
» Easy to switch via front buttons of panel, hot keys and OSD (On-Screen-Menu)
» Support PS/2 and USB with auto detection
» External power supply
Art-No.
LC0005GE DE 4052792063486
LC0005US US 4052792063509
Keyboard Layout
EAN Code
Specification:
Computer Connector
CPU Ports Selection
OSD Switch Default Ctrl+Ctrl
Hotkey Switch Default Alt+Alt+Num.(01–08)
Connectors Console Connector
Direct Connect 8
Maximum Connects 128
OSD Menu, Front Panel Buttons, hotkeys
Monitor 17” wide LED screen
keyboard 1x USB-A female
Mouse 1x USB-A female
Extension Port
1x USB-A Female (front extension keyboard
port, mouse port)
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Monitor
17“ LCD 8-Port KVM Console
DE/US Keyboard Layout
Art. No.: LC0005GE
LC0005US
Connectors
Key Switch
LED‘s Selected Two-digit digital tube display LED indicator
LED‘s Online 8x Red
Analog Mode Keyboard/Mouse USB, PS2
Mouse Touchpad mouse
Keyboard 101-key
Max Resolution 1600x900@60Hz
Scan Time Interval 3, 5, 10, 15, 20, 30, 40, 60 seconds (3 seconds by default)
Operation Environment
Physical Properties
PC Connector
Mouse
Power AC 100–250 V, DC 12 V/ 4 A
Connection Port
Selection
KVM Reset KVM operation panel function keys
Operation Temperature 0–50˚C
Storage Temperature -20 – 60˚C
Humidity 0–80% RH (no condensation)
Housing Metal
Dimensions 360x445x45 mm
Color Black
Weight 9.96 k g
KVM operation panel digital keys
8x VGA DB15 blue femalekeyboard
Package Contents:
» 1x 17“ LCD 8-Port KVM Console
» 8x KVM Dedicated Connection Cable
» 1x Power Adapter
» 1x Power Cord
» 1x Rack Mounting Kit
» 1x Screw Package
» 1x User Manual
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Package Informations:
» Packing Dimension: mm
» Packing Weight: kg
» Carton Dimension: mm
» Carton Q‘ty: pcs
» Carton Weight: kg
