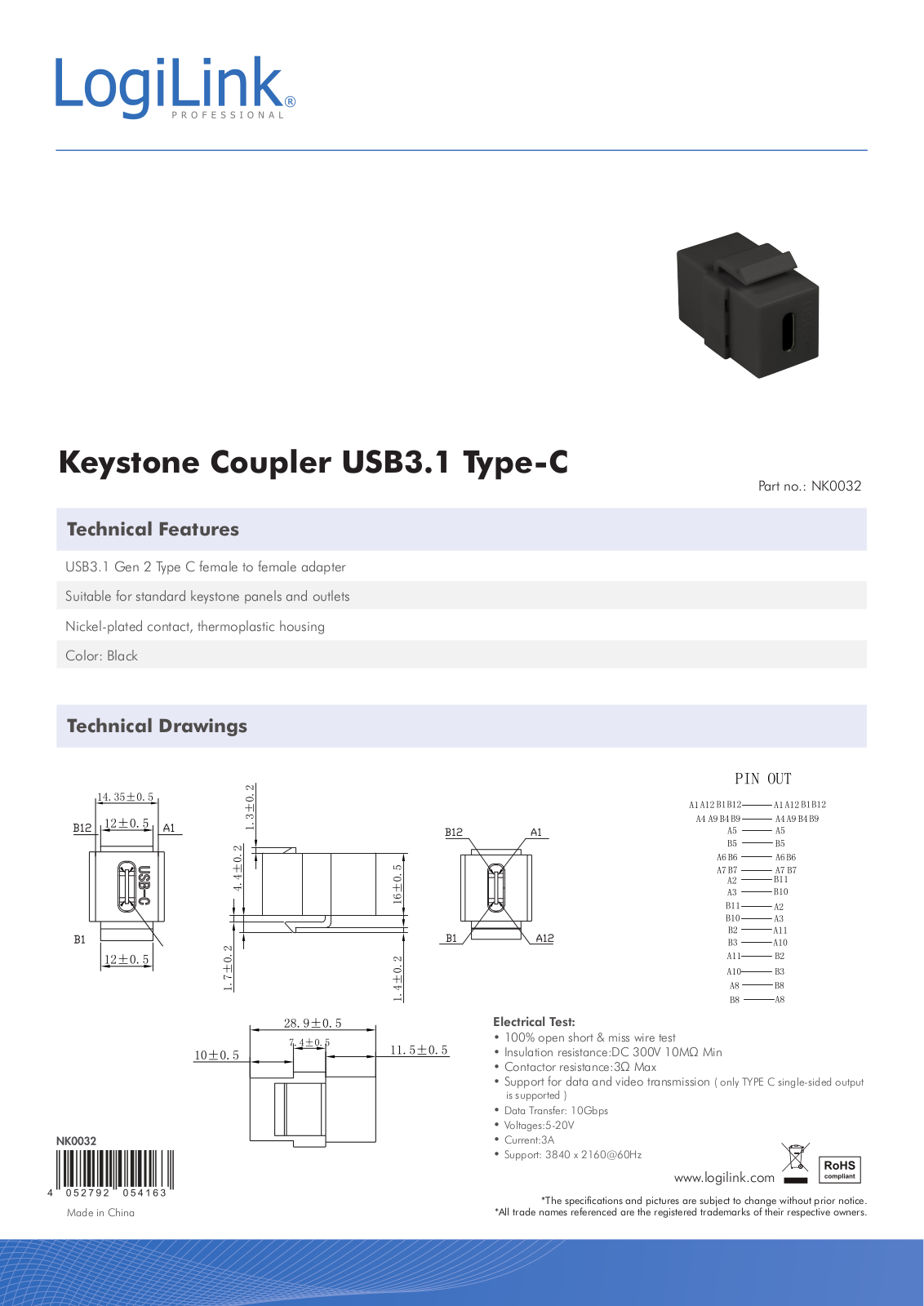

Keystone Coupler USB3.1 Type-C
Technical Features
USB3.1 Gen 2 Type C female to female adapter
Suitable for standard keystone panels and outlets
Nickel-plated contact, thermoplastic housing
Color: Black
Technical Drawings
Part no.: NK0032
Made in China
Electrical Test:
• 100% open short & miss wire test
• Insulation resistance:DC 300V 10MΩ Min
• Contactor resistance:3Ω Max
• Support for data and video transmission ( only TYPE C single-sided output
is supported )
• Data Transfer: 10Gbps
• Voltages:5-20V
• Current:3A
• Support: 3840 x 2160@60Hz
www.logilink.com
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.

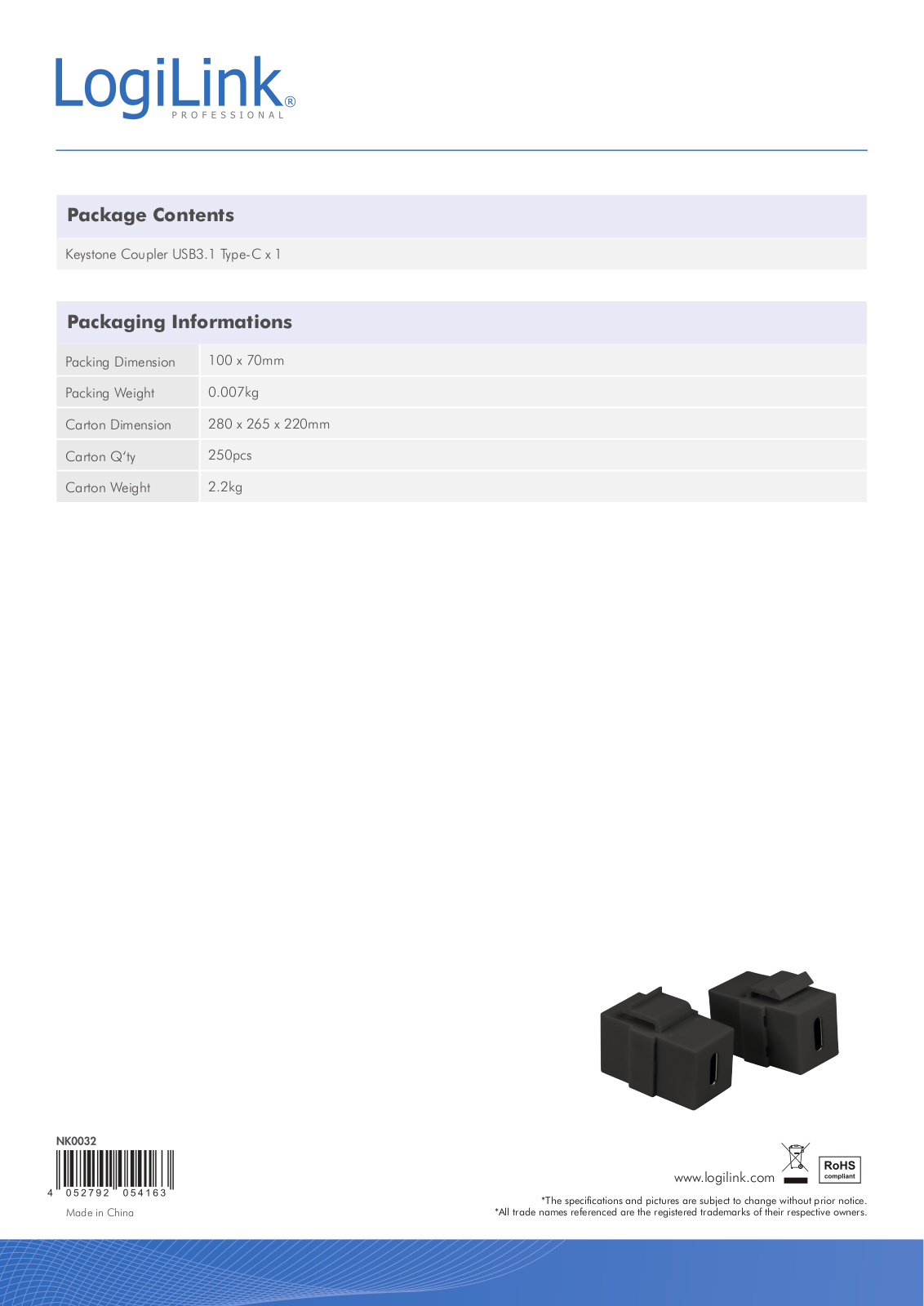

Package Contents
Keystone Coupler USB3.1 Type-C x 1
Packaging Informations
Packing Dimension
Packing Weight
Carton Dimension
Carton Q‘ty
Carton Weight
100 x 70mm
0.007kg
280 x 265 x 220mm
250pcs
2.2kg
Made in China
