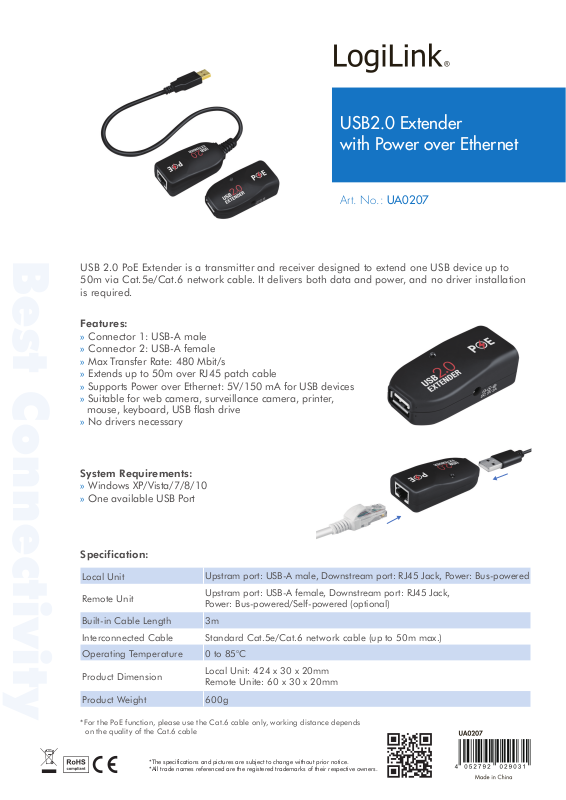

Page 1
USB2.0 Extender
with Power over Ethernet
Art. No.: UA0207
Best Connectivity
USB 2.0 PoE Extender is a transmitter and receiver designed to extend one USB device up to
50m via Cat.5e/Cat.6 network cable. It delivers both data and power, and no driver installation
is required.
Features:
» Connector 1: USB-A male
» Connector 2: USB-A female
» Max Transfer Rate: 480 Mbit/s
» Extends up to 50m over RJ45 patch cable
» Supports Power over Ethernet: 5V/150 mA for USB devices
» Suitable for web camera, surveillance camera, printer,
mouse, keyboard, USB flash drive
» No drivers necessary
System Requirements:
» Windows XP/Vista/7/8/10
» One available USB Port
Specification:
Local Unit
Remote Unit
Built-in Cable Length 3m
Interconnected Cable Standard Cat.5e/Cat.6 network cable (up to 50m max.)
Operating Temperature 0 to 85°C
Product Dimension
Product Weight 600g
*For the PoE function, please use the Cat.6 cable only, working distance depends
on the quality of the Cat.6 cable
Upstram port: USB-A male, Downstream port: RJ45 Jack, Power: Bus-powered
Upstram port: USB-A female, Downstream port: RJ45 Jack,
Power: Bus-powered/Self-powered (optional)
Local Unit: 424 x 30 x 20mm
Remote Unite: 60 x 30 x 20mm
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Page 2
USB2.0 Extender
with Power over Ethernet
Art. No.: UA0207
Best Connectivity
Application Diagram:
1 2 3
1. Connect the USB plug of the Local Unit to the host system or PC.
2. Connect the Local Unit and Remote Unit via a network cable.
3. Connect USB peripherals to the Remote Unit.
*The network cable is not included.
Package Contents:
» 1 x USB2.0 PoE Extender
» 1 x Remote Unit
» 1 x User Manual
Package Information:
» Packing Dimension: 250 x 155 x 20mm
» Packing Weight: 0.1kg
» Carton Dimension: 500 x 270 x 375mm
» Carton Q‘ty: 50pcs
» Carton Weight: 6.3kg
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
