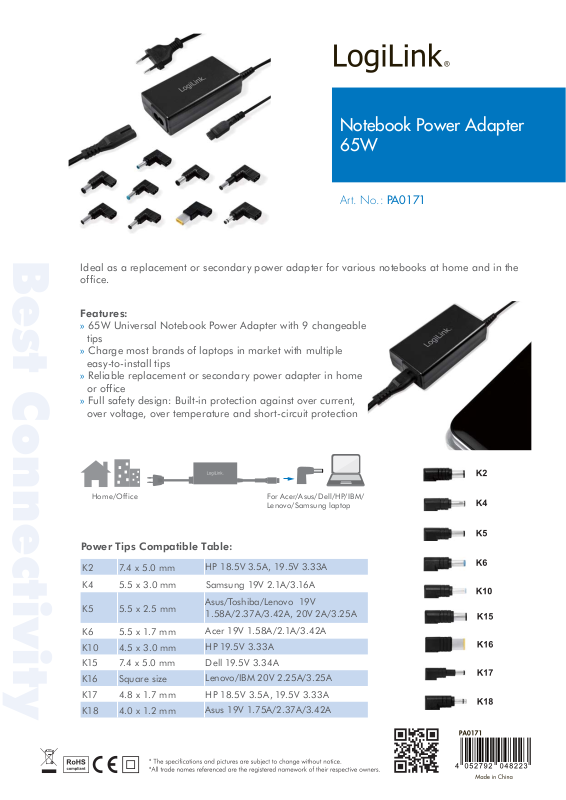

Notebook Power Adapter
65W
Art. No.: PA0171
Best Connectivity
Ideal as a replacement or secondary power adapter for various notebooks at home and in the
office.
Features:
» 65W Universal Notebook Power Adapter with 9 changeable
tips
» Charge most brands of laptops in market with multiple
easy-to-install tips
» Reliable replacement or secondary power adapter in home
or office
» Full safety design: Built-in protection against over current,
over voltage, over temperature and short-circuit protection
Home/Office For Acer/Asus/Dell/HP/IBM/
Power Tips Compatible Table:
K2 7.4 x 5.0 mm
K4 5.5 x 3.0 mm Samsung 19V 2.1A/3.16A
K5 5.5 x 2.5 mm
K6 5.5 x 1.7 mm
K10 4.5 x 3.0 mm
K15 7.4 x 5.0 mm Dell 19.5V 3.34A
K16 Square size
K17 4.8 x 1.7 mm HP 18.5V 3.5A, 19.5V 3.33A
K18 4.0 x 1.2 mm
HP 18.5V 3.5A, 19.5V 3.33A
Asus/Toshiba/Lenovo 19V
1.58A/2.37A/3.42A, 20V 2A/3.25A
Acer 19V 1.58A/2.1A/3.42A
HP 19.5V 3.33A
Lenovo/IBM 20V 2.25A/3.25A
Asus 19V 1.75A/2.37A/3.42A
Lenovo/Samsung laptop
Page 2
Notebook Power Adapter
65W
Art. No.: PA0171
Best Connectivity
Specification:
Input Voltage
Output Power 18.5-20V 2.1-3.5A 65W max
Efficiency
Dimension
Weight
Cable Length 1.8m
AC Cable Length
Package Contents:
» 1 x Power Adapter for Notebook
» 9 x Changeable Tips
» 1 x AC Power Cord
» 1 x User Manual
Package Informations:
» Packing Dimension: 191 x 127.5 x 42mm
» Packing Weight: kg
» Carton Dimension: 450 x 268 x 205mm
» Carton Q‘ty: 20pcs
» Carton Weight: 9.1kg
AC 100-240V 50/60Hz 1.5A max
Level V
92 x 46 x 23mm (not including cable)
224g
1.2m
Warning
*For use with Information Technology Equipment.
*Compare the specifications of your device with the specifications of the adapter.
The power current (A) of your device should be equal to or lower than the power
current of the power supply.
*Only to be used indoor.
*Only to be used after powering on.
*Only to be used within max load.
*Remove the power adapter from its power source after use.
