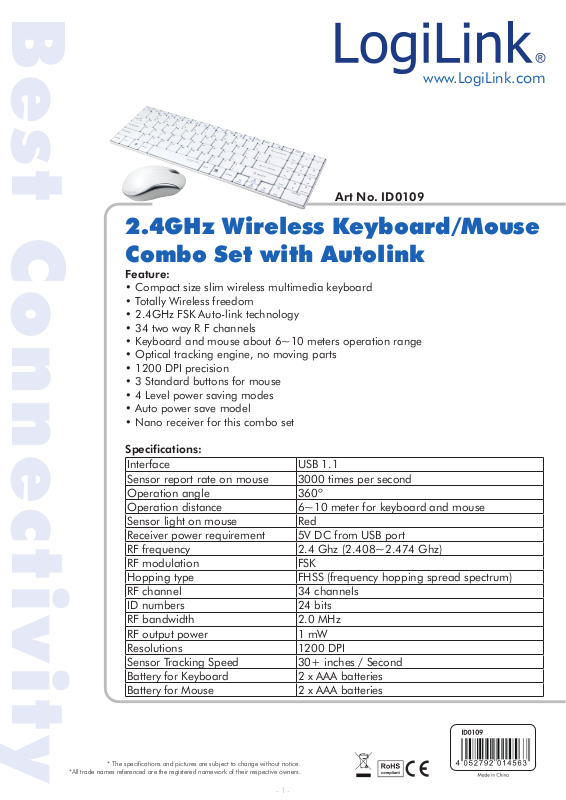

Best Connectivity
www.LogiLink.
Art No. ID0109
com
2.4GHz Wireless Keyboard/Mouse
Combo Set with Autolink
Feature:
• Compact size slim wireless multimedia keyboard
• Totally Wireless freedom
• 2.4GHz FSK Auto-link technology
• 34 two way R F channels
• Keyboard and mouse about 6~10 meters operation range
• Optical tracking engine, no moving parts
• 1200 DPI precision
• 3 Standard buttons for mouse
• 4 Level power saving modes
• Auto power save model
• Nano receiver for this combo set
Specifications:
Interface USB 1.1
Sensor report rate on mouse 3000 times per second
Operation angle 360º
Operation distance 6~10 meter for keyboard and mouse
Sensor light on mouse Red
Receiver power requirement 5V DC from USB port
RF frequency 2.4 Ghz (2.408~2.474 Ghz)
RF modulation FSK
Hopping type FHSS (frequency hopping spread spectrum)
RF channel 34 channels
ID numbers 24 bits
RF bandwidth 2.0 MHz
RF output power 1 mW
Resolutions 1200 DPI
Sensor Tracking Speed 30+ inches / Second
Battery for Keyboard 2 x AAA batteries
Battery for Mouse 2 x AAA batteries
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
- 1 -
Best Connectivity
www.LogiLink.
Art No. ID0109
com
2.4GHz Wireless Keyboard/
Mouse Combo Set with Autolink
Multimedia Hotkeys functions:
FN+ESC=Media Player
FN+F1=Play/Pause
FN+F2=Previous Track
FN+F4=Volume Up
FN+F3=Next Track
FN+F6=Mute
FN+F7=Web home
FN+F5=Volume Down
FN+F8=Search
FN+F9=Favorite
FN+F10=Email
FN+F11=Screen Lock
FN+F12=My computer
FN+Insert=Calculator
System Requirement:
• Windows ME /2000 /XP/ Vista/ 7/ 8
Package Contents:
Package Content:
•1 x Wireless Keyboard
•1 x Wireless Mouse
•1 x USB Nano Receiver
•4 x AAA Batteries
•1 x User Manual
Packaging Information:
• Packing Dimension: 411 x 115 x 46mm
• Packing Weight: 0.5kg
• Carton Dimension: 500 x 435 x 260mm
• Carton Q'ty: 20pcs
• Carton Weight: 10.1kg
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
- 2 -
