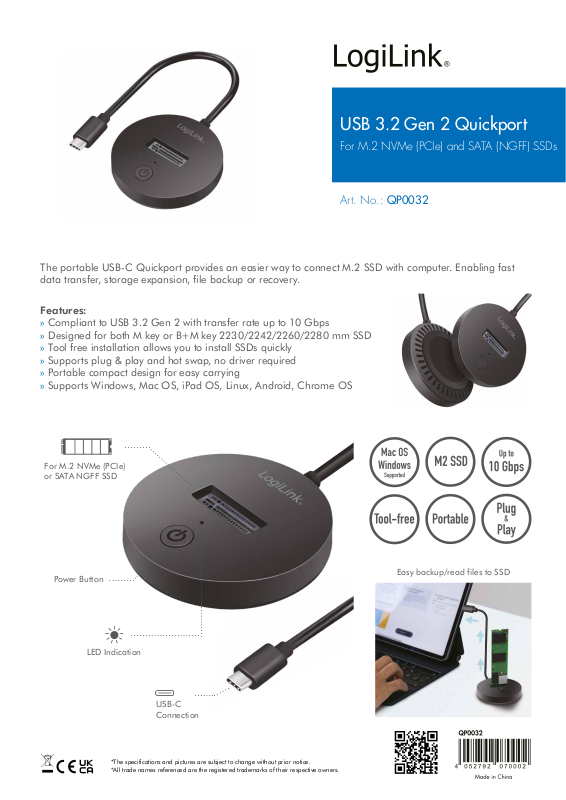

USB 3.2 Gen 2 Quickport
For M.2 NVMe (PCIe) and SATA (NGFF) SSDs
Art. No.: QP0032
The portable USB-C Quickport provides an easier way to connect M.2 SSD with computer. Enabling fast
data transfer, storage expansion, file backup or recovery.
Features:
» Compliant to USB 3.2 Gen 2 with transfer rate up to 10 Gbps
» Designed for both M key or B+M key 2230/2242/2260/2280 mm SSD
» Tool free installation allows you to install SSDs quickly
» Supports plug & play and hot swap, no driver required
» Portable compact design for easy carrying
» Supports Windows, Mac OS, iPad OS, Linux, Android, Chrome OS
For M.2 NVMe (PCIe)
or SATA NGFF SSD
Power Button
LED Indication
Easy backup/read files to SSD
USB-C
Connection
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Specification:
USB Version USB 3.2 Gen 2
Connection USB-C male
Interface M.2 PCIe
Data Transfer Rate Up to 10 Gbps
Thunderbolt 3 Compatible Yes
LED Indication Blue LED for power and activity
Supporting M.2 PCIe SSD Type B+M Key & M Key, 2230/2242/2260/2280
M.2 PCIe Control Standard SATA NGFF, NVMe
SATA Slot Support Type 2.5“ (6.35 cm)/3.5“ (8.89 cm) HDD and SSD
Supporting SSD Capacity Up to 8 TB
Hot Plug & Plug & Play Yes
Power On/Off Button Yes
Power By USB bus powered
Standby Power Consumption 0.5 W
Compatibility Windows, Mac OS, iPad OS, Android, Chrome OS and Linux
Housing Material ABS
Color Black
Operating Temperature 0–40°C
Operating Humidity 20– 80% RH (no condensation)
Dimensions 23.7 x 6 x 1.5 cm (cable included)
Weight 38.5 g
Cable Length 15 cm
Package Contents:
» 1x USB-C Quickport
» 1x User Manual
Package Information:
» Packing Dimension: 75 x 25 x 95 mm
» Packing Weight: 0.04 kg
» Carton Dimension: 405 x 400 x 155 mm
» Carton Q‘ty: 100 pcs
» Carton Weight: 5 kg
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
