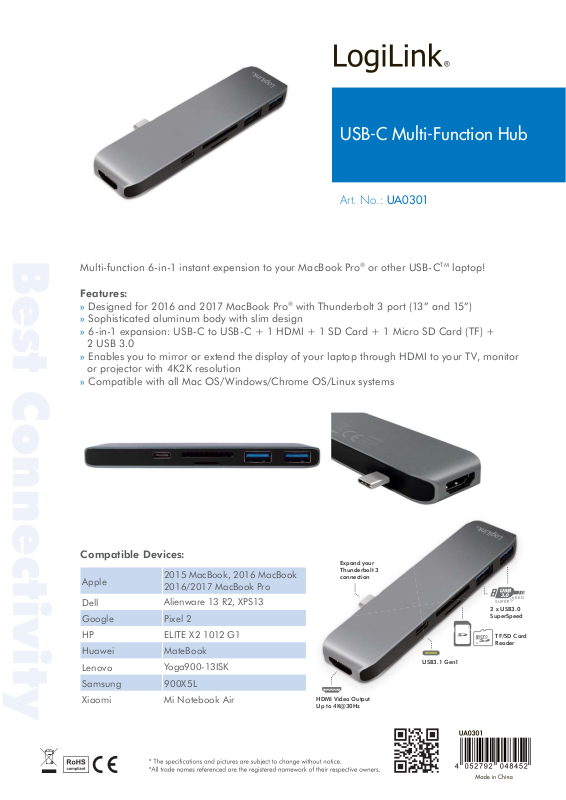

Logilink IADAP USBC-MULTI6 Datasheet

USB-C Multi-Function Hub
Art. No.: UA0301
Best Connectivity
Multi-function 6-in-1 instant expension to your MacBook Pro® or other USB-CTM laptop!
Features:
» Designed for 2016 and 2017 MacBook Pro® with Thunderbolt 3 port (13” and 15”) » Sophisticated aluminum body with slim design » 6-in-1 expansion: USB-C to USB-C + 1 HDMI + 1 SD Card + 1 Micro SD Card (TF) +
2 USB 3.0
» Enables you to mirror or extend the display of your laptop through HDMI to your TV, monitor
or projector with 4K2K resolution
» Compatible with all Mac OS/Windows/Chrome OS/Linux systems
Compatible Devices:
Apple
Dell
Google Pixel 2
HP ELITE X2 1012 G1
Huawei MateBook
Lenovo
Samsung 900X5L
Xiaomi Mi Notebook Air
2015 MacBook, 2016 MacBook 2016/2017 MacBook Pro
Alienware 13 R2, XPS13
Yoga900-13ISK
Expand your Thunderbolt 3 connection
HDMI Video Output Up to 4K@30Hz
USB3.1 Gen1
E
P
S
S
U
P
E
R
TF/SD Card Reader
D
E
USB-C Multi-Function Hub
Art. No.: UA0301
Best Connectivity
Specification:
Access Port USB-C male
Interface 1*HDMI + 1*USB-C + 2*USB3.0 + SD&TF card
System Requirements Mac/Windows/Linux operating systems
Power Source USB BUS-powered
Construction Aluminum Alloy + ABS
Dimension 116 x 28.5 x 10.5mm
Weight 42g
USB3.0 Transmission Speed 5Gbps (downwards compatible USB2.0/1.0)
USB Output Voltage +5V (±0.25V)
USB Output Current ≤900mA
Working Temperature -10ºC~45ºC
Storage Temperature -20ºC~75ºC
*Max Capacity for TF/SD card is 2TB.
Package Contents:
» 1 x USB-C Multi-Function Hub » 1 x User Manual
Package Informations:
» Packing Dimension: 163 x 75 x 25mm » Packing Weight: kg » Carton Dimension: 520 x 320 x 185mm » Carton Q‘ty: 80pcs » Carton Weight: kg
