HDMI™ Extender Set
via Network Cable
1080p/60 Hz, Extend up to 50 m
Art. No.: HD0057
Allows you to extend HDMI video/audio and USB signals by up to 50 m over a networking cable; with
resolution up to 1080p/60 Hz and two USB 2.0 connections. Also, it works to extend IR signals from
remote controls of the video source.
Features:
» Supports 1080P/60 Hz up to 50 m over a single Cat. 5e/6/7/8 cable
» Bandwidth: 2,25 Gbps/225 MHz per channel
» Supports 12 bit per channel (36 bit all channels) deep color
» Compatible with HDCP 1.3 and supports Full 3D, IR, LAN and KVM functions
» Supports uncompressed audio such as LPCM 7.1
» Supports compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby
True H D)
» Compatible with Windows, Mac OS and Linux OS
» Plug and Play, no software installation required

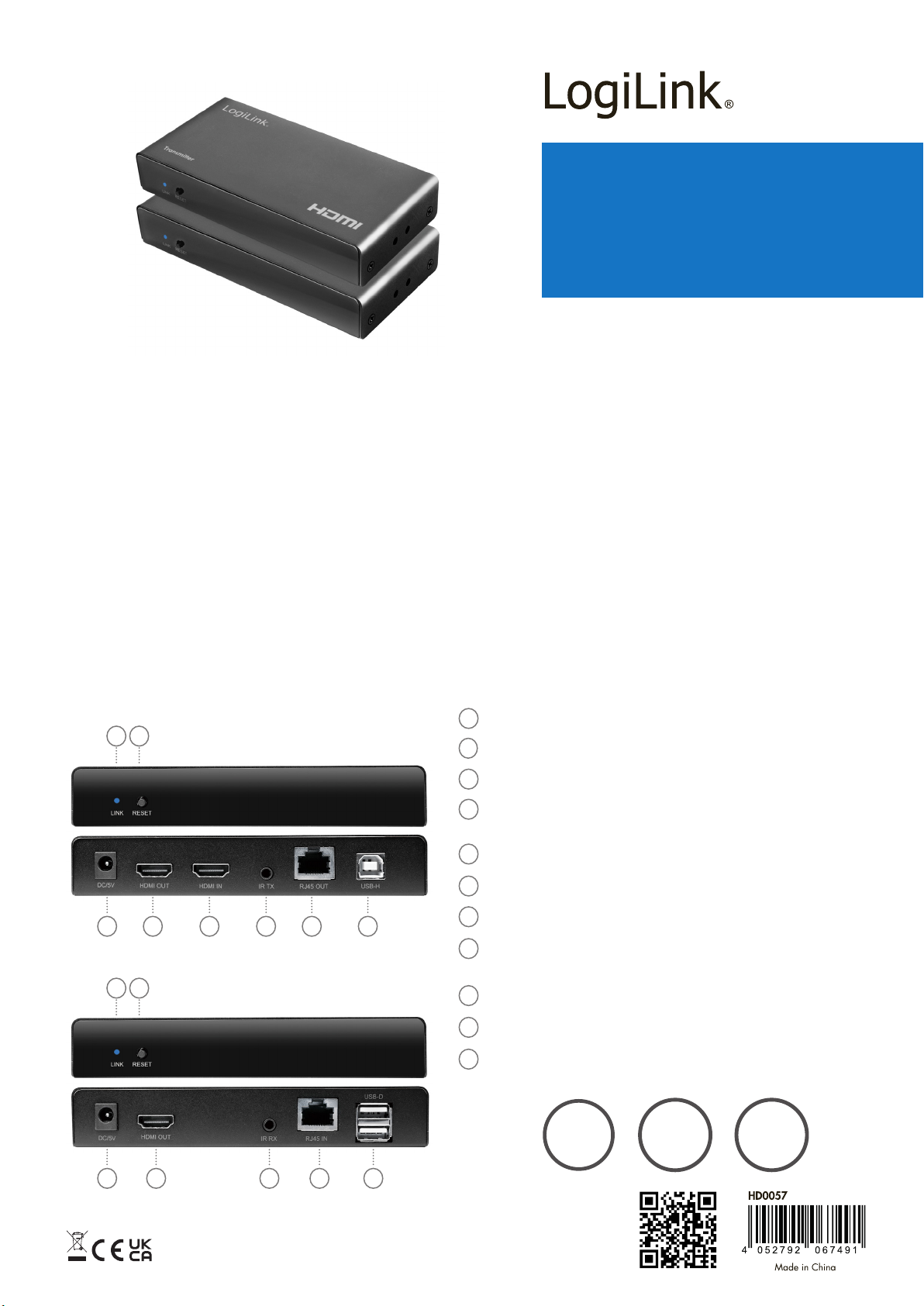

Transmitter
aab
c
Receiver
c
Connection LED indecation
a
Reset button
b
Connect to DC 5 V Power Supply
c
Connect to output device (HDMI TV/monitor) via HDMI male
d
output port
Connect to input source via HDMI male input port
e
IR signal output port
f
Connect the network cable to Receiver
d
e
g
f
h
b
d
i
j
k
g
Connect from PC or Laptop for data transmit to or control
h
from the Receiver’s USB-D slots
IR signal input port
i
Connect the network cable to Transmitter
j
Connect to USB peripheral devices such as printer, keyboard,
k
mouse, USB flash drive etc.
1080p
Full HD
3D
Support
HDCP
Support
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.

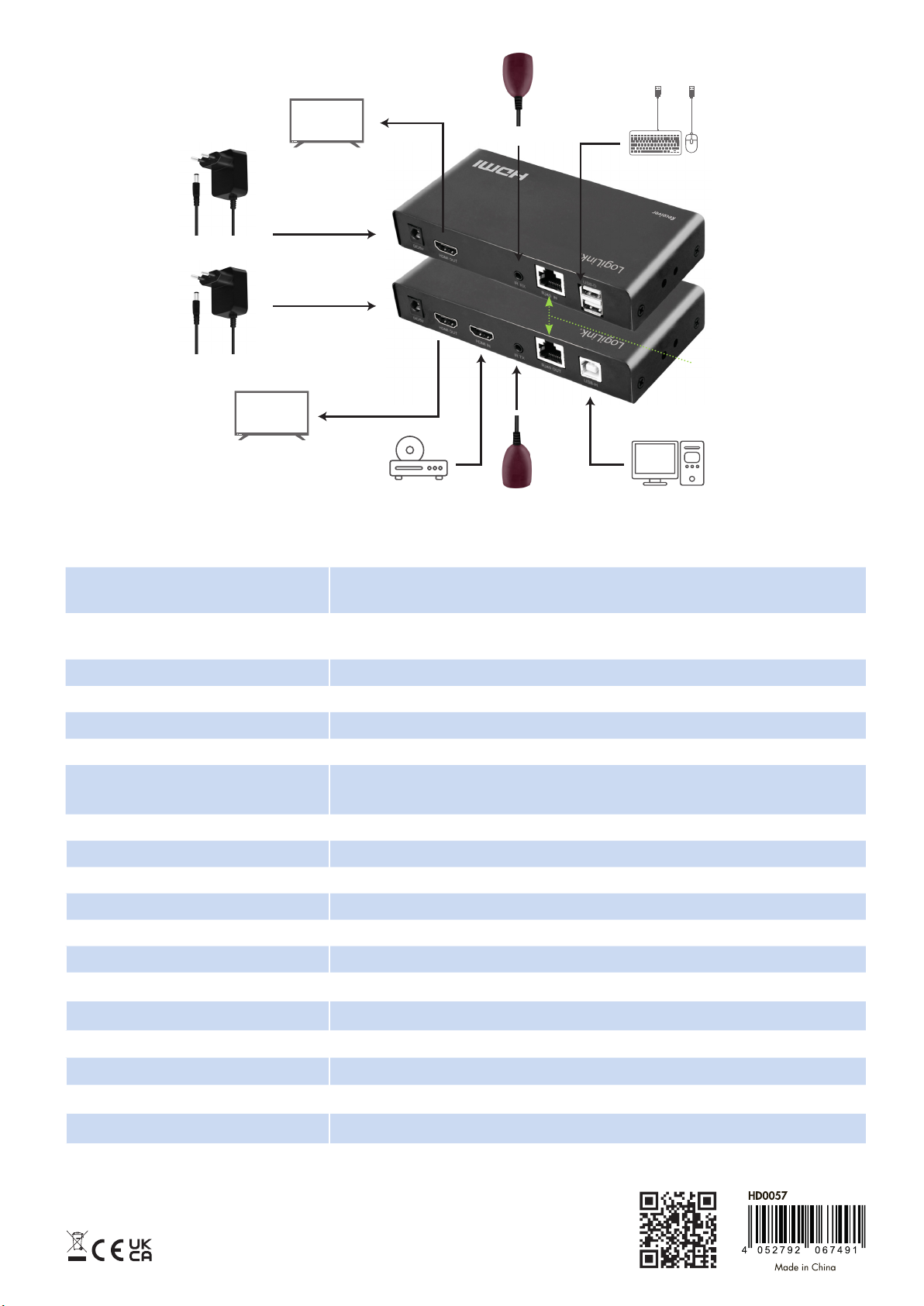

Power Adapter 5 V/1 A
TV
IR Cable
USB devices
Power Adapter 5 V/1 A
TV
DVD Player
IR Cable
Specifications:
Transmitter (TX) Interface
Receiver (RX) Interface
HDMI Version 1.3
HDCP Version 1.3 (only support on Transmitter)
Working Distance 50 m
DDC (Display Data Channel) Yes
Output Resolution
1x RJ45 Jack, 2x HDMI-A female, 1x USB-B female, 1x DC power jack, 1x IR
port
1x RJ45 Jack, 1x HDMI-A female, 2x USB-A female, 1x DC power jack,
1x IR port
480i@60 Hz, 576i@50 Hz, 1080i@50/60 Hz, 480p@60 Hz, 576p@50Hz,
720p@50/60 Hz, 1080p@24/25/30/50/60 Hz
Computer
Network
Cable
Video Bandwith 2,25 Gbps/225 MHz
Deep Color 12 bi t
IR Support Yes
3D Support Yes
KVM Support Yes
DDC (Display Data Channel) Yes
HDMI Loop Out Yes
Chassis Material Yes
Power Consumption TX: 2 W, RX: 1 W
Power Supply 5 V/1 A (5 W)
Uncompressed Audio L P C M 7.1
Compressed Audio DTS, Dolby Digital, DTS-HD Master Audio™, Dolby TrueHD
Networking Cable Cat 5 E /6/ 7/ 8
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
