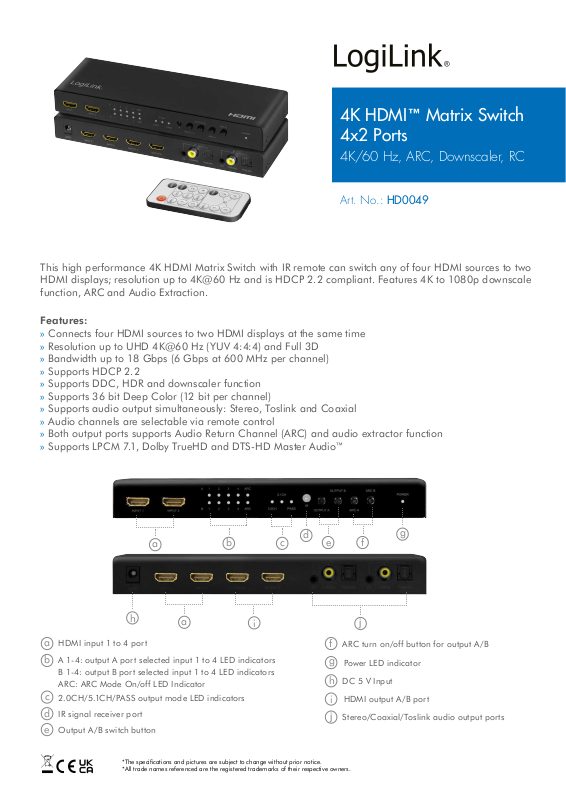

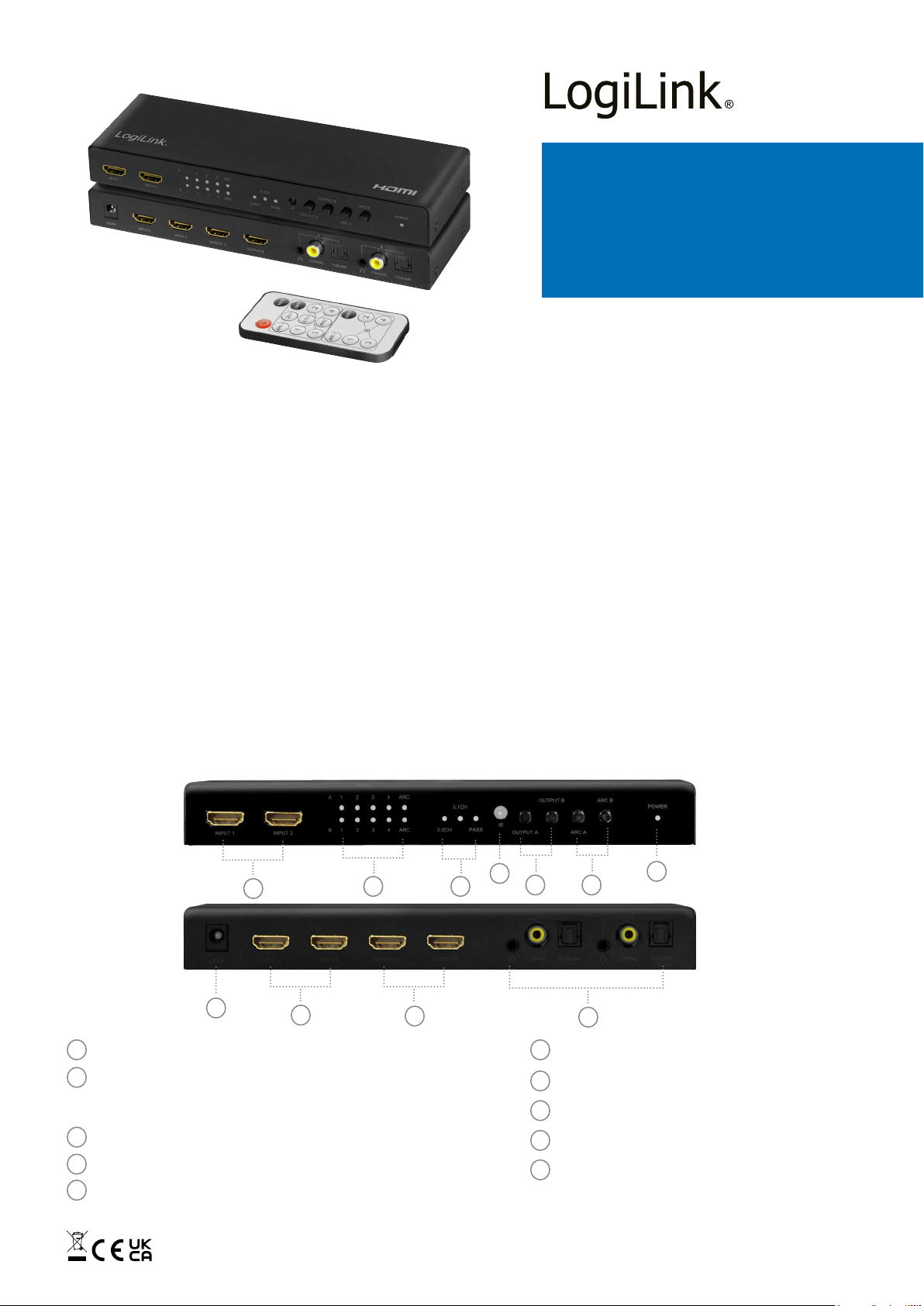

Page 1
4K HDMI™ Matrix Switch
4x2 Ports
4K/60 Hz, ARC, Downscaler, RC
Art. No.: HD0049
This high performance 4K HDMI Matrix Switch with IR remote can switch any of four HDMI sources to two
HDMI displays; resolution up to 4K@60 Hz and is HDCP 2.2 compliant. Features 4K to 1080p downscale
function, ARC and Audio Extraction.
Features:
» Connects four HDMI sources to two HDMI displays at the same time
» Resolution up to UHD 4K@60 Hz (YUV 4:4:4) and Full 3D
» Bandwidth up to 18 Gbps (6 Gbps at 600 MHz per channel)
» Supports HDCP 2.2
» Supports DDC, HDR and downscaler function
» Supports 36 bit Deep Color (12 bit per channel)
» Supports audio output simultaneously: Stereo, Toslink and Coaxial
» Audio channels are selectable via remote control
» Both output ports supports Audio Return Channel (ARC) and audio extractor function
» Supports LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio™
a
h
HDMI input 1 to 4 port
a
A 1-4: output A port selected input 1 to 4 LED indicators
b
B 1-4: output B port selected input 1 to 4 LED indicators
ARC: ARC Mode On/off LED Indicator
c
2.0CH/5.1CH/PASS output mode LED indicators
IR signal receiver port
d
e
Output A/B switch button
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
a
b c
d
e
i
f
g
h
i
j
f
j
ARC turn on/off button for output A/B
Power LED indicator
DC 5 V Input
HDMI output A/B port
Stereo/Coaxial/Toslink audio output ports
g

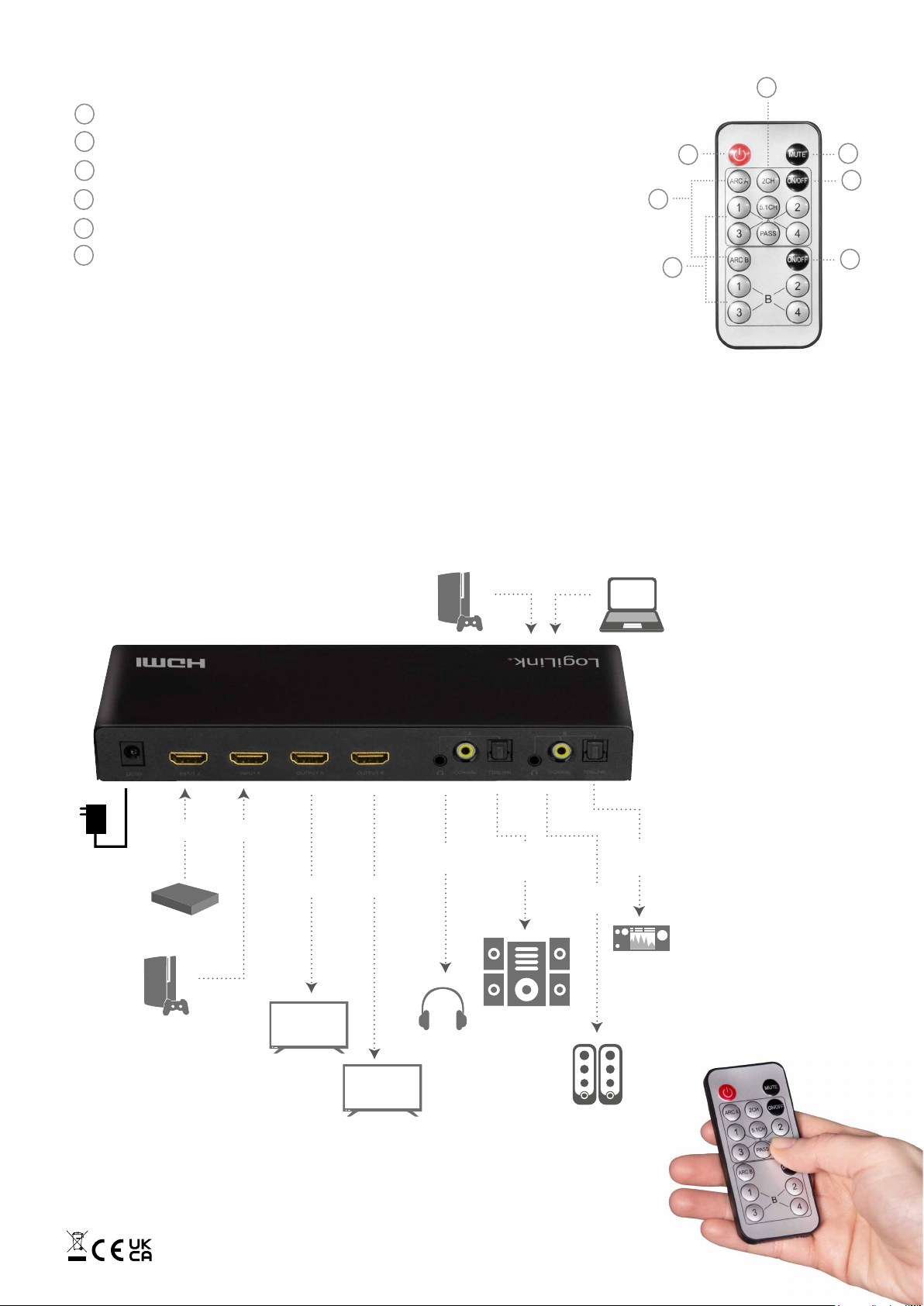

Page 2
o
Power button
k
MUTE: turn off/on the extract audio
l
m
ARC A/B: turn off/on the Audio Return Function (ARC) for OUTPUT A /B port
n
ON/OFF: Turn on or off the video source that connected to corresponding output
o
2CH/5.1CH/PASS: select the extract audio channels
Number 1, 2, 3, 4: select the corresponding video source for each output
P
k l
m
p
4 IN 2 OUT Matrix
Easily send any of 4 HDMI inputs to output A and/or output B. Two outputs’ videos can be different or
the same. Ideal for home theater, office, school, conference room, shopping mall, hotel or museum.
n
n
Power
Adapter
Game
Console
Input 3 Input 4
Apple T V
Output A Output B
TV
Game
Console
Stereo Audio
Output
Headphone
Input 1 & 2
Coaxial/Toslink
Audio Output
5.1C H Tosl ink
Speaker
Notebook
Coaxial/Toslink
Audio Output
Stereo Audio
Output
Amplifier
TV
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Speaker

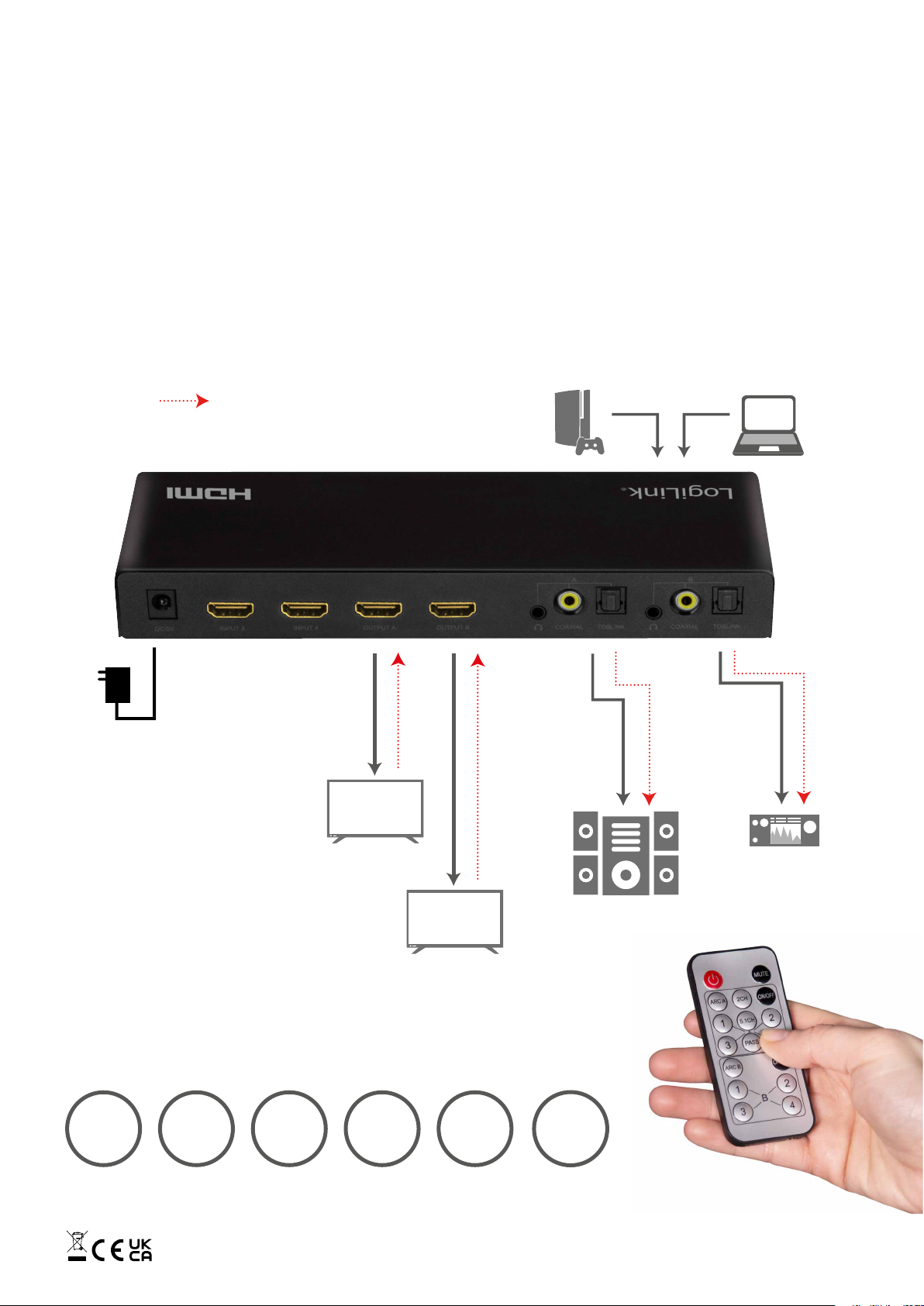

Page 3
Audio Return Channel (ARC)
With the ARC buttons on the device, you can configure the ARC channel fed by TV (with ARC support).
Great for reduceing your cable clutter and simplify your installation.
4K-to-1080P Downscaling
Route your 4K video sources to 4K displays and 1080p displays simultaneously via downscaling.
Mixed output resolutions offer you the flexibility to distribute your display.
Notebook
ARC audio signal flow
Game
Console
4K
60Hz
Power
Adapter
Premium
High
Speed
3D
Support
Output A
TV
108 0P
Output B
HDCP
Support
HDM I
Cable
with
ARC
TV
4K
Downscale
Function
HDM I
Cable
with
ARC
Amplifier
5.1C H Tosl ink
Speaker
ARC
Function
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Page 4
Specifications:
Input Ports 4x HDMI-A female, 1x DC power jack
Output Ports 2x HDMI-A female, 2x Coaxial, 2x SPDIF (Toslink), 2x stereo jack
HDMI Version 2.0
HDCP Version 2.2
HDMI ARC Yes
HDMI HDR Yes
480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz,
Output Resolution
Video Bandwith Up to 18 Gbps
3D Supporting Yes
Input and Output DDC Signal Yes
SPDIF Interface Yes
Switch Manual Switch for output
Chassis Material Metal
LED Indicator Yes
576p/50 Hz, 720p/50/60 Hz, 1080p/24/25/30/50/60 Hz,
4K@24/25/30 Hz, 4K@50/60 Hz
IR Remote Support Yes
Power Consumption 5 W max.
Power Supply 5 V/2 A
Uncompressed Audio L P C M 7.1
HDMI: DTS-HD Master Audio™, Dolby TrueHD
Compressed Audio
Operating Temperature 0˚C–70˚C
Operating Humidity 10% –85% RH (no condensation)
Dimensions 21 x 6.6 x 2.6 cm
Weight 340 g
SPDIF: Coaxial:DTS/Dolby Digital
Coaxial: DTS/Dolby Digital
Specification of External Power Supply:
Input Voltage 100–240 V, 50/60 Hz 0.4 A max.
Output Power 5 V/2 A, 10 W
DC Plug 5.5 x 2.1 mm
Dimensions 56 x 40 x 61 mm
Cable Length 1.2 m
Weight 82 g
Package Contents:
» 1x 4K HDMI Matrix Switch
» 1x Power Adapter
» 1x Remote Control
» 1x User Manual
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Package Information:
» Packing Dimension: 243 x 196 x 60 mm
» Packing Weight: 0.6 kg
» Carton Dimension: 505 x 235 x 340 mm
» Carton Q‘ty: 10 pcs
» Carton Weight: 6.6 kg
