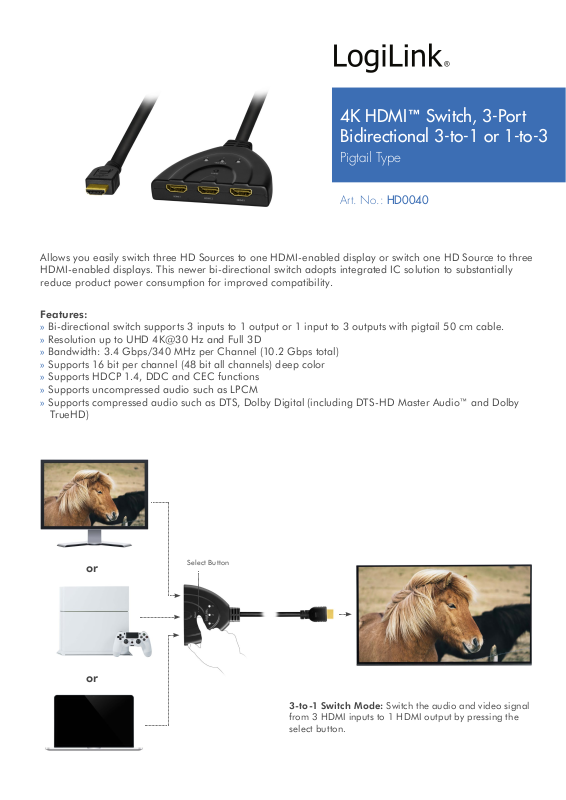

4K HDMI™ Switch, 3-Port
Bidirectional 3-to-1 or 1-to-3
Pigtail Type
Art. No.: HD0040
Allows you easily switch three HD Sources to one HDMI-enabled display or switch one HD Source to three
HDMI-enabled displays. This newer bi-directional switch adopts integrated IC solution to substantially
reduce product power consumption for improved compatibility.
Features:
» Bi-directional switch supports 3 inputs to 1 output or 1 input to 3 outputs with pigtail 50 cm cable.
» Resolution up to UHD 4K@30 Hz and Full 3D
» Bandwidth: 3.4 Gbps/340 MHz per Channel (10.2 Gbps total)
» Supports 16 bit per channel (48 bit all channels) deep color
» Supports HDCP 1.4, DDC and CEC functions
» Supports uncompressed audio such as LPCM
» Supports compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby
TrueHD)
or
or
Select Button
3-to-1 Switch Mode: Switch the audio and video signal
from 3 HDMI inputs to 1 HDMI output by pressing the
select button.
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Select Button
or
or
1-to-3 Switch Mode: Supports 1 HD source on 3 HD monitors
or projectors, but only one of the three monitors can play freely
every time via the switch button.
Specifications:
Interface 1x HDMI-A male, 3x HDMI-A female, 1x Mini USB female for power
HDMI Version 1.4
HDCP Version 1.4
Output Resolution
480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz, 576p/50 Hz,
720p/50/60 Hz, 1080p/24/25/30/50/60 Hz, 4K@24/25/30 Hz
Video Bandwith 3.4 Gbps/340 MHz
CEC (Consumer Electronics Control) Yes
DDC (Display Data Channel) Yes
LED Indicator Yes
Chassis Material ABS
3D Supporting Yes
Power Consumption 5 W max.
Uncompressed Audio L P C M 7.1
Compressed Audio DTS, Dolby Digital, DTS-HD Master Audio™, Dolby TrueHD
Operating Temperature 0˚C–70˚C
Operating Humidity 10%–85% RH (no condensation)
Storage Temperature -10˚C– 80˚C
Storage Humidity 5%–90% RH (no condensation)
Dimensions 8.2x6 .1x1.5 c m
Weight 0.091 kg
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
4K HDMI™ Switch, 3-Port
Bidirectional 3-to-1 or 1-to-3
Pigtail Type
Art. No.: HD0040
Package Contents:
» 1x 4K HDMI Switch
» 1x USB Charging Cable
» 1x User Manual
a
b
c
d
HDMI input/output 1-3 ports
a
Select button to choose between the input and output
b
source/display
USB power input
c
HDMI input/output 1-3 ports LED
d
4K
30Hz
High
Speed
3D
Support
HDCP
Support
Package Information:
» Packing Dimension: 190x145x60 mm
» Packing Weight: 0.234 kg
» Carton Dimension: 505x235x340 mm
» Carton Q‘ty: 15 pcs
» Carton Weight: 4.1 kg
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
