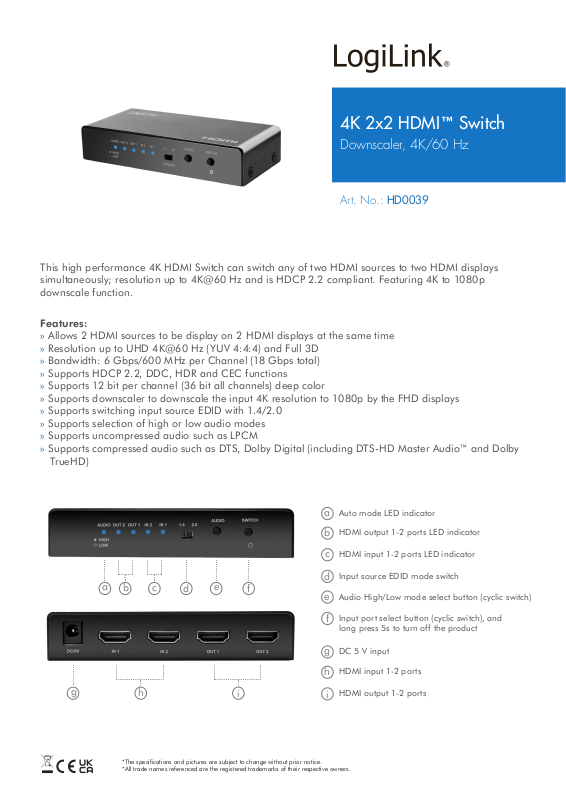

4K 2x2 HDMI™ Switch
Downscaler, 4K/60 Hz
Art. No.: HD0039
This high performance 4K HDMI Switch can switch any of two HDMI sources to two HDMI displays
simultaneously; resolution up to 4K@60 Hz and is HDCP 2.2 compliant. Featuring 4K to 1080p
downscale function.
Features:
» Allows 2 HDMI sources to be display on 2 HDMI displays at the same time
» Resolution up to UHD 4K@60 Hz (YUV 4:4:4) and Full 3D
» Bandwidth: 6 Gbps/600 MHz per Channel (18 Gbps total)
» Supports HDCP 2.2, DDC, HDR and CEC functions
» Supports 12 bit per channel (36 bit all channels) deep color
» Supports downscaler to downscale the input 4K resolution to 1080p by the FHD displays
» Supports switching input source EDID with 1.4/2.0
» Supports selection of high or low audio modes
» Supports uncompressed audio such as LPCM
» Supports compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby
True H D)
Auto mode LED indicator
a
HDMI output 1-2 ports LED indicator
b
HDMI input 1-2 ports LED indicator
c
Input source EDID mode switch
d
a
b
g
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
c
d
h
e
f
Audio High/Low mode select button (cyclic switch)
e
Input port select button (cyclic switch), and
f
long press 5s to turn off the product
DC 5 V input
g
HDMI input 1-2 ports
h
i
HDMI output 1-2 ports
i
Power Adapter
5 V/1 A
TV
Game Console
DVD player
TV
*2 outputs display
same contents
Specifications:
Input Ports 2x HDMI-A female
Output Port 1x HDMI-A female
HDMI Version 2.0
HDCP Version 2.2
HDMI CEC Yes
HDMI HDR Yes
480i@60 Hz, 576i@50 Hz, 1080i@50/60 Hz, 480p@60 Hz,
Output Resolution
Video Bandwith 6 Gbps/600 MHz
3D Supporting Yes
Input and output DDC signal Yes
TMDS (Transition Minimized
Differential Signaling)
LED Indication Yes
576p@50 Hz, 720p@50/60 Hz, 1080p@24/25/30/50/60 Hz,
4K@24/25/30 Hz, 4K@50/60 Hz 4:4:4
Yes
Color Depth 6 bit, 8 bit, 10 bit and 12 bit
8 Bit/10 Bit Encoding Yes
Chassis Material Metal
Power By 5 V/1 A (5 W max.)
Uncompressed Audio L P C M 7.1
Compressed Audio DTS, Dolby Digital, DTS-HD Master Audio™, Dolby TrueHD
Operating Temperature 0–70˚C
Operating Humidity 10–85% RH (no condensation)
Storage Temperature -10 – 80˚C
Storage Humidity 5–90% RH (no condensation)
Dimensions 11,6 x 5,2 x 2,3 cm
Weight 0,15 8 kg
Color Black
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
