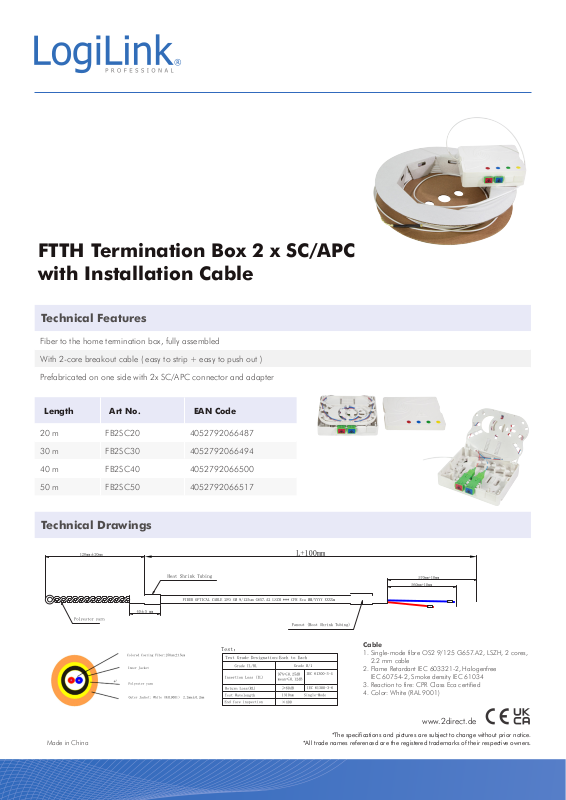

FTTH Termination Box 2 x SC/APC
with Installation Cable
Technical Features
Fiber to the home termination box, fully assembled
With 2-core breakout cable ( easy to strip + easy to push out )
Prefabricated on one side with 2x SC/APC connector and adapter
Length Art No. EAN Code
20 m FB2SC20 4052792066487
30 m FB2SC30 4052792066494
40 m FB2SC40 4052792066500
50 m FB2SC50 4052792066517
Technical Drawings
Made in China
Cable
1. Single-mode fibre OS2 9/125 G657.A2, LSZH, 2 cores,
2.2 mm cable
2. Flame Retardant IEC 603321-2, Halogenfree
IEC 60754-2, Smoke density IEC 61034
3. Reaction to fire: CPR Class Eca certified
4. Color: White (RAL 9001)
www.2direct.de
*All trade names referenced are the registered trademarks of their respective owners.
*The specifications and pictures are subject to change without prior notice.
Package Content
Accessory
Screw ST4.0x25 mm for 2 sets
2.2x80 mm cable tie for 4 pcs
Connector
2x SC-Simplex Connector APC 8°, with pigtail, green color
Adapter
2x SC-Simplex Adapter without flange, APC 8°, Grade B/1,
green color
Housing
1. Box with swivelling splice tray including crimping splice holder
2. Material: ABS+PC (UL94-V0), for indoor use (IP20)
3. Suitable for wall mounting or Din-rail mounting (35 mm)
4. Color: White (RAL 9001)
1x FTTH Termination Box 2 x SC/APC
Packaging Information
Cable Length Packing Dimension Packing Weight Carton Q‘ty Packing Dimension Packing Weight
20 m
30 m
40 m
50 m
Made in China
250 x 235 x 50 mm 0,28 kg
250 x 235 x 50 mm 0,33 kg
250 x 235 x 50 mm 0,37 kg
250 x 235 x 50 mm 0,42 kg
10 pcs
10 pcs
10 pcs
10 pcs
*All trade names referenced are the registered trademarks of their respective owners.
480 x 265 x 260 mm 3,54 kg
480 x 265 x 260 mm 4,04 kg
480 x 265 x 260 mm 4,44 kg
480 x 265 x 260 mm 4,94 kg
www.2direct.de
*The specifications and pictures are subject to change without prior notice.
