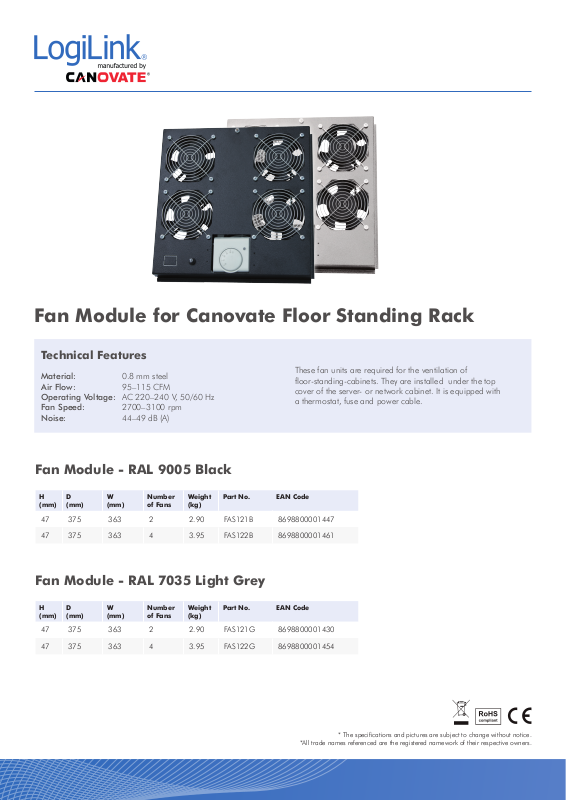

Fan Module for Canovate Floor Standing Rack
Technical Features
Material: 0.8 mm steel
Air Flow: 95–115 CFM
Operating Voltage: AC 220–240 V, 50/60 Hz
Fan Speed: 2700–3100 rpm
Noise: 44–49 dB (A)
Fan Module - RAL 9005 Black
H
D
(mm)
(mm)
47 375 363 2 2.90 FAS121B 8698800001447
47 375 363 4 3.95 FAS122B 8698800001461
W
(mm)
Number
of Fans
Weight
(kg)
Part No. EAN Code
Fan Module - RAL 7035 Light Grey
These fan units are required for the ventilation of
floor-standing-cabinets. They are installed under the top
cover of the server- or network cabinet. It is equipped with
a thermostat, fuse and power cable.
H
D
(mm)
(mm)
47 375 363 2 2.90 FAS121G 8698800001430
47 375 363 4 3.95 FAS122G 8698800001454
W
(mm)
Number
of Fans
Weight
(kg)
Part No. EAN Code
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
373
411,50
49,30
GENEL TOLERANSLAR
DIN 7168-m
BOLZEN YSB M4x15MAVI ZINK DIN 7985 2
484 05316 5010 M5X10 YSB SCHRAUBEN 20
484 10110 1640 NUT AK M4 BLAU ZINK DIN 934 2
484 10110 1650 NUT AK M5 BLAU ZINK DIN 934 2
484 10515 1243 FLACHSTAHL M4 STAHL BLAU CHROM 2
484 10515 1250 ROTIEREND FLACH M5 BLAU ZINK 4
484 16020 ZPAC C14 STECKER 1
484 20010 CBED PVC TÜR LOCH GROM 1.5 * 20 * 25 MM 1
484 21010 SACR GEBLÄSE 220-240V 15W AC 50/60 Hz 0.12A 85cfm 42dB 4
484 21010 SDEA 120x120 Lüfter Schutzgitter 4
485 63150 0200 Glassicherungshalter 1
001269P00 4 LI FAN MONTAGEFILTERBLATT 1
001270T00 4 FILTERFILTER 1
OLCU
TOL.
>0-6
±0.1
>6-30
>30-120
±0.2
±0.3
040064S02 S70 FAN INSTRUMENT ASSEMBLY 2
48420010NACU TERMOSTAT 1
48743113AAAF KABEL 3 * 1,5 TTR (BLACK MULTI PRESS WIRELESS) L = 2,5 Meter 1
Y13 0000X MBAA 4LU GEBLÄSESPATRONE 1
484100316025 KABELVERPACKUNG M6 * 2.5 ISOLIERBARE FLAMMABLE 1
484100372262 KABELADAPTERTRÄGER 19 * 19 MM NAILLON 1
484100511011 KABELANSCHLUSS 3.6 * 141 MM WEISS 1
487601040409 M. BOX UNBOXED 375x525x70 mm (6x Lüfter) 1
48421010SDDB CAM SIGORTA 4 AMP 1
48421010SDGA KABEL 2X0.75MM 2 LI YASSI CORDON 0.3
48740540APM MACRON MIT 5 MM HEIZUNG K-53013 0.04
48421011NDLV 4 LI FAN VERKABELUNG (KABEL + TERMINAL + HEIZMASCHINE) 1
484095103015 PEM S M3-1 STAHL BLAU ZINK
>120-315
±0.5
>315-1000
±0.8
>1000-2000
±1.2
