TM

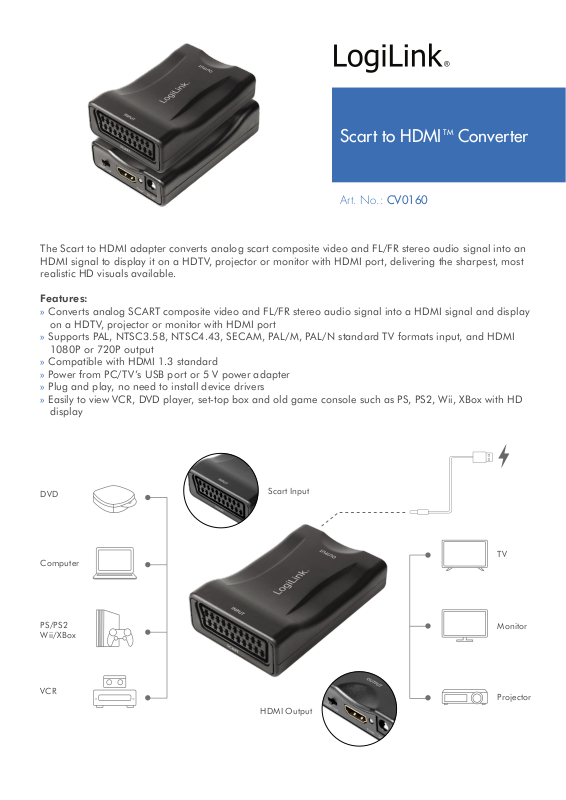

Scart to HDMI Converter
®
Art. No.: CV0160
The Scart to HDMI adapter converts analog scart composite video and FL/FR stereo audio signal into an
HDMI signal to display it on a HDTV, projector or monitor with HDMI port, delivering the sharpest, most
realistic HD visuals available.
Features:
» Converts analog SCART composite video and FL/FR stereo audio signal into a HDMI signal and display
on a HDTV, projector or monitor with HDMI port
» Supports PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input, and HDMI
1080P or 720P output
» Compatible with HDMI 1.3 standard
» Power from PC/TV’s USB port or 5 V power adapter
» Plug and play, no need to install device drivers
» Easily to view VCR, DVD player, set-top box and old game console such as PS, PS2, Wii, XBox with HD
display
DVD
Computer
PS/PS2
Wii/XBox
VCR
Scart Input
TV
Monitor
Projector
HDMI Output
Scart to HDMI Converter
Art. No.: CV0160
Specifications:
Input Connector Scart Female
Output Connector HDMI-A/F
HDMI Version HDMI 1. 3
HDCP Version HDCP 1.0/1.1/1.2/1.2a/1.4
SCART input Format PAL, NTSC3.58. NTSC4.43, SECAM, PAL/M, PAL/N
Output Resolution Up to 1080P
Power by DC 5 V/1 A
TM
®
Operating Temperature
Operating Humidity 10–90 %RH (non-condensing)
Color Black
Cable Length 78 cm
Housing Material ABS
Dimensions 8,89 x 5,85 x 2,5 cm
Weight 47,5 g
-10– 55 ºC
Package Contents:
» SCART to HDMI Adapter x1
» USB Power Cable x1
» User Manual x1
Package Information:
» Packing Dimension: 119 x 140 x 25 mm
» Packing Weight: 0,075 kg
» Carton Dimension: 450 x 340 x 280mm
» Carton Q‘ty: 100 pcs
» Carton Weight: 8,05 kg
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
