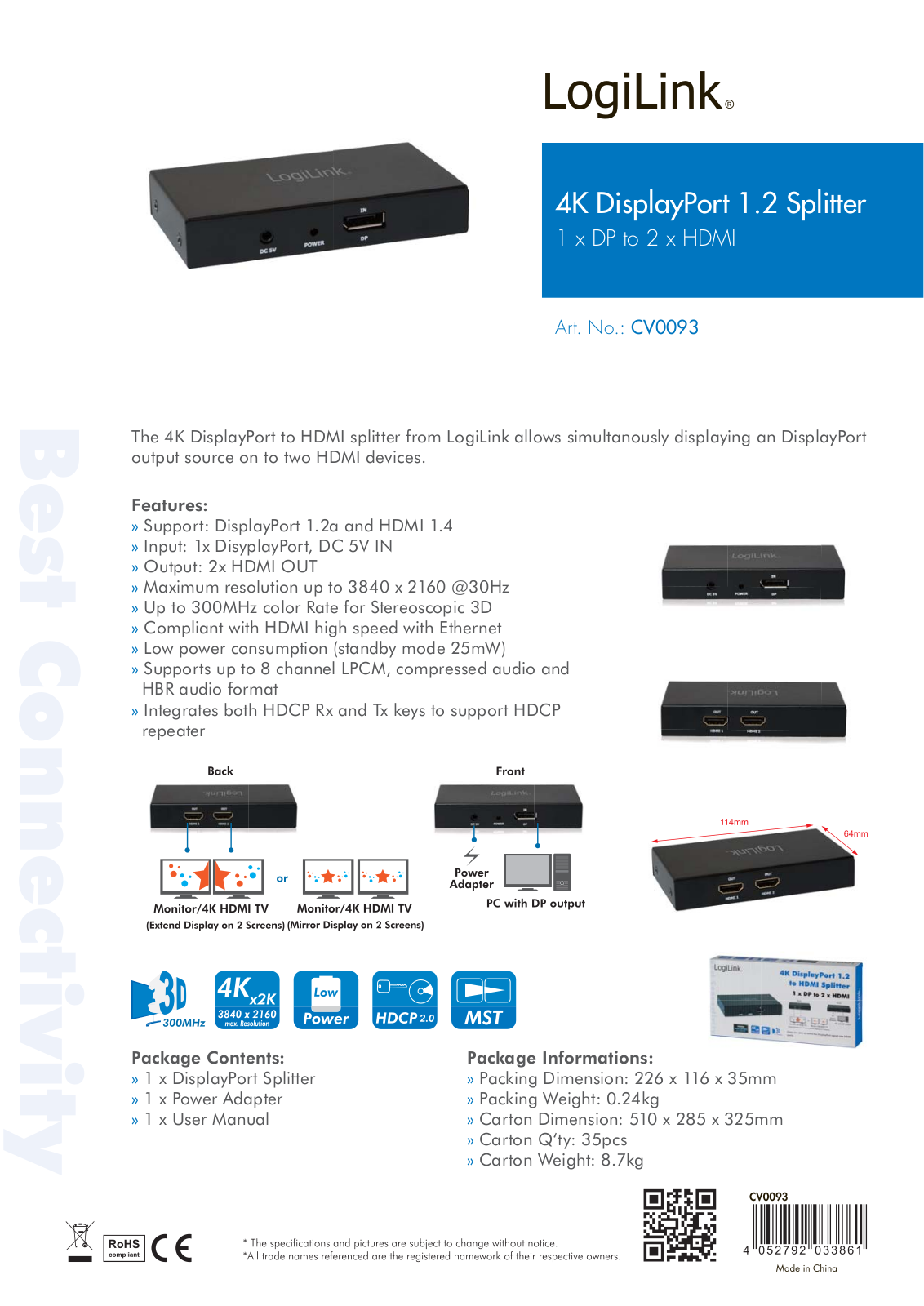

LOGILINK CV0093 Datasheet

4K DisplayPort 1.2 Splitter
1 x DP to 2 x HDMI
Art. No.: CV0093
Best Connectivity
The 4K DisplayPort to HDMI splitter from LogiLink allows simultanously displaying an DisplayPort output source on to two HDMI devices.
Features:
» Support: DisplayPort 1.2a and HDMI 1.4 » Input: 1x DisyplayPort, DC 5V IN » Output: 2x HDMI OUT » Maximum resolution up to 3840 x 2160 @30Hz » Up to 300MHz color Rate for Stereoscopic 3D » Compliant with HDMI high speed with Ethernet » Low power consumption (standby mode 25mW) » Supports up to 8 channel LPCM, compressed audio and
HBR audio format
» Integrates both HDCP Rx and Tx keys to support HDCP
repeater
Package Contents:
» 1 x DisplayPort Splitter » 1 x Power Adapter » 1 x User Manual
Package Informations:
» Packing Dimension: 226 x 116 x 35mm » Packing Weight: 0.24kg » Carton Dimension: 510 x 285 x 325mm » Carton Q‘ty: 35pcs » Carton Weight: 8.7kg
