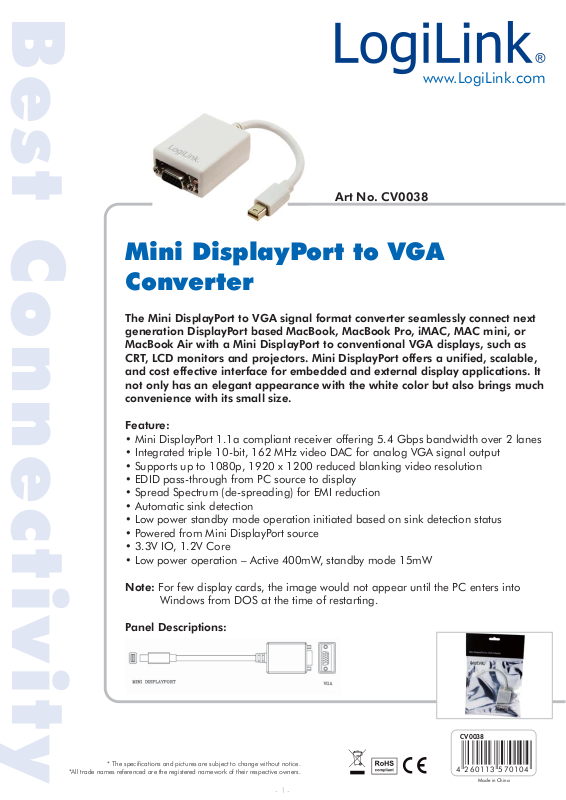

Art No. CV0038
com
Mini DisplayPort to VGA
Converter
The Mini DisplayPort to VGA signal format converter seamlessly connect next
generation DisplayPort based MacBook, MacBook Pro, iMAC, MAC mini, or
MacBook Air with a Mini DisplayPort to conventional VGA displays, such as
CRT, LCD monitors and projectors. Mini DisplayPort offers a unified, scalable,
and cost effective interface for embedded and external display applications. It
not only has an elegant appearance with the white color but also brings much
convenience with its small size.
Feature:
• Mini DisplayPort 1.1a compliant receiver offering 5.4 Gbps bandwidth over 2 lanes
• Integrated triple 10-bit, 162 MHz video DAC for analog VGA signal output
• Supports up to 1080p, 1920 x 1200 reduced blanking video resolution
• EDID pass-through from PC source to display
• Spread Spectrum (de-spreading) for EMI reduction
• Automatic sink detection
• Low power standby mode operation initiated based on sink detection status
• Powered from Mini DisplayPort source
• 3.3V IO, 1.2V Core
• Low power operation – Active 400mW, standby mode 15mW
Note: For few display cards, the image would not appear until the PC enters into
Windows from DOS at the time of restarting.
Panel Descriptions:
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
- 1 -
CV0038
4 260113 570104
Made in China
Best Connectivit
y
www.LogiLink.
Art No. CV0038
Mini DisplayPort to VGA
Converter
Specification:
Signal Inputs/Output
Maximum Single Link Range 1920x1080P
Operating Frequency
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 162MHz
Resolutions(HDTV) 480i, 576i,1080i
Environmental
Operating Temperature 0ºC to +70ºC
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10ºC to +80ºC
Storage Humidity 5% to 90 % RH (no condensation)
Power Requirement No external power needed
com
Packaging Information:
• Packing Dimension: 162x230x2 mm
• Packing Weight: 0.05kg
• Carton Dimension: 570x480x260 mm
• Carton Q'ty: 90pcs
• Carton Weight: 6.3kgs
