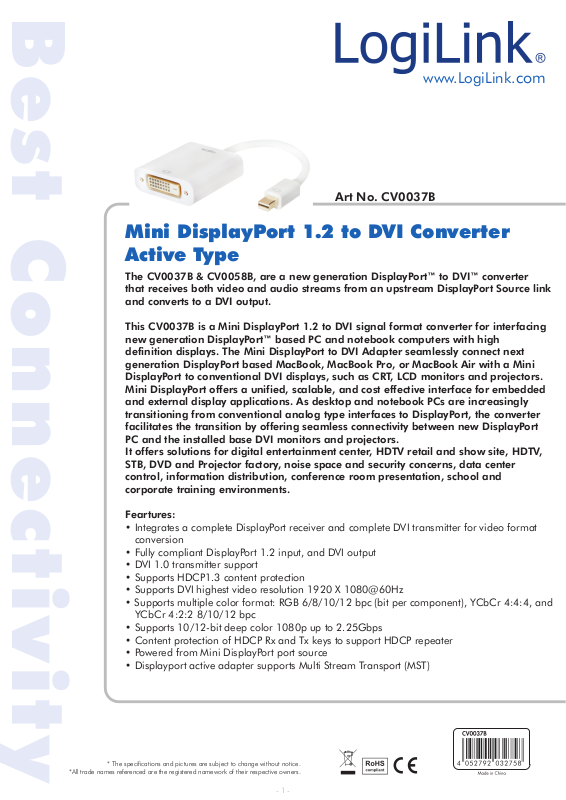

Best Connectivity
www.LogiLink.
Art No. CV0037B
com
Mini DisplayPort 1.2 to DVI Converter
Active Type
The CV0037B & CV0058B, are a new generation DisplayPort™ to DVI™ converter
that receives both video and audio streams from an upstream DisplayPort Source link
and converts to a DVI output.
This CV0037B is a Mini DisplayPort 1.2 to DVI signal format converter for interfacing
new generation DisplayPort™ based PC and notebook computers with high
definition displays. The Mini DisplayPort to DVI Adapter seamlessly connect next
generation DisplayPort based MacBook, MacBook Pro, or MacBook Air with a Mini
DisplayPort to conventional DVI displays, such as CRT, LCD monitors and projectors.
Mini DisplayPort offers a unified, scalable, and cost effective interface for embedded
and external display applications. As desktop and notebook PCs are increasingly
transitioning from conventional analog type interfaces to DisplayPort, the converter
facilitates the transition by offering seamless connectivity between new DisplayPort
PC and the installed base DVI monitors and projectors.
It offers solutions for digital entertainment center, HDTV retail and show site, HDTV,
STB, DVD and Projector factory, noise space and security concerns, data center
control, information distribution, conference room presentation, school and
corporate training environments.
Feartures:
• Integrates a complete DisplayPort receiver and complete DVI transmitter for video format
conversion
• Fully compliant DisplayPort 1.2 input, and DVI output
• DVI 1.0 transmitter support
• Supports HDCP1.3 content protection
• Supports DVI highest video resolution 1920 X 1080@60Hz
• Supports multiple color format: RGB 6/8/10/12 bpc (bit per component), YCbCr 4:4:4, and
YCbCr 4:2:2 8/10/12 bpc
• Supports 10/12-bit deep color 1080p up to 2.25Gbps
• Content protection of HDCP Rx and Tx keys to support HDCP repeater
• Powered from Mini DisplayPort port source
• Displayport active adapter supports Multi Stream Transport (MST)
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
- 1 -
Best Connectivity
www.LogiLink.
Art No. CV0037B
Mini DisplayPort 1.2 to DVI Converter
Active Type
Specification:
Signal Input/Output
Input Video Signal Mini DisplayPort
Maximum Single Link Range 1920x1080@60Hz
Output Video DVI
Input Connector Mini DisplayPort Male 20pin
Output Connector DVI Female (24+1)
Operating Frequency
Vertical Frequency Range
Video Amplifier Bandwidth
Resolutions (HDTV)
No 3D Mode Up to 1920x1080@60Hz
3D Mode Non-support
Mechanical
Weight (Net) 14g
Product dimension 175 x 43 x 15mm
Cable length 15cm
Environmental
Operating Temperature 0 °C to +70 °C
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10 °C to +80 °C
Storage Humidity 5% to 90 % RH (no condensation)
Power Requirement
External Power Supply No external power needed
Power consumption (Max) 1W
50/60Hz
1.62Gbps/2.7Gbps
com
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
- 2 -
