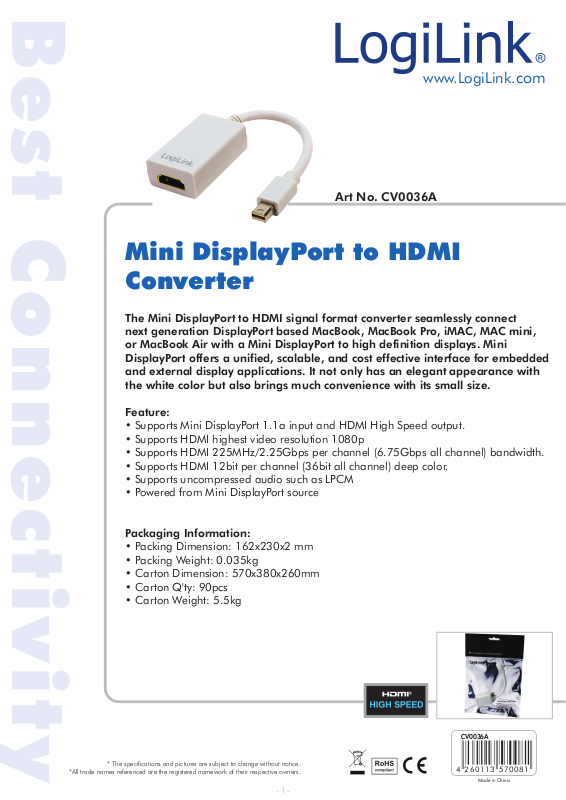

Best Connectivity
www.LogiLink.
Art No. CV0036A
com
Mini DisplayPort to HDMI
Converter
The Mini DisplayPort to HDMI signal format converter seamlessly connect
next generation DisplayPort based MacBook, MacBook Pro, iMAC, MAC mini,
or MacBook Air with a Mini DisplayPort to high definition displays. Mini
DisplayPort offers a unified, scalable, and cost effective interface for embedded
and external display applications. It not only has an elegant appearance with
the white color but also brings much convenience with its small size.
Feature:
• Supports Mini DisplayPort 1.1a input and HDMI High Speed output.
• Supports HDMI highest video resolution 1080p
• Supports HDMI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
• Supports HDMI 12bit per channel (36bit all channel) deep color.
• Supports uncompressed audio such as LPCM
• Powered from Mini DisplayPort source
Packaging Information:
• Packing Dimension: 162x230x2 mm
• Packing Weight: 0.035kg
• Carton Dimension: 570x380x260mm
• Carton Q'ty: 90pcs
• Carton Weight: 5.5kg
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
- 1 -
CV0036A
4260113570081
Made in China
Best Connectivity
www.LogiLink.
Art No. CV0036A
Mini DisplayPort to HDMI
Converter
Specification:
Signal Inputs/Output
Input Video Signal 5 Volts p-p (TTL)
Maximum Single Link Range 1920x1080P
Output Video HDMI High Speed
Input/Output Connector Input: Mini DisplayPort Male 20pin
Output: HDMI Female Type A 19pin
Operating Frequency
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 2.25Gbps/225MHz
Resolutions(HDTV)
Interlaced(50&60Hz) 480i, 576i, 1080i
Progressive(50&60Hz) 480p, 576p, 720p,1080p
Environmental
Operating Temperature 0ºC to +70ºC
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10ºC to +80ºC
Storage Humidity 5% to 90 % RH (no condensation)
Power Requirement
External Power Supply No external power needed
Power consumption (Max) 3W
com
Panel Descriptions:
* The specifications and pictures are subject to change without notice.
*All trade names referenced are the registered namework of their respective owners.
- 2 -
CV0036
4260113570081
Made in China
