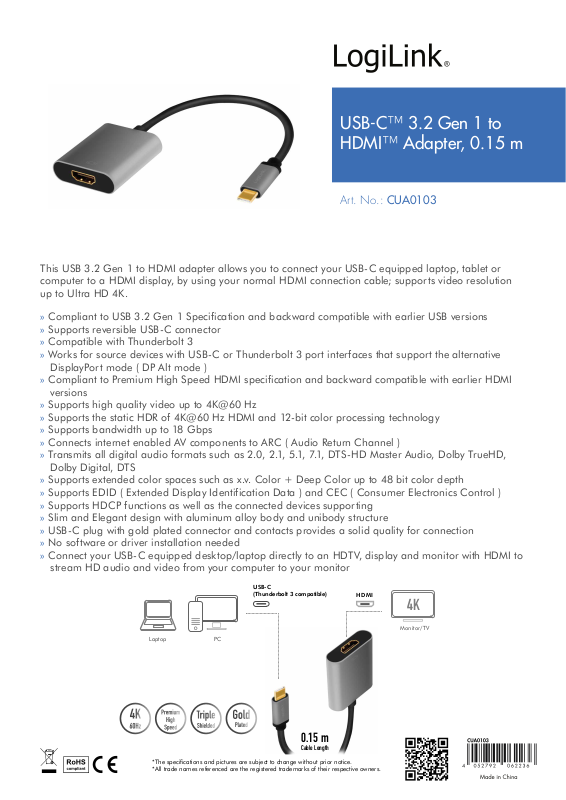

USB-C™ 3.2 Gen 1 to
HDMI™ Adapter, 0.15 m
Art. No.: CUA0103
This USB 3.2 Gen 1 to HDMI adapter allows you to connect your USB-C equipped laptop, tablet or
computer to a HDMI display, by using your normal HDMI connection cable; supports video resolution
up to Ultra HD 4K.
» Compliant to USB 3.2 Gen 1 Specification and backward compatible with earlier USB versions
» Supports reversible USB-C connector
» Compatible with Thunderbolt 3
» Works for source devices with USB-C or Thunderbolt 3 port interfaces that support the alternative
DisplayPort mode ( DP Alt mode )
» Compliant to Premium High Speed HDMI specification and backward compatible with earlier HDMI
versions
» Supports high quality video up to 4K@60 Hz
» Supports the static HDR of 4K@60 Hz HDMI and 12-bit color processing technology
» Supports bandwidth up to 18 Gbps
» Connects internet enabled AV components to ARC ( Audio Return Channel )
» Transmits all digital audio formats such as 2.0, 2.1, 5.1, 7.1, DTS-HD Master Audio, Dolby TrueHD,
Dolby Digital, DTS
» Supports extended color spaces such as x.v. Color + Deep Color up to 48 bit color depth
» Supports EDID ( Extended Display Identification Data ) and CEC ( Consumer Electronics Control )
» Supports HDCP functions as well as the connected devices supporting
» Slim and Elegant design with aluminum alloy body and unibody structure
» USB-C plug with gold plated connector and contacts provides a solid quality for connection
» No software or driver installation needed
» Connect your USB-C equipped desktop/laptop directly to an HDTV, display and monitor with HDMI to
stream HD audio and video from your computer to your monitor
USB-C
(Thunderbolt 3 compatible)
Laptop PC
4K
60Hz
Premium
High
Speed
Triple
Shielded
Gold
Plated
0.15 m
LengthCable
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
HDMI
4K
Monitor/TV
Specifications:
Connection 1 USB-C 3.2 Gen 1, male
Connection 2 HDMI-A 19pin, female
Connector Material Gold-Plated
Max. Resolution 4K@60 Hz
Cable Length 0.15 m
Color Black/Grey
USB-C™ 3.2 Gen 1 to
HDMI™ Adapter, 0.15 m
Art. No.: CUA0103
Package Content:
» 1x USB-C 3.2 Gen 1 to HDMI Adapter
Package Information:
» Packing Dimension: 193x177x14 mm
» Packing Weight: 0.035 kg
» Carton Dimension: 420x380x220 mm
» Carton Q‘ty: 140 pcs
» Carton Weight: 6.3 kg
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
