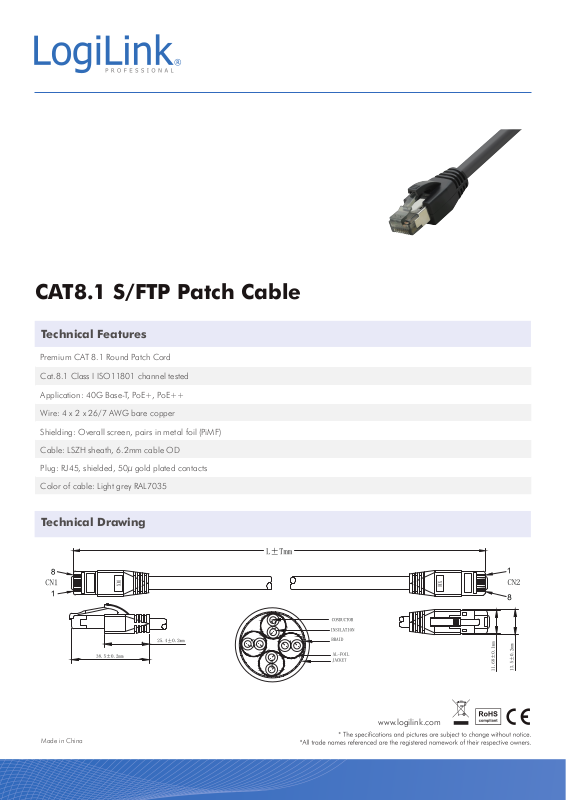

CAT8.1 S/FTP Patch Cable
Technical Features
Premium CAT 8.1 Round Patch Cord
Cat.8.1 Class I ISO11801 channel tested
Application: 40G Base-T, PoE+, PoE++
Wire: 4 x 2 x 26/7 AWG bare copper
Shielding: Overall screen, pairs in metal foil (PiMF)
Cable: LSZH sheath, 6.2mm cable OD
Plug: RJ45, shielded, 50µ gold plated contacts
Color of cable: Light grey RAL7035
Technical Drawing
Made in China
www.logilink.com
Art-No. Cable Length EAN Code
CQ8022S 0.5m 4052792051926
CQ8032S 1m 4052792051933
CQ8042S 1.5m 4052792051940
CQ8052S 2m 4052792051957
CQ8062S 3m 4052792051964
CQ8072S 5m 4052792051971
CQ8092S 10m 4052792051988
CQ8102S 15m 4052792052145
Package Content
CAT8.1 S/FTP Patch Cable x 1
Packaging Information
Art-No. Packing Dimension Packing Weight Carton Dimension Carton Q‘ty Carton Weight
CQ8022S 180 x 130 x 15mm 0.0340kg 400 x 300 x 300mm 200pcs 7.6kg
CQ8032S 180 x 180 x 11mm 0.0544kg 400 x 300 x 300mm 140pcs 8.4kg
CQ8042S 195 x 195 x 15mm 0.0745kg 400 x 300 x 300mm 100pcs 8.1kg
CQ8052S 185 x 185 x 16mm 0.0930kg 400 x 300 x 300mm 80pcs 8.2kg
CQ8062S 185 x 185 x 20mm 0.1320kg 400 x 300 x 300mm 60pcs 8.6kg
CQ8072S 185 x 185 x 23mm 0.2104kg 400 x 300 x 300mm 40pcs 9.1kg
CQ8092S 190 x 190 x 40mm 0.3954kg 400 x 300 x 300mm 25pcs 11.2kg
CQ8102S 220 x 220 x 45mm 0.6010kg 400 x 300 x 300mm 18pcs 11.5kg
Made in China
www.logilink.com
