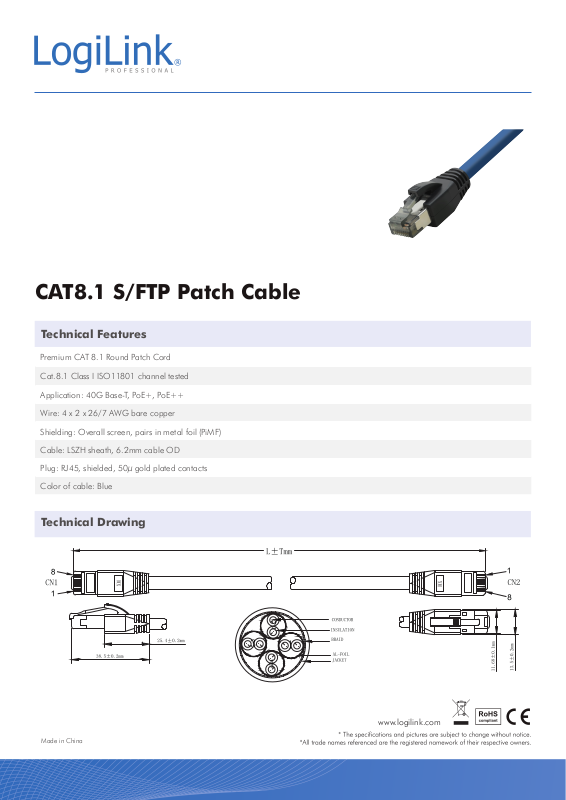

CAT8.1 S/FTP Patch Cable
Technical Features
Premium CAT 8.1 Round Patch Cord
Cat.8.1 Class I ISO11801 channel tested
Application: 40G Base-T, PoE+, PoE++
Wire: 4 x 2 x 26/7 AWG bare copper
Shielding: Overall screen, pairs in metal foil (PiMF)
Cable: LSZH sheath, 6.2mm cable OD
Plug: RJ45, shielded, 50µ gold plated contacts
Color of cable: Blue
Technical Drawing
Made in China
www.logilink.com
Art-No. Cable Length EAN Code
CQ8026S 0.5m 4052792051995
CQ8036S 1m 4052792052008
CQ8046S 1.5m 4052792052015
CQ8056S 2m 4052792052022
CQ8066S 3m 4052792052039
CQ8076S 5m 4052792052046
CQ8096S 10m 4052792052053
CQ8106S 15m 4052792052169
Package Content
CAT8.1 S/FTP Patch Cable x 1
Packaging Information
Art-No. Packing Dimension Packing Weight Carton Dimension Carton Q‘ty Carton Weight
CQ8026S 180 x 130 x 15mm 0.0340kg 400 x 300 x 300mm 200pcs 7.6kg
CQ8036S 180 x 180 x 11mm 0.0544kg 400 x 300 x 300mm 140pcs 8.4kg
CQ8046S 195 x 195 x 15mm 0.0745kg 400 x 300 x 300mm 100pcs 8.1kg
CQ8056S 185 x 185 x 16mm 0.0930kg 400 x 300 x 300mm 80pcs 8.2kg
CQ8066S 185 x 185 x 20mm 0.1320kg 400 x 300 x 300mm 60pcs 8.6kg
CQ8076S 185 x 185 x 23mm 0.2104kg 400 x 300 x 300mm 40pcs 9.1kg
CQ8096S 190 x 190 x 40mm 0.3954kg 400 x 300 x 300mm 25pcs 11.2kg
CQ8106S 220 x 220 x 45mm 0.6010kg 400 x 300 x 300mm 18pcs 11.5kg
Made in China
www.logilink.com
